Part Disassembly and Replacement
Part Disassembly and Replacement
7
LGE Internal Use Only
Copyright © 2018 - 2020 LG Electronics Inc. All rights reserved.
Only training and service purposes.
1120 LCD Front Case
• Remove the following parts in order before replacing this part.
a. Bottom Case(1010) b. Battery(1020) c. SSD(1030) d. Memory(1040) e. Speaker(1050) f. FAN & Heat Sink(1060)
g. Mainboard(1070) h. Sub Board & Cable(1080) i. Finger Print Button(1090) j. Touch Pad Cable(1100)
k. Keyboard Deck(1110)
NOTE
1

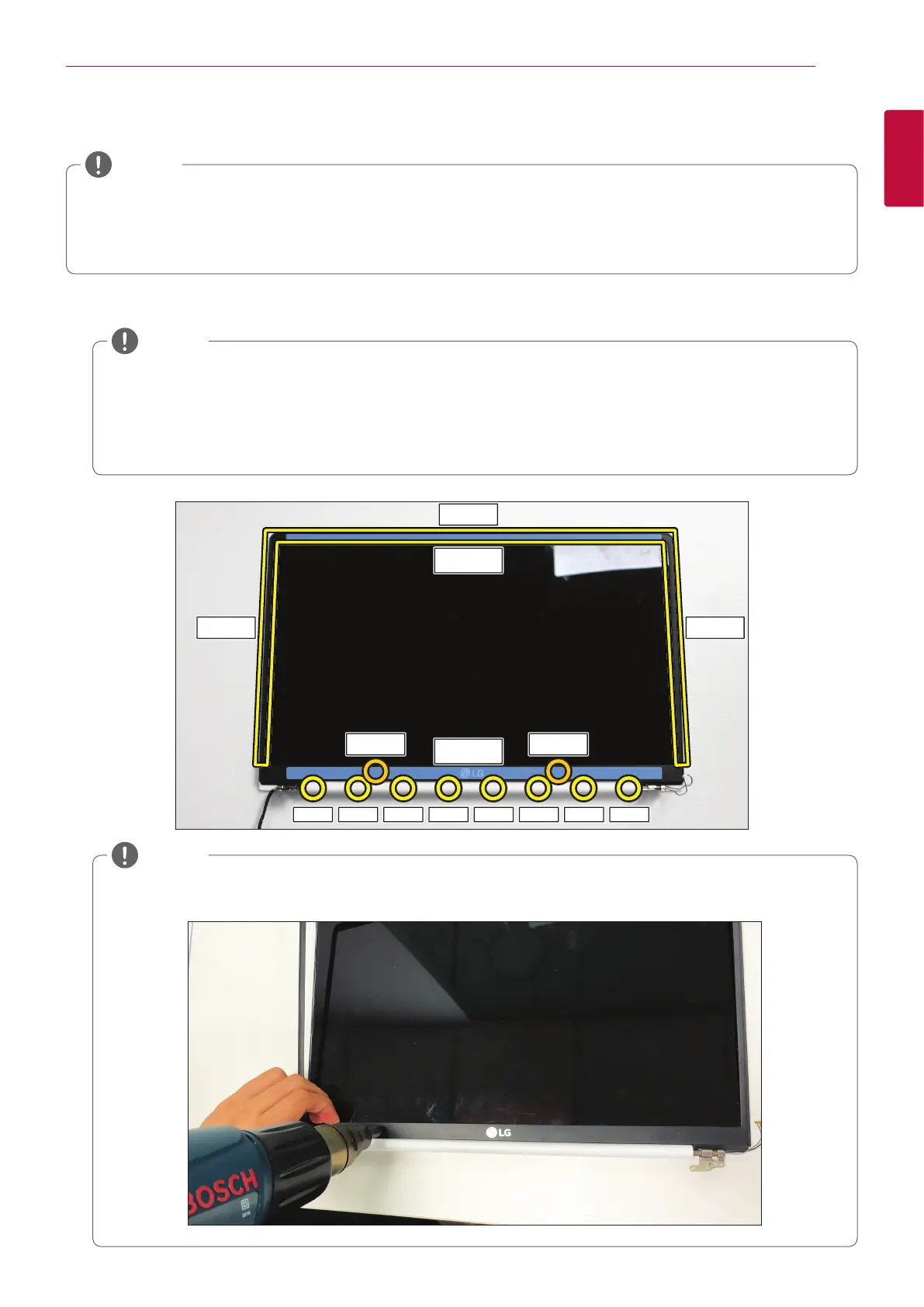

Separate the front and rear hooks from the front case.
.
• When detaching the front case, be careful of the two parts of the hooks marked with spot colors.
• Pushing the side of the front case inwards will release the hook easily.
• If you attach too much force to the front case, there is a risk of damage.
• After removing the side hook, please remove the top.
NOTE
Tape
Tape
Hook
Hook Hook Hook Hook Hook Hook Hook Hook
Hook
HookHook
Hook
• As shown in the figure below, the front case and the bottom are attached with double-sided tape. Use a hair dryer to
heat the front case so that the bottom surface is separated from the LCD surface.
NOTE
To Next Page
