LG 23MP75HM User Manual

5
ENG
ENGLISH

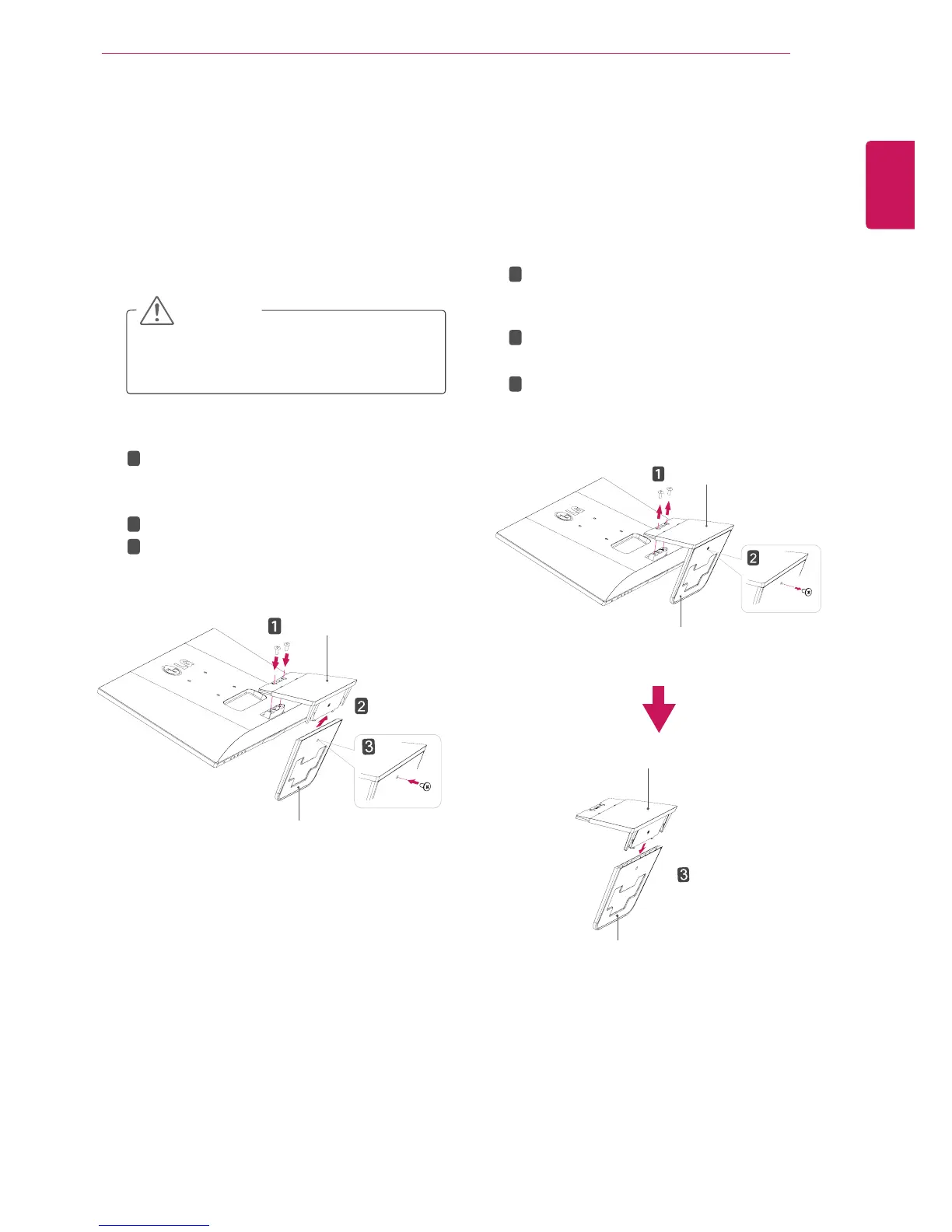

ASSEMBLING AND PREPARING
Attach the
Stand Body
to the monitor set.
(Use a screwdriver to fix two screws into back
of
Stand Body
)
Attach the
Stand Base
to
Stand Body
.
Fix one screw at the back of
Stand Base
.
Setting up the Monitor set
Attaching the Stand Base
1
Place the Monitor set with the screen side
down on a flat and cushioned surface.
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
CAUTION
2
Stand Base
Stand Body
1
2
3
Detaching the Stand Base
1
Place the Monitor set with the screen side
down on a flat and cushioned surface.
Stand Base
Stand Base
Stand Body
Stand Body
Use a screwdriver to remove the two
screws from the
Stand Body
, and then pull
it out.
Use a screwdriver to remove the one
screw.
Pull out the
Stand Base
.
1
2
3
2

LG 23MP75HM Specifications

General

3D	No
Pixel pitch	0.2652 x 0.2652 mm
Aspect ratio	16:9
Display surface	-
Display diagonal	23 \
Display technology	LED
Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
USB Type-A downstream ports quantity	0
Certification	UL(cUL)\\r TUVTYPE\\r FCCB, CE\\r EPA 6.0
Product color	Black
LED indicators	Power
Tilt angle range	5 - 20 °
Number of OSD languages	17
Panel mounting interface	75 x 75 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	21 W
Sustainability certificates	EPEAT Gold
Package depth	131 mm
Package width	620 mm
Package height	394 mm
Package weight	5510 g
Cables included	AC, VGA

Weight and Dimensions

Depth (with stand)	182 mm
Height (with stand)	423 mm
Weight (with stand)	3950 g
Depth (without stand)	73 mm
Width (without stand)	533 mm
Height (without stand)	320 mm
Weight (without stand)	3050 g
