USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
y
Your Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.

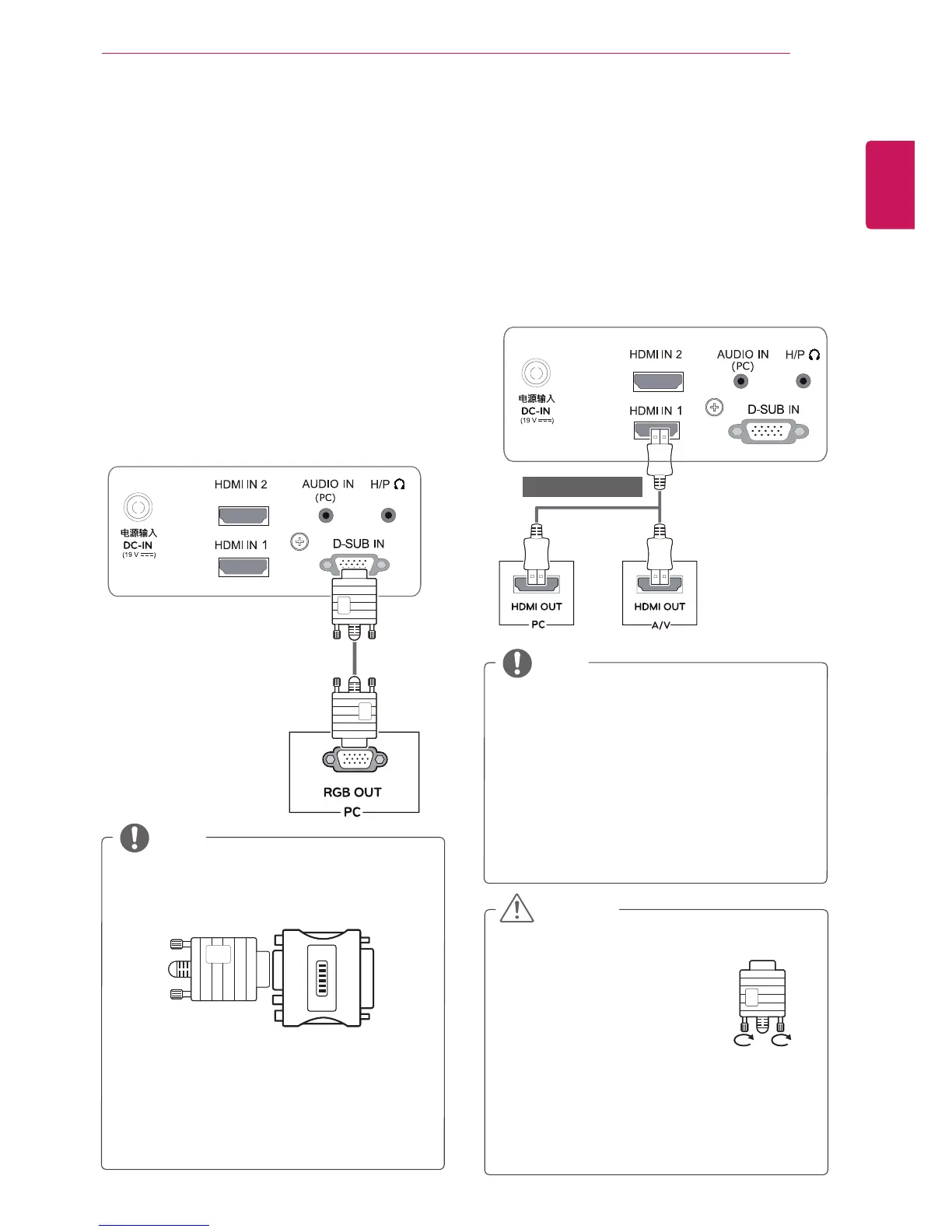

D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
y
Mac adapter
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
y
When using a D-Sub signal input cable
connector for Macintosh
y
If you use HDMI PC, it can cause compatibility
problem.
y
When you want to use two PC in our Monitor,
please connect the signal cable(D-SUB/
HDMI) respectively in Monitor set.
y
If you turn the Monitor set on while it is cold,
the screen may flicker. This is normal.
y
Some red, green, or blue spots may appear
on the screen. This is normal.
NOTE
NOTE
HDMI connection
Transmits the digital video and audio signals from
your PC or A/V to the Monitor set. Connect the PC
or A/V and the Monitor set with the HDMI cable as
shown in the following illustrations.
y
Connect the signal input cable
and tighten it by turning the
screws clockwise.
y
Do not press the screen with
your finger for a long time as
this may result in temporary distortion on
the screen.
y
Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION
(sold separately)

LG 23MP75HM Specifications

General

3D	No
Pixel pitch	0.2652 x 0.2652 mm
Aspect ratio	16:9
Display surface	-
Display diagonal	23 \
Display technology	LED
Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
USB Type-A downstream ports quantity	0
Certification	UL(cUL)\\r TUVTYPE\\r FCCB, CE\\r EPA 6.0
Product color	Black
LED indicators	Power
Tilt angle range	5 - 20 °
Number of OSD languages	17
Panel mounting interface	75 x 75 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	21 W
Sustainability certificates	EPEAT Gold
Package depth	131 mm
Package width	620 mm
Package height	394 mm
Package weight	5510 g
Cables included	AC, VGA

Weight and Dimensions

Depth (with stand)	182 mm
Height (with stand)	423 mm
Weight (with stand)	3950 g
Depth (without stand)	73 mm
Width (without stand)	533 mm
Height (without stand)	320 mm
Weight (without stand)	3050 g
