LG 24LN4100 - Composite and Audio System Connections

ENGLISH
44
MAKING CONNECTIONS

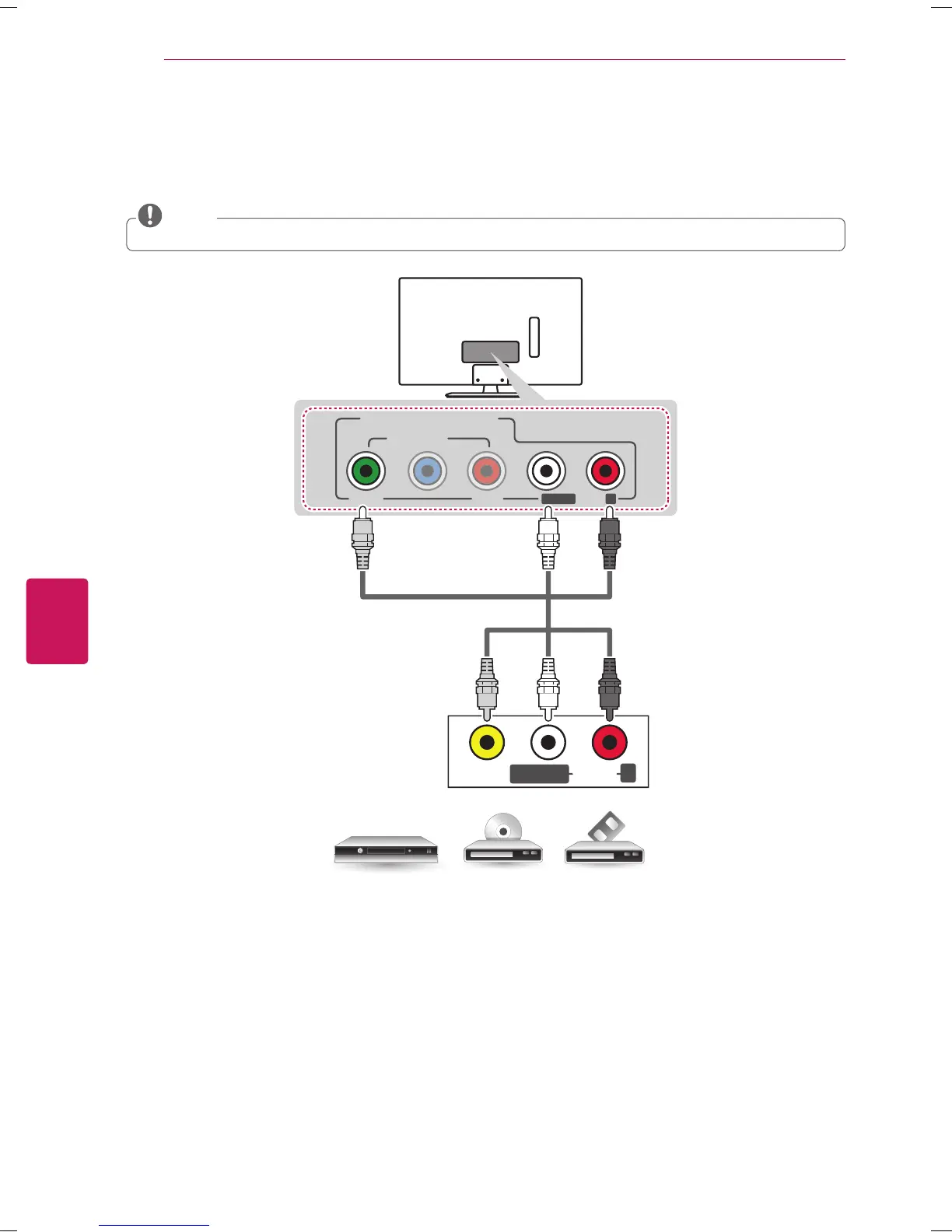

Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
the composite cable as shown in the following illustration.

If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
NOTE
VCR / DVD / Blu-Ray / HD Cable Box
VIDEO
R
AUDIO
L/MONO
(*Not Provided)
YELLOW RED WHITE
YELLOW
RED
WHITE
AV IN
COMPONENT IN
VIDEO
VIDEO
PB PR
Y
AUDIO
RL/MONO
