LG 32LX5DC User Manual

EXTERNAL EQUIPMENT SETUP
21
HD RECEIVER SETUP
EXTERNAL EQUIPMENT SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you
do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown
below.
( )
( )
( )
S-VIDEO
M.P.I.
1(DVI)
RJP
RFACE
2
HDMI/DVI IN
COMPONENT IN
DIGITAL
AUDIO
OUT
(OPTICAL)
VIDEO
AUDIO
Y L RPB PR

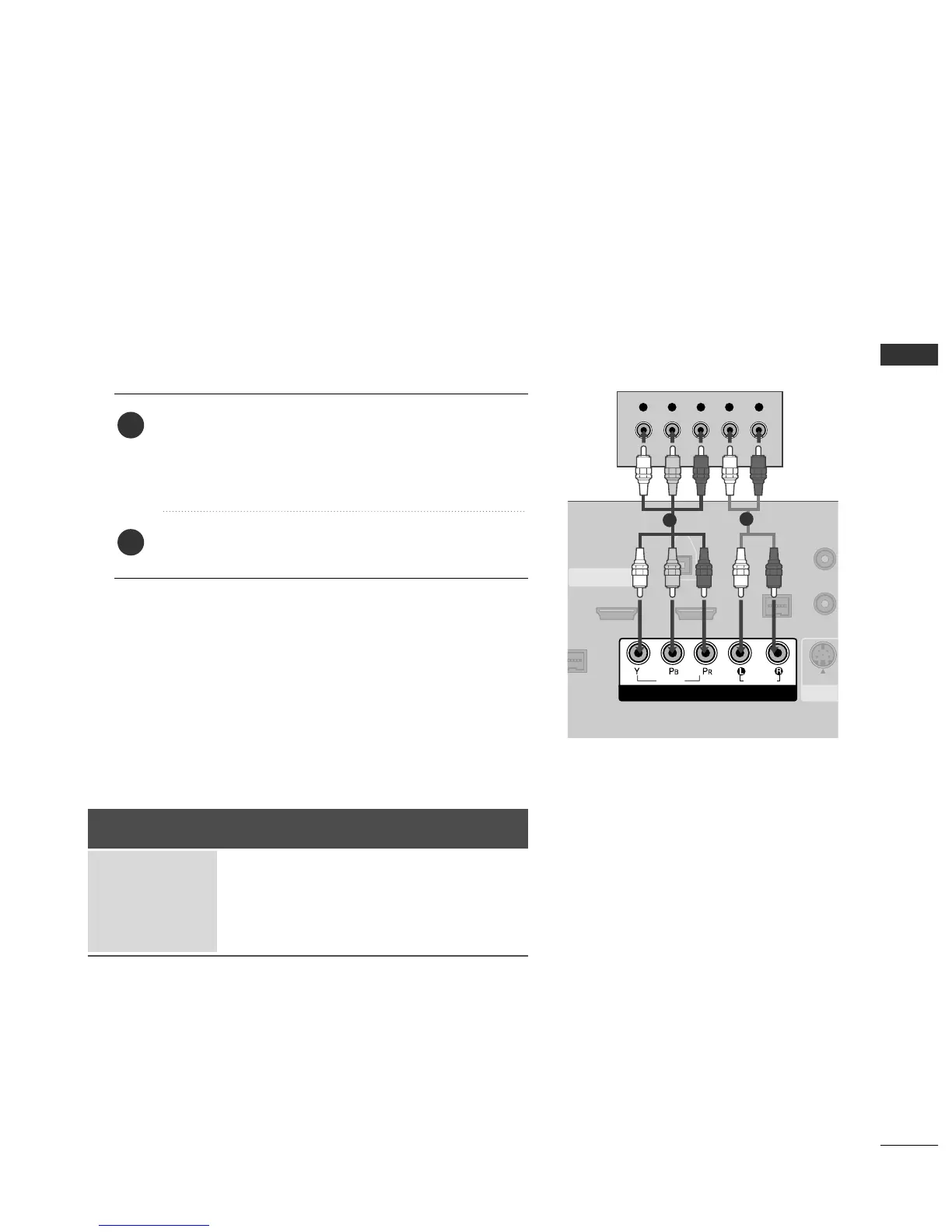

When connecting Component cable
1
2
1. How to connect
Connect the video outputs
(
Y, PB, PR
)
of the digital set
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on
the set. Match the jack colors
(Y = green, P
B = blue, and PR
= red).
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the set.
2
1
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
CCoommppoonneenntt
input source with using the
IINNPPUUTT
button on the remote control.
Signal
480i
480p
720p
108 0 i
Component
Yes
Yes
Yes
Yes
HDMI1/DVI,
HDMI2
No
Yes
Yes
Yes
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.

LG 32LX5DC Specifications

Display

display size	32"
display area	31.5"
aspect ratio	16:9
native resolution	1366×768
maximum computer resolution	1024×768
brightness	500 cd/m²
contrast ratio	1600:1
viewing angle	178°
color depth	16.7 Million
lamp life	Approx. 60, 000 Hours
response time	8 ms

Audio

audio power	30W (15W×2)

Power

power source	100~240V (50/60Hz)
power consumption	190W

Dimensions and Weight

dimensions with stand	36.3"×24.19"×11.32"
dimensions without stand	36.3"×21.47"×3.8"
packaging dimensions	38.7"×27.44"×14.02"
weight with stand	39.0 lbs.
weight without stand	30.4 lbs.
weight with packaging	46.1 lbs.
