EXTERNAL EQUIPMENT SETUP
24
EXTERNAL EQUIPMENT SETUP
DVD SETUP
When connecting Component cable
( )
( )
S-VIDEO
M.P.I.
1(DVI)
RJP
ERFACE
2
HDMI/DVI IN
COMPONENT IN
DIGITAL
AUDIO
OUT
(OPTICAL)
VIDEO
AUDIO
Y L RPB PR
( )
Component Input ports

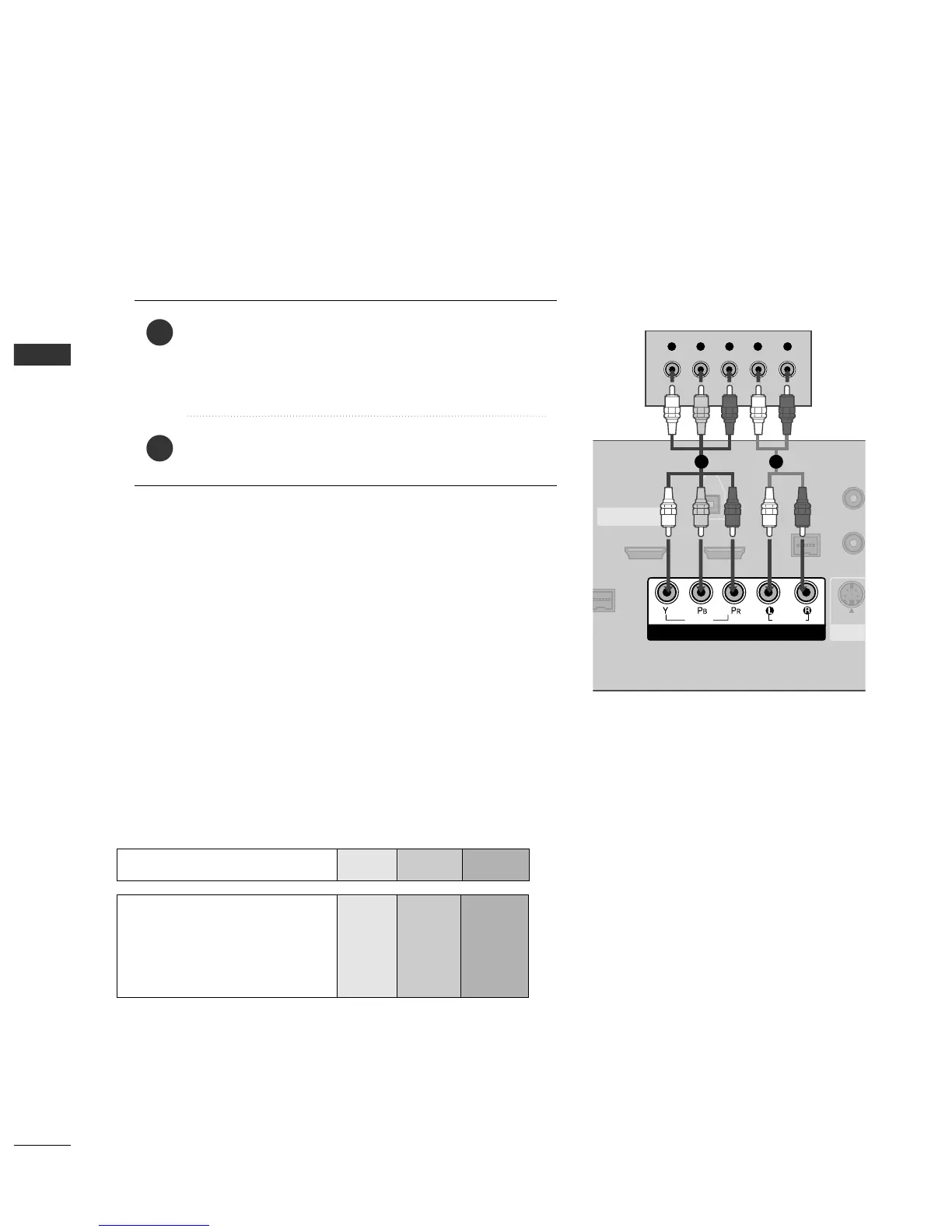

To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
P
B
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video outputs
(
Y, PB
, PR
)
of the DVD to
the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on the set.
Match the jack colors
(
Y = green, P
B = blue, and PR = red
)
.
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the set.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select
CCoommppoonneenntt
input source with using the
IINNPPUUTT
button on the remote control.
■
Refer to the DVD player's manual for operating instructions.
2
1
1 2

LG 32LX5DC Specifications

Display

display size	32"
display area	31.5"
aspect ratio	16:9
native resolution	1366×768
maximum computer resolution	1024×768
brightness	500 cd/m²
contrast ratio	1600:1
viewing angle	178°
color depth	16.7 Million
lamp life	Approx. 60, 000 Hours
response time	8 ms

Audio

audio power	30W (15W×2)

Power

power source	100~240V (50/60Hz)
power consumption	190W

Dimensions and Weight

dimensions with stand	36.3"×24.19"×11.32"
dimensions without stand	36.3"×21.47"×3.8"
packaging dimensions	38.7"×27.44"×14.02"
weight with stand	39.0 lbs.
weight without stand	30.4 lbs.
weight with packaging	46.1 lbs.
