LG 32PC5 series User Manual

23
EXTERNAL EQUIPMENT SETUP
ANTENNA
IN
AV 1 AV 2
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
VIDEO
AUDIO
COMPONENT IN
HDMI INHDMI/DVI IN
12
RGB IN (PC)
ANTENNA
IN
RS-232C IN
(CONTROL & SERVICE)
AUDIO IN
(RGB/DVI)
AV 2 AV 1
Wall Jack
Antenna

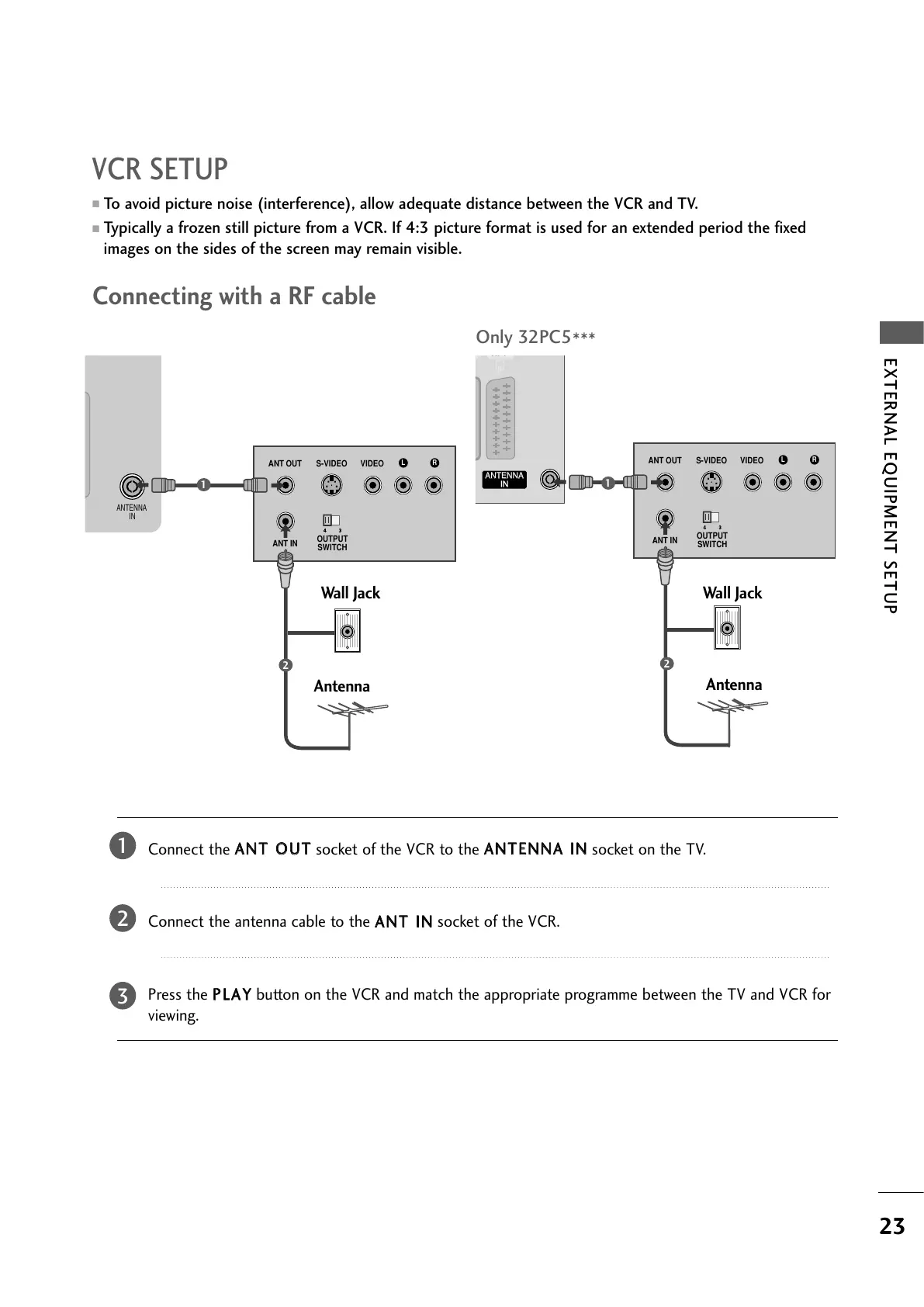

VCR SETUP
Connecting with a RF cable
■
To avoid picture noise (interference), allow adequate distance between the VCR and TV.
■
Typically a frozen still picture from a VCR. If 4:3 picture format is used for an extended period the fixed
images on the sides of the screen may remain visible.
Connect the
AANNTT OOUUTT
socket of the VCR to the
AANNTTEENNNNAA IINN
socket on the TV.
Connect the antenna cable to the
AANNTT IINN
socket of the VCR.
Press the
PPLLAAYY
button on the VCR and match the appropriate programme between the TV and VCR for
viewing.
1
2
AV 1 AV 2
VIDEO
AUDIO
COMPONENT IN
HDMI INHDMI/DVI IN
12
RGB IN (PC)
ANTENNAANTENNA
IN
RS-232C IN
(CONTROL & SERVICE)
AUDIO IN
(RGB/DVI)
AV 2 AV 1V 1
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
Wall Jack
Antenna
1
2
2
3
1
Only 32PC5
***
