LG 32PC5 series User Manual

APPENDIX
89

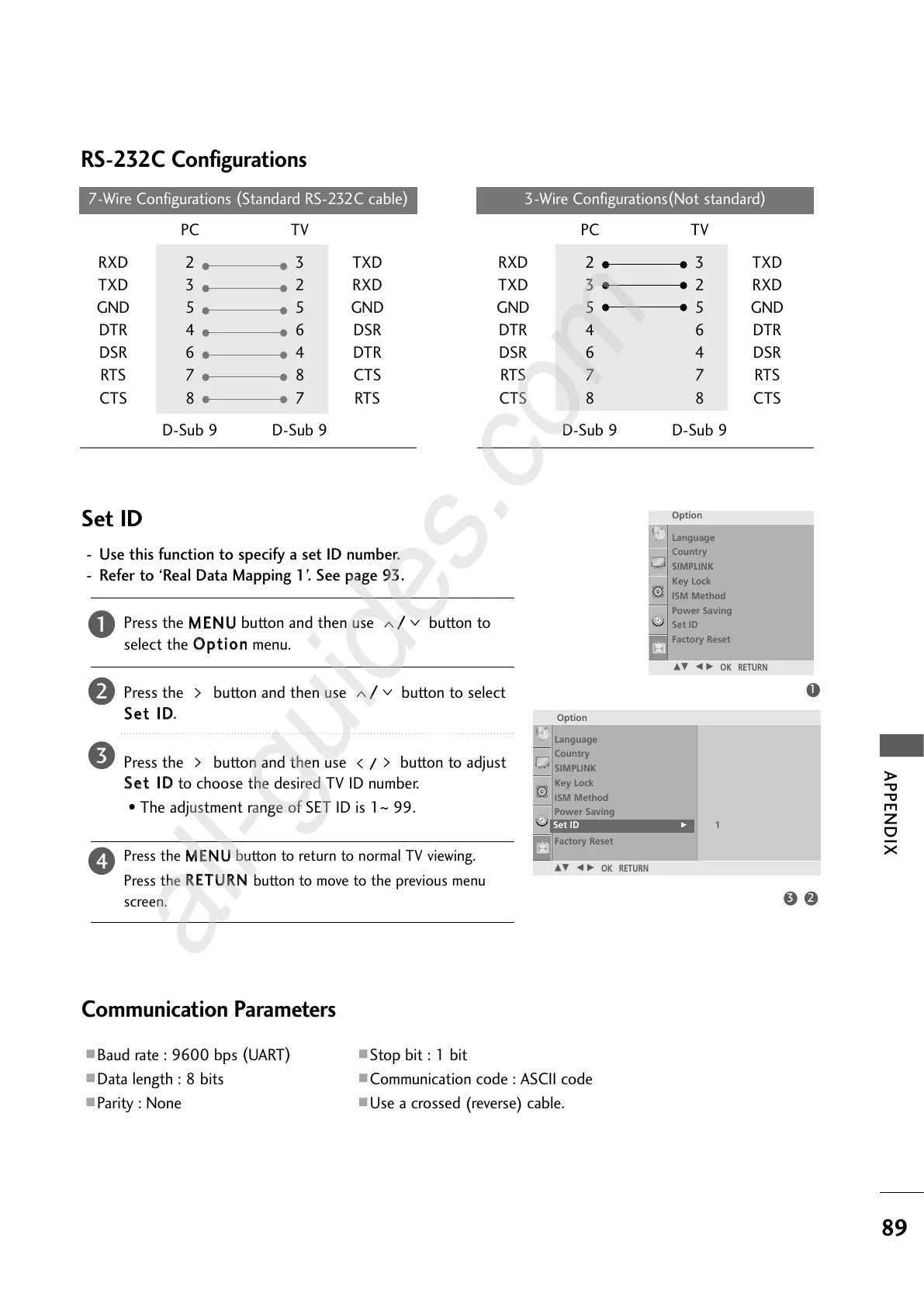

RS-232C Configurations
7-Wire Configurations
(
Standard RS-232C cable
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations
(
Not standard
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
Communication Parameters
A
Baud rate : 9600 bps
(
UART
)
A
Data length : 8 bits
A
Parity : None
A
Stop bit : 1 bit
A
Communication code : ASCII code
A
Use a crossed (reverse) cable.
Set ID
Press the
MMEENNUU
button and then use
//
button to
select the
OOppttiioonn
menu.
Press the button and then use
//
button to select
SSeett IIDD
.
Press the button and then use
//
button to adjust
SSeett IIDD
to choose the desired TV ID number.
• The adjustment range of SET ID is 1~ 99.
Press the
MMEENNUU
button to return to normal TV viewing.
Press the
RREETTUURRNN
button to move to the previous menu
screen.
- Use this function to specify a set ID number.
- Refer to ‘Real Data Mapping 1’. See page 93.
1
3 2
Option
Language
Country
SIMPLINK
Key Lock
ISM Method
Power Saving
Set ID
Factory Reset
Set ID G
DE F G OK RETURN
1
Language
Country
SIMPLINK
Key Lock
ISM Method
Power Saving
Set ID
Factory Reset
Option
DE F G OK RETURN
1
2
3
4
