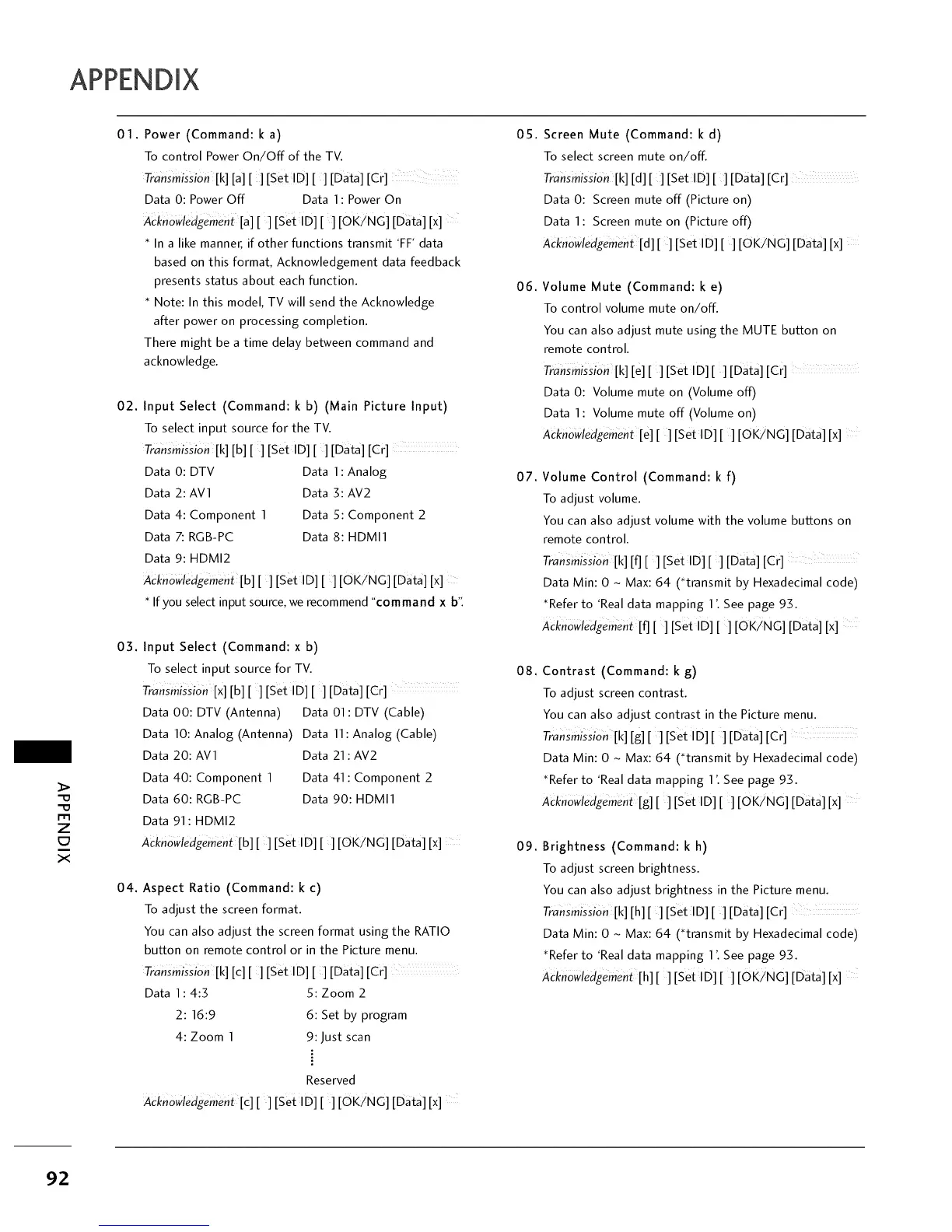

01. Power (Command: k a)
To control Power On/Off of the TV.
Transmission[k][a][][Set!D][] [Data][Cr]
Data O: Power Off Data I:Power On
Acknowledgement[all] [Set ID] [ ] [OK/NG] [Data] [x]
* In a like manner, if other functions transmit 'FF' data
based on this format, Acknowledgement data feedback
presents status about each function.
* Note: In this model, TV will send the Acknowledge
after power on processing completion.
There might be a time delay between command and
acknowledge.
02.
Input Select (Command: k b) (Main Picture Input)
To select input source for the TV.
Transmission [k] [b] [ ] [Set ID] [ ] [Data] [cr]
Data 0: DTV Data 1: Analog
Data 2:AV1 Data 3:AV2
Data 4: Component 1 Data 5: Component 2
Data 7: RGB-PC Data 8:HDMI1
Data 9:HDMI2
ACknoWledgement [b][] [set ID] [ ] [OKZNG] [Data] [x]
* If you select input source, we recommend "command x b'.
03. Input Select (Command: x b)
To select input source for TV.
Transmission [x] [b][] [Set iD] [ ] [Data] [Cr]
Data 00: DTV (Antenna) Data 01 : DTV (Cable)
Data 10: Analog (Antenna) Data 11: Analog (Cable)
Data 20:AV1 Data 21: AV2
Data 40: Component 1 Data 41: Component 2
Data 60: RGB-PC Data 90:HDMI1
Data 91:HDMI2
Acknowledgement [b][] [Set ID] [] [OKiNG] [Data] [x]
04.
Aspect Ratio (Command: k c)
To adjust the screen format.
You can also adjust the screen format using the RATIO
button on remote control or in the Picture menu.
Transmission[k] [c] [ ] [set ID] [ ] [Data] [cr]
Data 1:4:3 5: Zoom 2
2:16:9 6: Set by program
4: Zoom 1 9: Just scan
=
Reserved
Acknowledgemen_ [c][ ][Set ID][ ][OKiNG] [Data] [x]
05.
06.
07.
08.
09.
Screen Mute (Command: k d)
To select screen mute on/off.
Transmission [k] [d][ ] [SetlD][] [Data] [Cr]
Data 0: Screen mute off (Picture on)
Data 1: Screen mute on (Picture off)
Acknowledgement [d][] [Set I D] [] [OK/NG] [Data] [x]
Volume Mute (Command: k e)
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission[k] [e][] [Set ID] [ ] [Data] [Cr] ....
Data 0: Volume mute on (Volume off)
Data 1: Volume mute off (Volume on)
Acknowledgement[e] [] [Set ID][] [OKZNG] [Data] [x]
Volume Control (Command: k f)
To adjust volume.
You can also adjust volume with the volume buttons on
remote control.
Transmission [k] [f] [] [Set ID][] [Data] [Cr]
Data Min: 0 - Max: 64 (*transmit by Hexadecimal code)
*Refer to 'Real data mapping 1'. See page 92;.
Acknowledgement[f] [ ][Set ID][ ] [OK]NG] [Data] [x]
Contrast (Command: k g)
To adjust screen contrast.
You can also adjust contrast in the Picture menu.
Transmission [k] [g][ ] [set ID][] [Data] [Cr]
Data Min: 0 - Max: 64 (*transmit by Hexadecimal code)
_Refer to 'Real data mapping 1'. See page 93.
Acknowledgement: [g] [ ] [Set ID] [ ] [OK/NG] [Data] [x]
Brightness (Command: k h)
To adjust screen brightness.
You can also adjust brightness in the Picture menu.
Transmission[k] [h][] [set ID] [ ] [Data] [Cr]
Data Min: 0 _ Max: 64 (*transmit by Hexadecimal code)
*Refer to 'Real data mapping 1'. See page 92;.
Acknowledgemen_ [h][ ] [Set ID] [ ] [OKiNG] [Data] [x]
