LG 43LX570M Commercial Mode Setup Guide

67
206-4281
..........
USB IN
IN 2
AV IN
..........
USB IN
IN 2
PILLOW SPEAKER
SPEAKER OUT
LINE OUT
VIDEO
L/MONO-AUDIO-R
AV IN/AUDIO IN
L R
SERVICE ONLY
OPTICAL
AUDIO OUT
IN
1
GAME CONTROL
/ MPI
ANTENNA/
CABLE IN
RESET
UPDATE
TV-LINK CFG
UPDATE
Restricted to software updates.
RESET
Initiates a hardware reset and turns the TV OFF.
GAME CONTROL/MPI
When the TV/EBL is in Pass-through Mode, the
MPI function enables an external MPI control
device (i.e., VOD/PPV STB, etc.) to control the TV.
Game Control—EBL in SONIFI PPV Mode only.
AV IN/AUDIO IN
Connect to composite audio/
video output from external device.
SPEAKER OUT / LINE OUT
( 3.5 mm jack) Connect external audio (xed speaker,
variable speaker, or xed line level [amplier])
equipment. See Reference section, “External Stereo
Speaker Specifications,” for further information.
HDMI IN 1
Connection for HDMI output from
external device.
ANTENNA/CABLE IN
Connect to Antenna/
CATV.
SERVICE ONLY
Restricted to service updates.
TV-LINK CFG
( 3.5 mm jack) Use to connect PC to TV (EBL)
for local FTG Mode via EBL configuration.

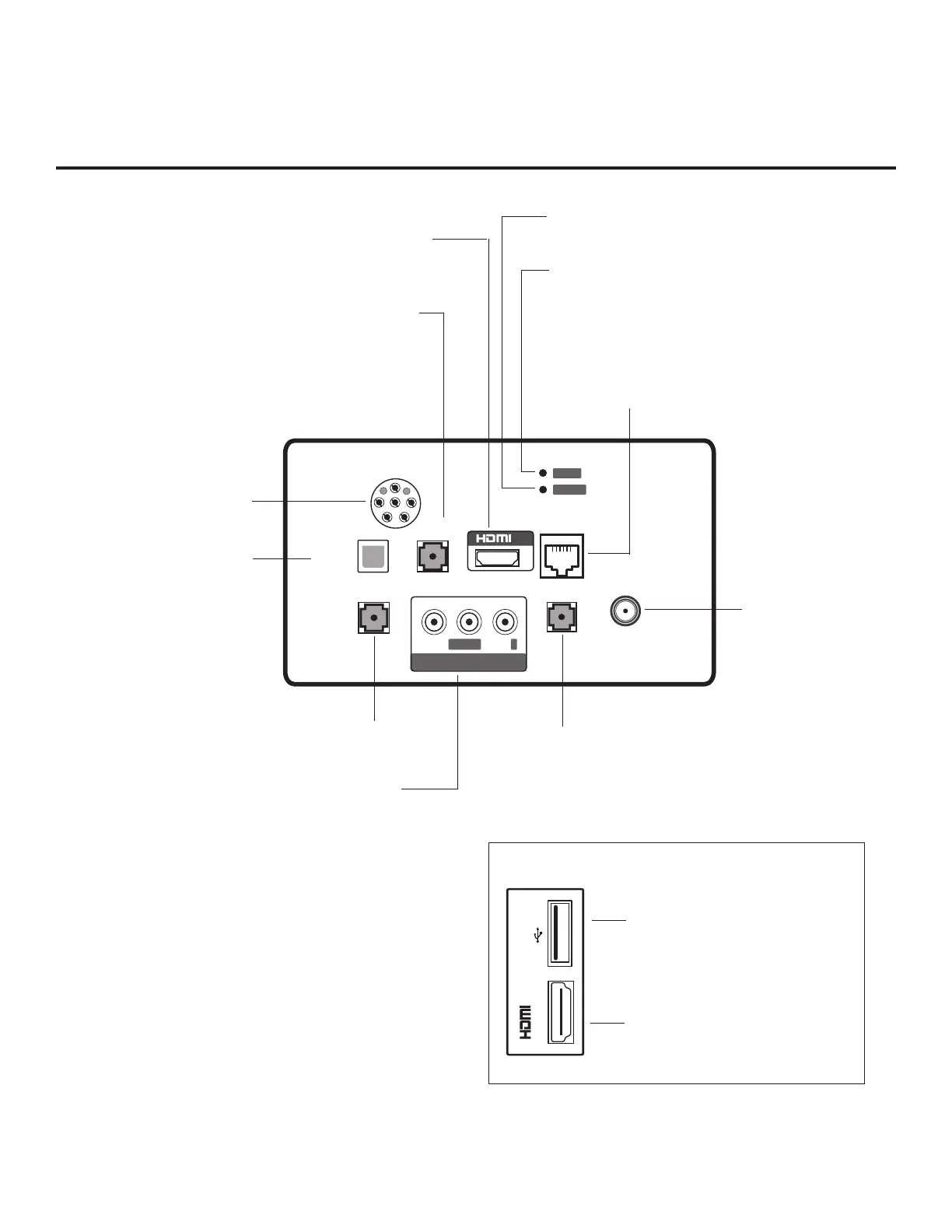

Reference: 32/43LX570M Rear and Side Jack Panels
OPTICAL AUDIO OUT
Use for amps and home
theater systems.
Note: When the TV is OFF,
this port is not enabled.
Side Jack Panel
HDMI IN 2
Connection for HDMI output
from external device.
USB IN
Insert USB memory device
for software updates, cloning
purposes, FTG Mode via CPU
configuration, picture/music
entertainment, etc., as applicable.
PILLOW SPEAKER
Connect pillow speaker here.

LG 43LX570M Specifications

General

Panel life	- h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	43 \
Display brightness	- cd/m²
Display technology	LED
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1200:1
Display number of colors	-
USB version	2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Sound modes	Dynamic, Game, Music, News, Sports, Standard
RMS rated power	10 W
Impedance	8 Ω
Weight (without stand)	9979.03214 g
AC input voltage	110 - 127 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	42 W
Product design	Digital signage flat panel
Panel mounting interface	200 x 200 mm
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	574.04 mm
Width	972.82 mm
Height	55.88 mm
