LG 43LX570M Commercial Mode Setup Guide

68
206-4281
Reference: External Stereo Speaker Specications
SPEAKER OUT
LINE OUT
EXTERNAL SPEAKER_R- (Sleeve)
EXTERNAL SPEAKER_L- (Ring 1)
EXTERNAL SPEAKER_R+ (Ring 2)
EXTERNAL SPEAKER_L+ (Tip)
3
1
2
1 LEFT (Tip)
2 RIGHT (Ring)
3 GROUND (Sleeve)

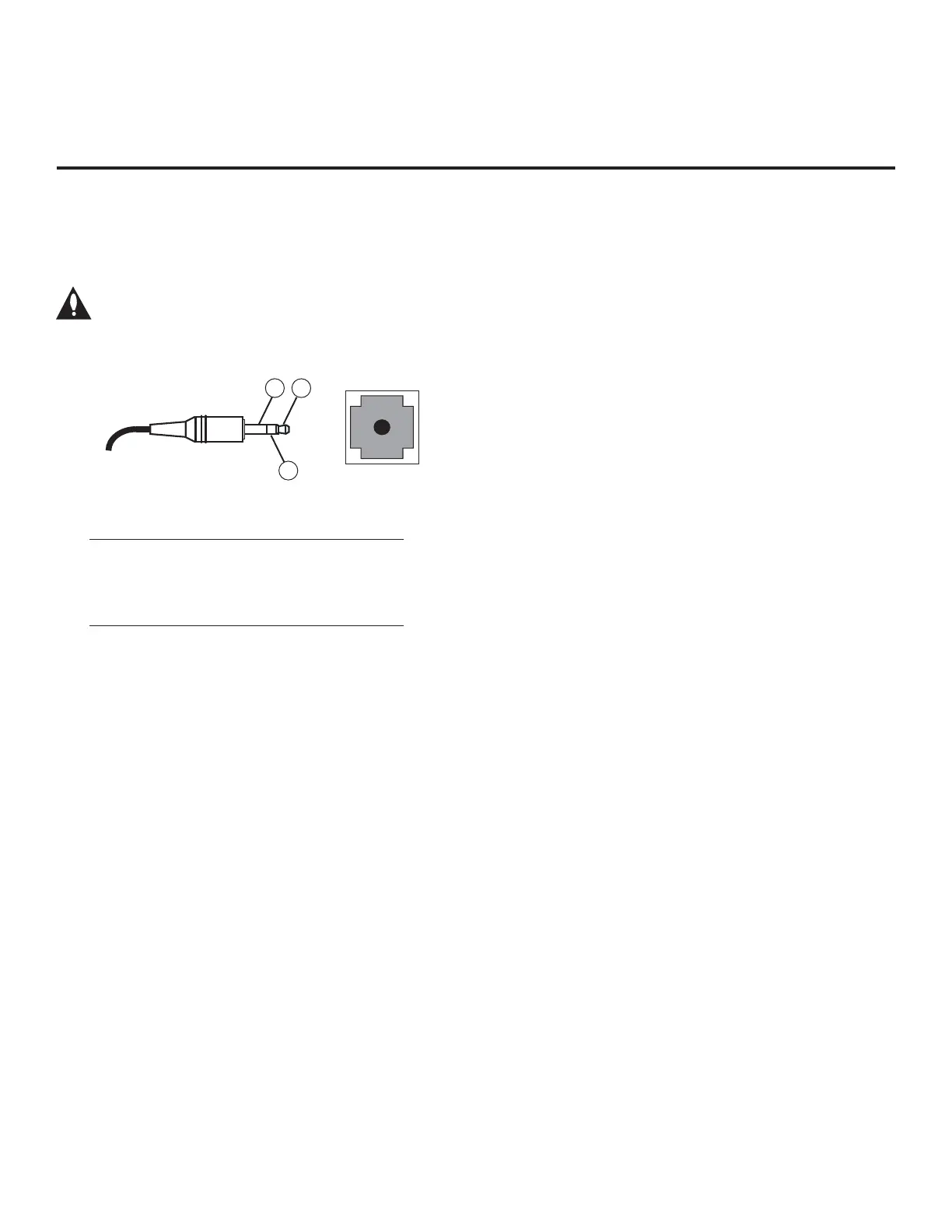

The SPEAKER OUT / LINE OUT 3.5 mm stereo jack on the LX570M rear panel provides stereo speaker
signal outputs (xed speaker, variable speaker, or xed line level [amplier]) for external audio equipment.
Set Installer Menu item 097 AUDIO OUTPUT as required in accordance with external audio equipment
connected to the TV. Also, refer to the following diagram for pinout details.
Caution: Do NOT plug in a mono connector, as this may damage the TV.

LG 43LX570M Specifications

General

Panel life	- h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	43 \
Display brightness	- cd/m²
Display technology	LED
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1200:1
Display number of colors	-
USB version	2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Sound modes	Dynamic, Game, Music, News, Sports, Standard
RMS rated power	10 W
Impedance	8 Ω
Weight (without stand)	9979.03214 g
AC input voltage	110 - 127 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	42 W
Product design	Digital signage flat panel
Panel mounting interface	200 x 200 mm
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	574.04 mm
Width	972.82 mm
Height	55.88 mm
