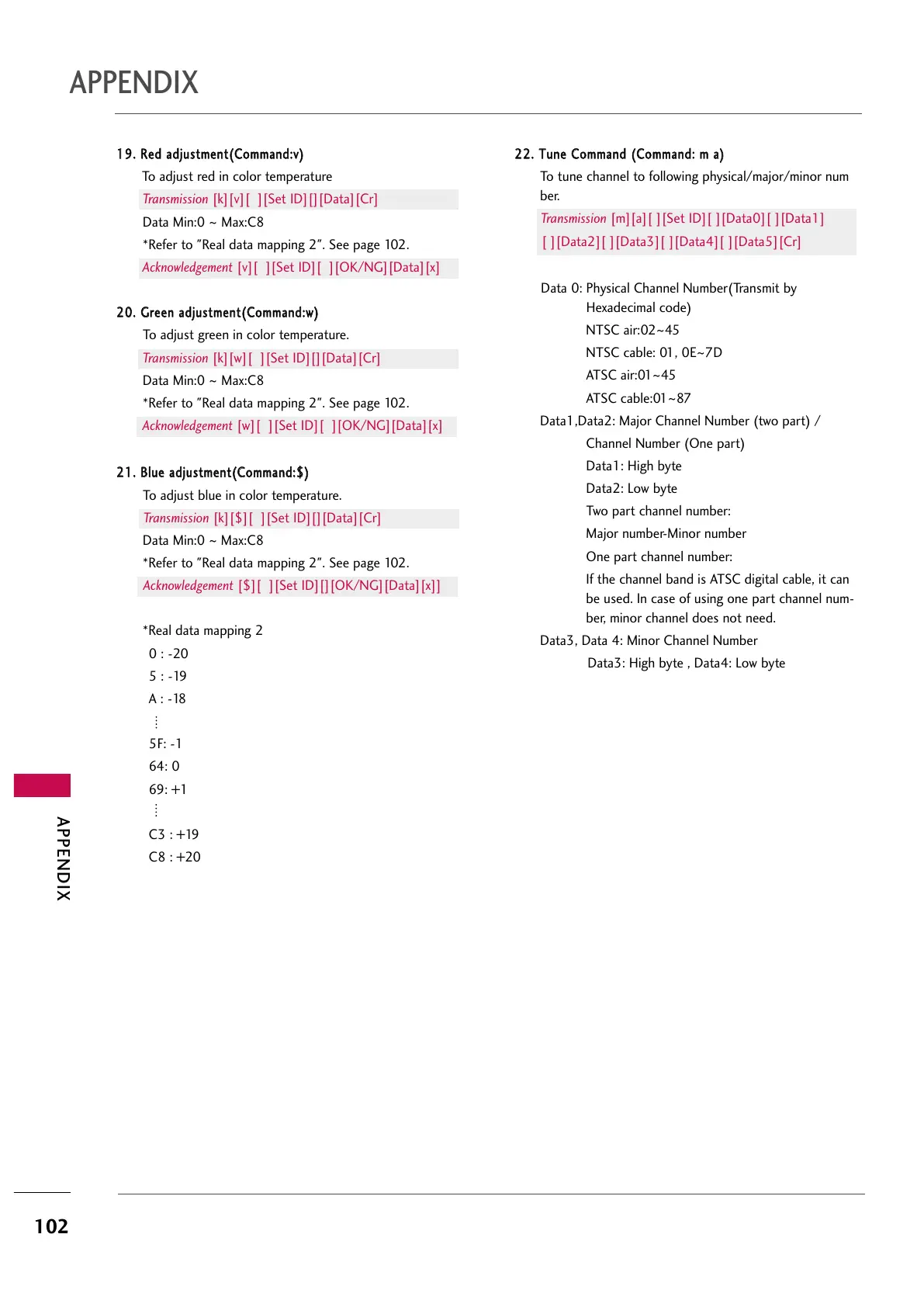

APPENDIX
102
APPENDIX
1199.. RReedd aaddjjuussttmmeenntt((CCoommmmaanndd::vv))
To adjust red in color temperature
Transmission [k][v][ ][Set ID][][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2". See page 102.
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
2200.. GGrreeeenn aaddjjuussttmmeenntt((CCoommmmaanndd::ww))
To adjust green in color temperature.
Transmission [k][w][ ][Set ID][][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2". See page 102.
Acknowledgement [w][ ][Set ID][ ][OK/NG][Data][x]
2211.. BBlluuee aaddjjuussttmmeenntt((CCoommmmaanndd::$$))
To adjust blue in color temperature.
Transmission [k][$][ ][Set ID][][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2". See page 102.
Acknowledgement [$][ ][Set ID][][OK/NG][Data][x]]
*Real data mapping 2
0 : -20
5 : -19
A : -18
5F: -1
64: 0
69: +1
C3 : +19
C8 : +20
2222.. TTuunnee CCoommmmaanndd ((CCoommmmaanndd:: mm aa))
To tune channel to following physical/major/minor num
ber.
Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1]
[ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]
Data 0: Physical Channel Number(Transmit by
Hexadecimal code)
NTSC air:02~45
NTSC cable: 01, 0E~7D
ATSC air:01~45
ATSC cable:01~87
Data1,Data2: Major Channel Number (two part) /
Channel Number (One part)
Data1: High byte
Data2: Low byte
Two part channel number:
Major number-Minor number
One part channel number:
If the channel band is ATSC digital cable, it can
be used. In case of using one part channel num-
ber, minor channel does not need.
Data3, Data 4: Minor Channel Number
Data3: High byte , Data4: Low byte
