LG 52LY3D - Antenna or Cable Connection

AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
USB IN
PREPARATION
13

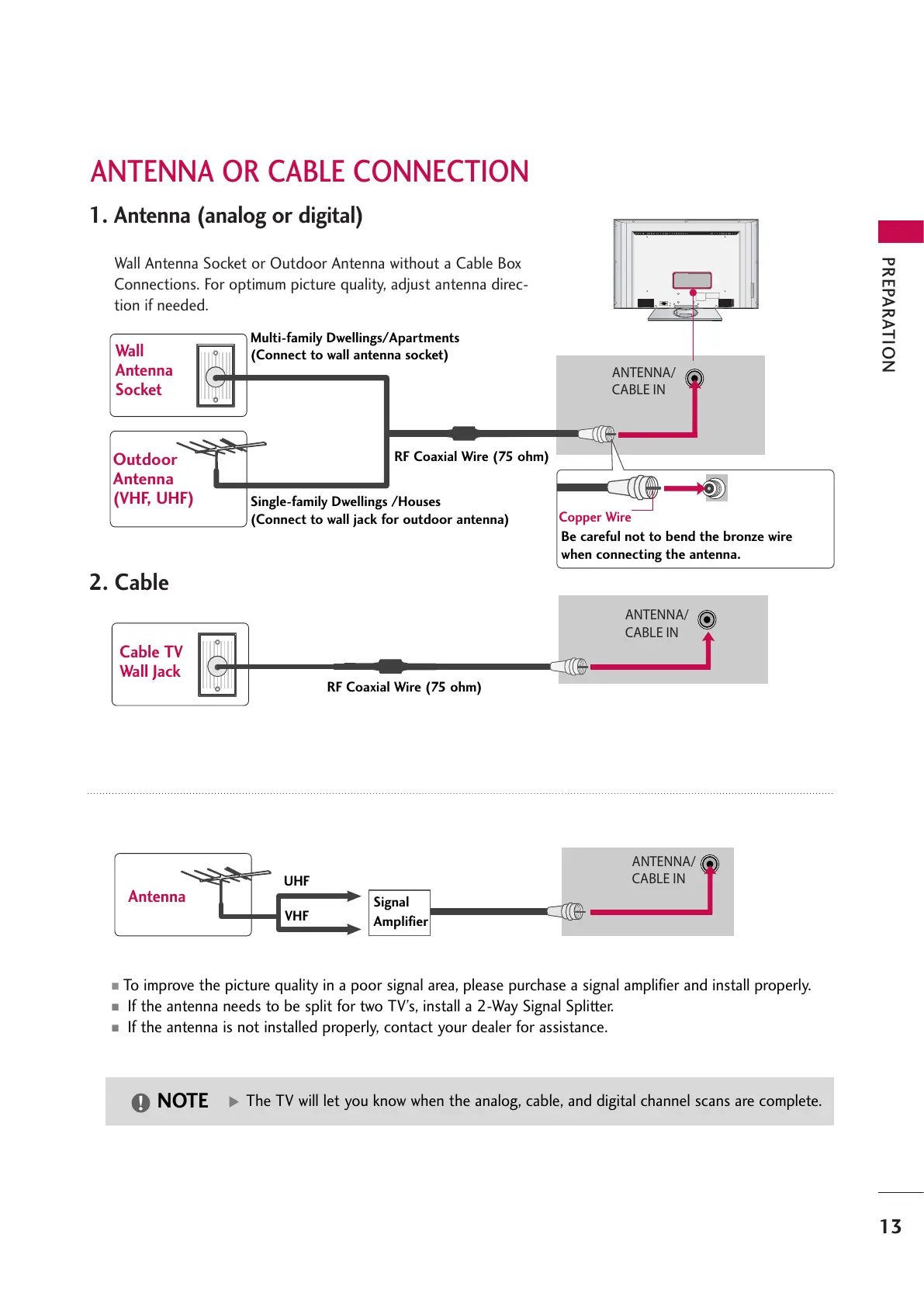

1. Antenna (analog or digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections. For optimum picture quality, adjust antenna direc-
tion if needed.
2. Cable
ANTENNA/
CABLE IN
ANTENNA/
CABLE IN
Wall
Antenna
Socket
Outdoor
Antenna
(VHF, UHF)
Cable TV
Wall Jack
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
RF Coaxial Wire (75 ohm)
RF Coaxial Wire (75 ohm)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the bronze wire
when connecting the antenna.
Copper Wire
The TV will let you know when the analog, cable, and digital channel scans are complete.
NOTE
ANTENNA/
CABLE IN
■
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
■
If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
■
If the antenna is not installed properly, contact your dealer for assistance.
Antenna
UHF
Signal
Amplifier
VHF
ANTENNA OR CABLE CONNECTION
