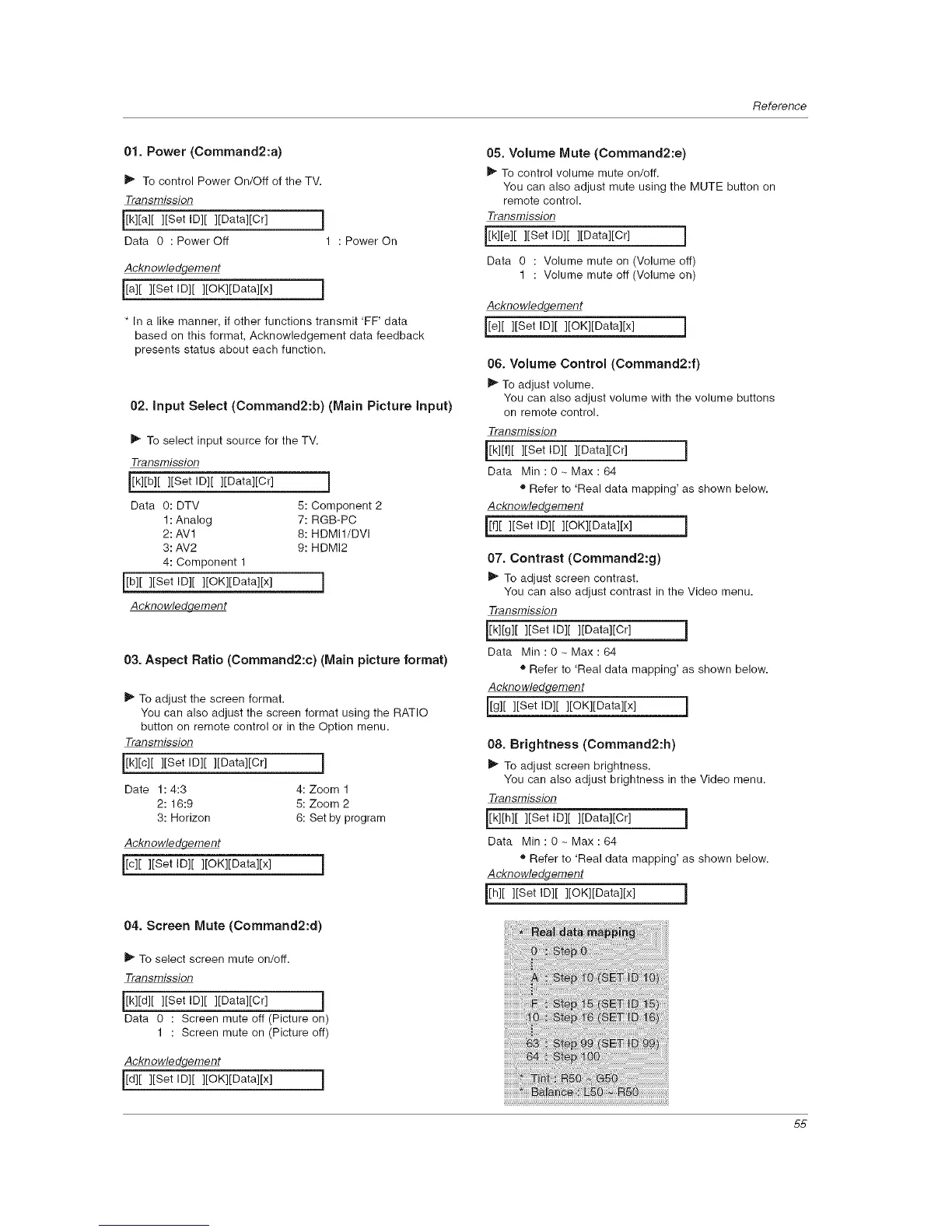

Reference
01. Power (Command2:a)
_1_To control Power On/Off of the TV.
Transmission
i[k][a][ ][Set IU][ ][Uata][Cr] i
Data 0 : Power Off 1 : Power On
Acknowledgement
i[a][ ][Set IU][ ][OK][Uata][x] ]
* In a like manner, if other functions transmit 'PP' data
based on this format, Acknowledgement data feedback
presents status about each function.
02. Input Select (Command2:b) (Main Picture Input)
II_ To select input source for the TV.
Transmission
[[k][b][ ][Set ID][ ][Data][Cr]
Data 0: DTV
1: Analog
2:AV1
3:AV2
4: Component 1
I[b][ ][Set ID][ ][OK][Data][x]
Acknowledgement
]
5: Component 2
7: RGB-PC
8: HDMI1/DVI
9:HDMI2
03. Aspect Ratio (Command2:c) (Main picture format)
To adjust the screen format.
You can also adjust the screen format using the RATIO
button on remote control or in the Option menu.
Transmission
I[k][c][ ][Set ID][ ][Data][Cr] 1
Date 1:4:3 4: Zoom 1
2:16:9 5: Zoom 2
3: Horizon 6: Set by program
Acknowledgement
I[c][ ][Set IU][ ][OK][Uata][x] 1
04. Screen Mute (Command2:d)
_1_To select screen mute on/off.
Transmission
i[k][d][ ][Set IU][ ][Uata][Cr] i
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Acknowledgement
I[d][ ][Set IU][ ][OK][Uata][x] 1
05. Volume Mute (Command2:e)
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
[[k][e][ ][Set IU][ ][Data][Cr] ]
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
Acknowledgement
i[e][ ][Set ID][ ][OK][Uata][x] I
06. Volume Control (Command2:f)
II_ To adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
i[k][f][ ][Set Ia][ ][Data][Cr] i
Data Min:0~ Max:64
• Refer to 'Real data mapping' as shown below.
Acknowledgement
[[f][ ][Set ID][ ][OK][Uata][x] i
07. Contrast (Command2:g)
To adjust screen contrast.
You can also adjust contrast in the Video menu.
Transmission
i[k][g][ ][Set IU][ ][Uata][Cr] i
Data Min:0~ Max:64
• Refer to 'Real data mapping' as shown below.
Acknowledgement
[[g][ ][Set IU][ ][OK][Uata][x] ]
08. Brightness (Command2:h)
II_ To adjust screen brightness.
You can also adjust brightness in the Video menu.
Transmission
I[k][h][ ][Set Ia][ ][aata][Cr] I
Data Min:0~ Max:64
• Refer to 'Real data mapping' as shown below.
Acknowledgement
i[h][ ][Set IU][ ][OK][Data][x] i
55
