GENERAL DATA
5HIULJHUDQW3LSLQJ'LDJUDPV

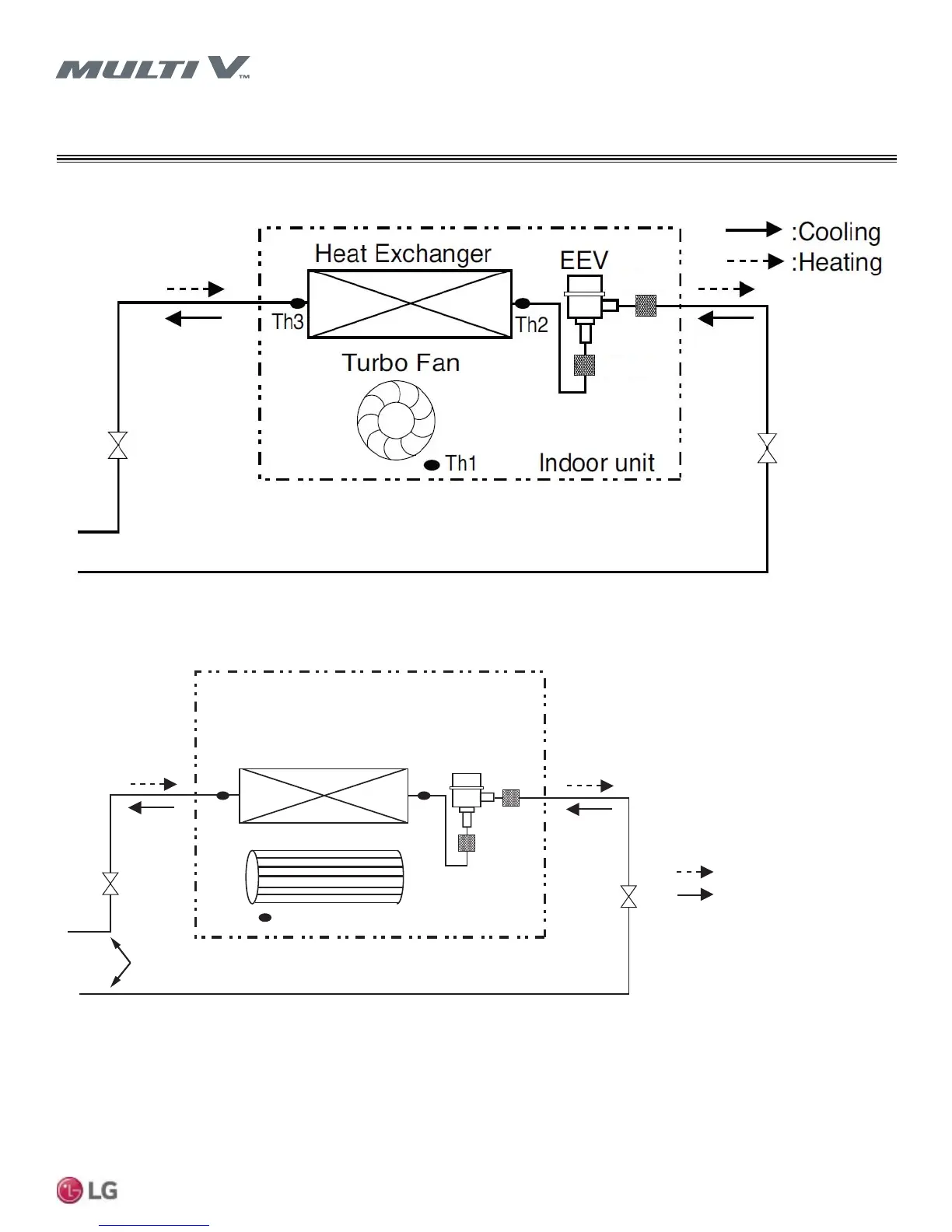

Figure 4: Refrigerant Piping Diagram Art Cool Gallery SF Chassis
Heating
Cooling
Th1 = Thermistor, Return Air
Th2 = Thermistor, Pipe In
Th3 = Thermistor, Pipe Out
EEV = Electronic Expansion Valve
Heat Exchanger
CFF
Th3
Th2
EEV
Strainer
Strainer
Th1
Refrigerant Pipes
to Outdoor Unit
Wall-Mounted lndoor Unit
(Standard and Art Cool Mirror)
Flare Nut
Flare Nut
Liquid Line
Vapor
Line
Strainer
Strainer
Figure 5: Refrigerant Piping Diagram SB, SC, SV, SE, and S8 Chassis
To Next Page
