58
Multi V Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Art Cool Mirror Wall-Mounted SE, S8 Chassis
WIRING

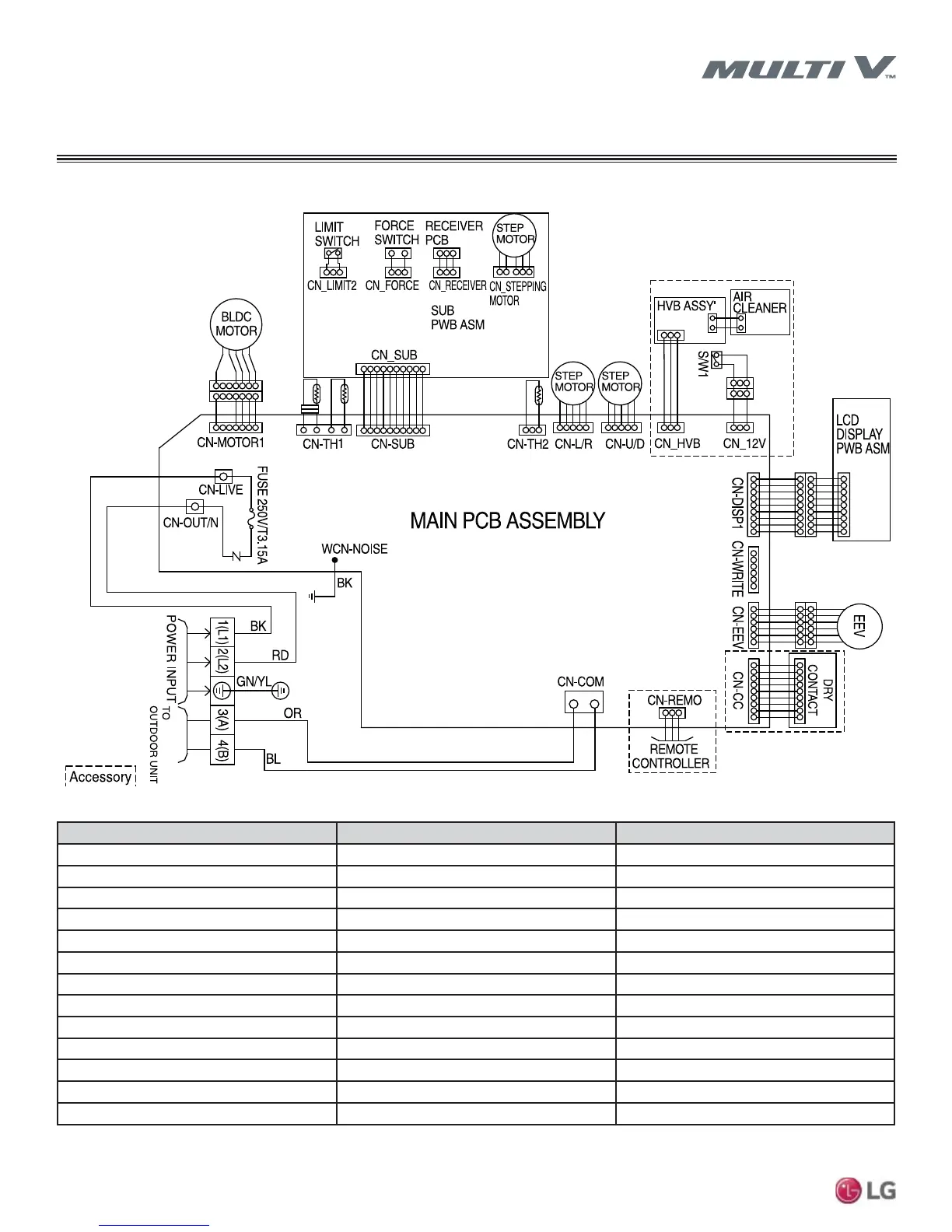

Figure 61: Art Cool Mirror (Gen 2) Wall-Mounted SE, S8 Chassis Wiring Diagram
Table 17: Art Cool Mirror (Gen 2) Wall-Mounted SE, S8 Chassis Wiring Diagram Legend
PCB Connection Purpose Function
CN-MOTOR1 Fan motor output Motor output of BLDC
CN-COM Communication Connection between indoor and outdoor
CN-EEV EEV output EEV control output
CN-L/R Step motor Step motor output for left/right
CN-U/D Step motor Step motor output
CN-TH1 Room/pipe sensor Room & pipe thermistor
CN-TH2 Discharge pipe sensor Discharge pipe thermistor
CN-SUC Step motor (front) Front panel step motor
CN-HVB Air cleaner Air cleaner control
CN-VFD Display Display of indoor status
CN-12V Safety connection Safety of indoor status
CN-REMO Remote controller Remote control line
CN-CC Dry contact Dry contact line
