Standard Wall-Mounted
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
©
/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
STANDARD WALL-MOUNTED
([WHUQDO'LPHQVLRQV
SC Frame

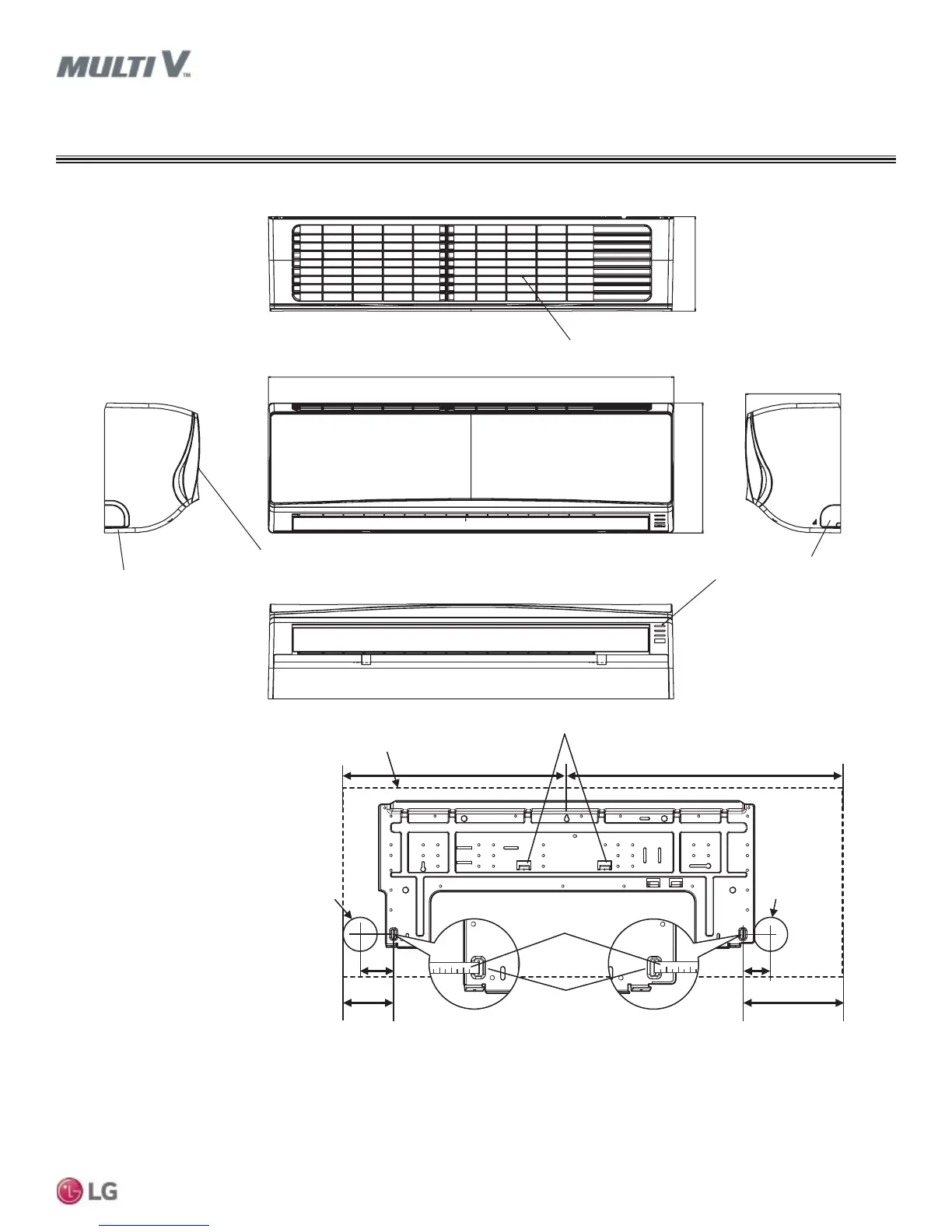

Figure 29: ARNU183SCL4, ARNU243SCL4 Dimensions.
Display and Signal Receiver
Front Panel
Air Inlet Grille
Installation Plate
Access Hole
9-7/8
40-9/16
12-13/16
8-5/16
2-13/16
2-3/4
2-1/4
Right rear
piping
Left rear
piping
Installation Plate
Measuring Tape
Measuring Tape
Hanger
Place a level on raised tab
Unit Outline
8-3/16
4-3/16
18-1/8 22-1/2
2-13/16
Unit: inches
Note: All measurements
have a tolerance of 1/4 in.
Access Hole
