48 | STANDARD
MULTI V Wall-Mounted Indoor Unit Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
©
/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
STANDARD WALL-MOUNTED
([WHUQDO'LPHQVLRQV
SV Frame

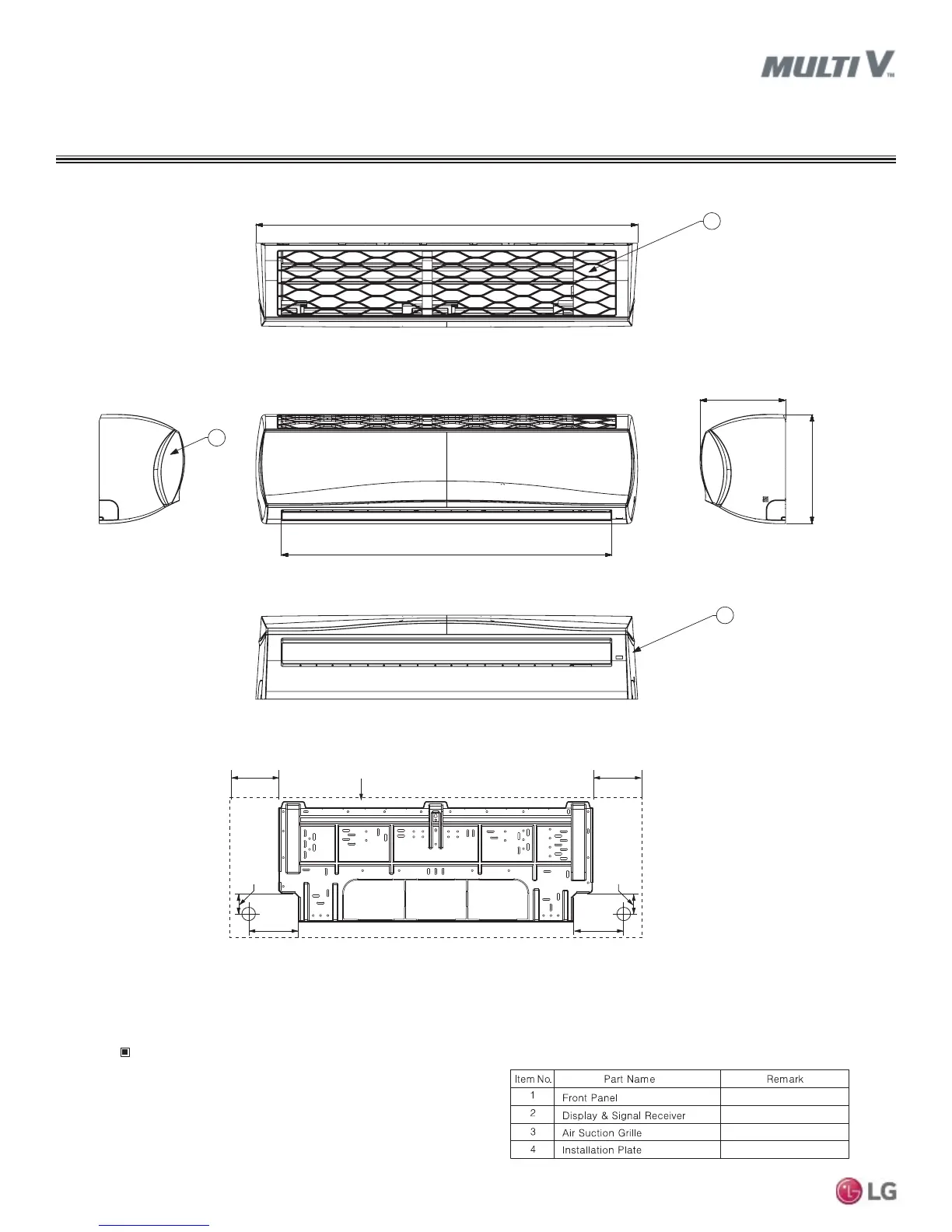

Figure 30: ARNU303SVA4, ARNU363SVA4 Dimensions.
1. Unit should be installed in compliance with the installation manual
in the product box.
2. Unit shall be grounded in accordance with the local regulations or
applicable national codes.
3. The Unit is powered from the outdoor unit. Therefore power cable
should be connected with the outdoor unit.
Note
3
2
1
Left rear piping Right rear piping
1-11/16
5-1/2
5-29/32
6-9/16
Installation plate
[Unit : inch]
Unit Outline
6-9/16
1-11/16
40-9/16
46-27/32
10-7/16
13-5/8
