Connecting
2
Connecting other
devices

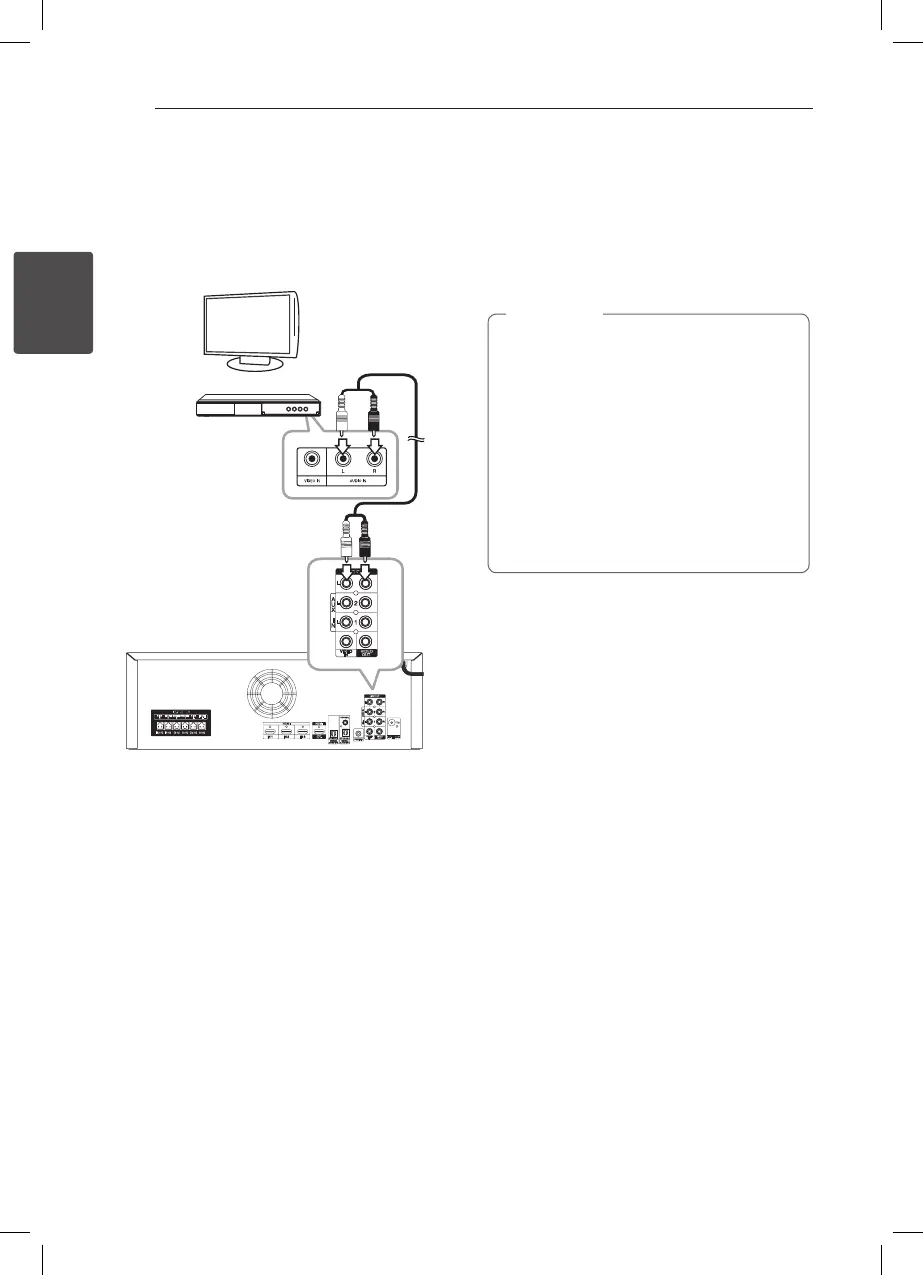

You can connect various devices (TV, recorder, etc)
to the jacks on AV receiver system.
Audio cable
1. Connect the LINE OUT jacks on AV Receiver
System to your device's INPUT jack you want
2. Set the input source to FM, PORT.IN or AUX1/2
you connect (Refer to the page 23).
Refer to "Connecting audio devices" and
"Connecting portable device" when you connect
external device.
y
When connecting an audio/video cable,
be sure to match the color-coded pins to
the appropriate jacks on the components:
yellow (video) to yellow; white (left, audio)
to white; and red (right, audio) to red.
y
It is only output analog signal. (FM,
portable, or AUX1/2)
y
When you connect to a TV by using only
audio cable, TV AV setup menu may not be
activated(It depends on TV models). But
audio will be outputted normally.
,
Note
Or
TV, VCR,
Recorder, etc
To Next Page
