LG BP630 Service Manual

3-583-57
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
Warning
Parts that are shaded are critical with
respect to risk of fire or electrical shock.
No Power
D103~D106 are Defective
No Power
D102 is Defective
S/W Error
IC101 is Defective
Switching Error
IC102/IC103 are Defective
14VA No Power
D126/D130 are Defective
5.1VA No Power
D127 is Defective
No Power
R101 is Defective
No Power
F101 is Defective
SMPS & TIMER
EAX64893003-SD
2013. 04. 09
CIRCUIT DIAGRAMS

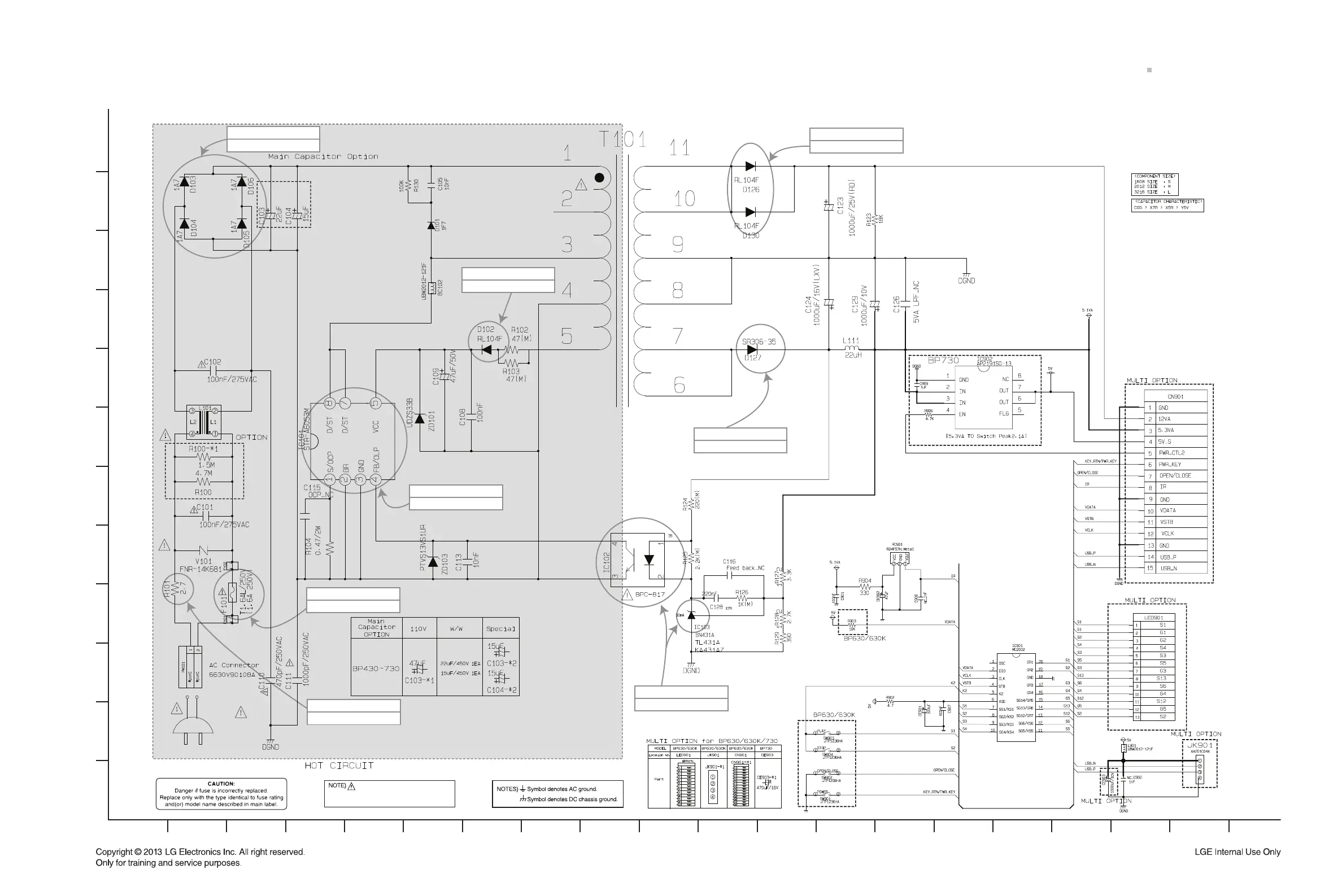

1. SMPS & TIMER CIRCUIT DIAGRAM
WHEN SERVICING THIS CHASSIS, UNDER NO
CIRCUMSTANCES SHOULD THE ORIGINAL
DESIGN BE MODIFIED OR ALTERED WITHOUT
PERMISSION FROM THE LG CORPORATION. ALL
COMPONENTS SHOULD BE REPLACED ONLY WITH
TYPES IDENTICAL TO THOSE IN THE ORIGINAL
CIRCUIT. SPECIAL COMPONENTS ARE SHADED
ON THE SCHEMATIC FOR EASY IDENTIFICATION.
THIS CIRCUIT DIAGRAM MAY OCCASIONALLY
DIFFER FROM THE ACTUAL CIRCUIT USED. THIS
WAY, IMPLEMENTATION OF THE LATEST SAFETY
AND PERFORMANCE IMPROVEMENT CHANGES
INTO THE SET IS NOT DELAYED UNTIL THE NEW
SERVICE LITERATURE IS PRINTED.
1. Shaded( ) parts are critical for safety. Replace only
with specified part number.
2. Voltages are DC-measured with a digital voltmeter
during Play mode.
IMPORTANT SAFETY NOTE :

LG BP630 Specifications

General

3D	Yes
Depth	43.5 mm
Width	430 mm
Height	208.5 mm
Weight	1450 g
Display	LED
Device type	Blu-Ray player
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD Master Audio
Progressive scan	-
Disc types supported	BD, BD-R, BD-RE, BD-ROM, CD, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported video modes	1080p
Card reader integrated	No
USB 2.0 ports quantity	1
Audio formats supported	AAC, FLAC, LPCM, MP1, MP2, MP3, WMA
Video formats supported	3GP, AVCHD, DAT, DIVX, FLV, M4V, MKV, MOV, MP4, MPEG1, MPEG2, MPEG4, TS, VC-1, VOB, WMV
Power consumption (standby)	0.5 W
Power consumption (typical)	12 W
Audio output channels	2.0 channels
