Connection
17

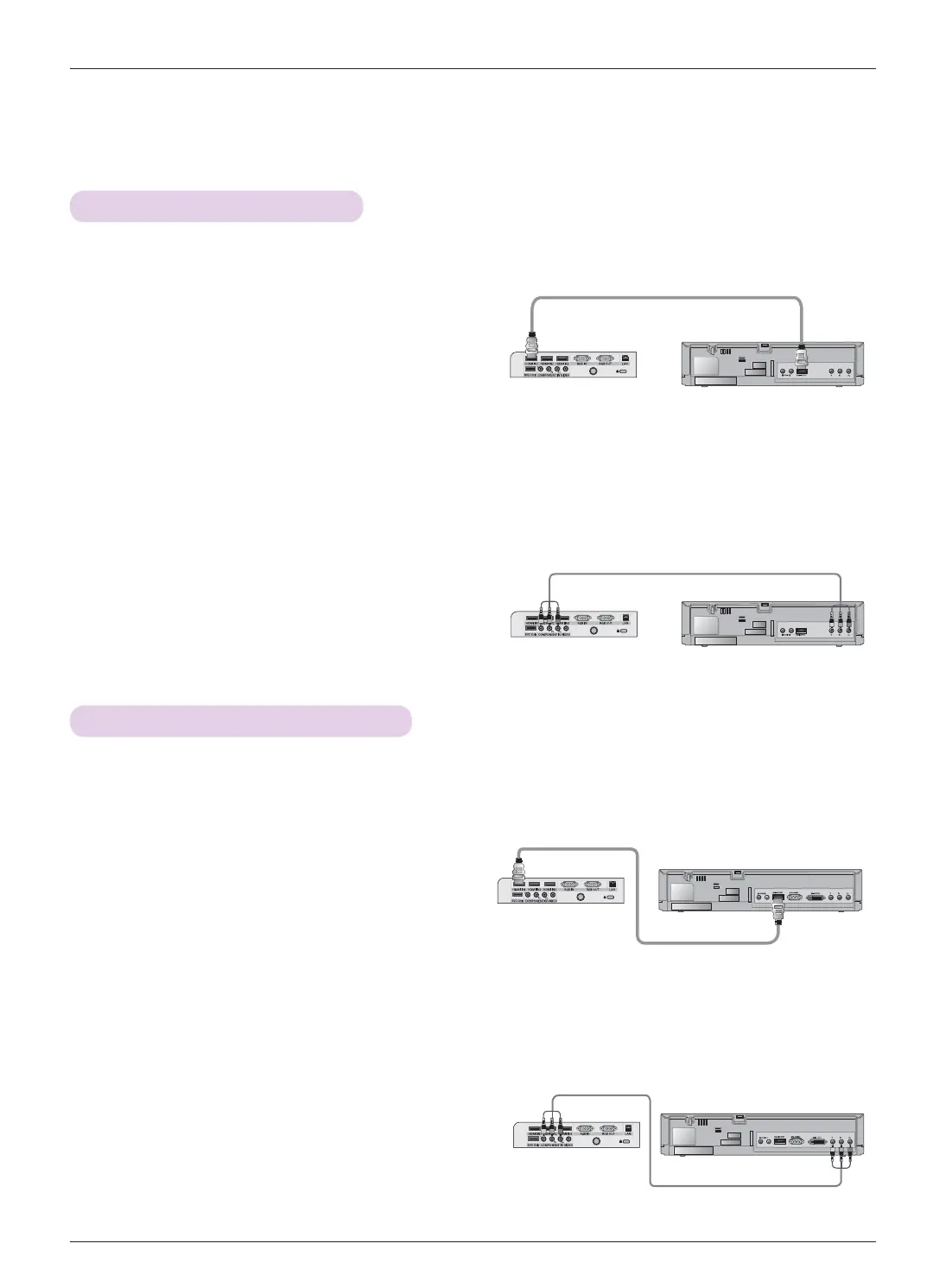

Connecting to a DVD Player
< How to connect a Component source >
Connect the COMPONENT IN of the projector and the
compontnt output port of the DVD Player with a compo-
nent cable.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, P
B=blue, PR
=red)
< How to connect a HDMI source >
1. Connect the HDMI IN 1 (or HDMI IN 2/3) of the pro-
jector and the HDMI output port of the DVD Player
with an HDMI cable.
2. Set the DVD Player's resolution to one of the following:
480p(576p)/720p/1080i/1080p mode.
< How to use a HDMI source >
Surmhfwruᨦ#⢪#⿊#㝮/#KGPL#ᨦ#⿆⇢✾1
* Depending on the equipment, the component output jacks (Y, PB, PR) of the DVD Player may be labeled as Y, Pb, Pr/Y, B-Y, R-Y/Y, Cb, Cr.
< DVD Player >
Component cable
Component cable
Connecting to a D-TV Set-Top Box
< How to connect a HDMI source >
1. Connect the HDMI IN 1 (or HDMI IN 2/3) of the pro-
jector and the HDMI output port of the DTV set-top
box with an HDMI cable.
2. Set the DTV receiver's resolution to one of the follow-
ing: 480p(576p)/720p/1080i/1080p mode.
< How to use a HDMI source >
Surmhfwruᨦ#⢪#⿊#㝮/#KGPL#ᨦ#⿆⇢✾1
* To receive Digital TV (D-TV) programs, it is necessary to purchase a D-TV receiver (Set-Top Box) and connect it to
the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between the projector and D-TV
Set-Top Box.
< How to connect a Component source >
Connect the COMPONENT IN of the projector and the
compontnt output port of the D-TV Set-Top Box with a
component cable.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, P
B=blue, PR
=red)
< D-TV Set-Top Box >
< D-TV Set-Top Box >
< DVD Player >
HDMI Cable
HDMI Cable
To Next Page
