3-12
ONE POINT REPAIR GUIDE
NO OPERATION OF MD
When no sound output in the CD function, you can not listen to music reading data from a CD disc
if the servo motors in MD don’t work. This step is for checking the tray open/close motor among them.
4-3. TRAY OPEN/ CLOSE MOTOR
4-3-1. Solution
Replace IC401 or IC400 on MAIN board.
4-3-2. How to troubleshoot (Countermeasure)
1) Check MOT_OPEN & MOT_CLOSE signals from pin K4 & L4 of IC501 to IC400.
If no signal, check +1.8 V & + 5 V to IC400.
2) Check LOAD ± from IC400 to CN401 for driving the tray open/ close motor. It is about 3.85 Vp-p.
If no signal, check +5 V to IC401. If it has any trouble, replace it with a new one.
3) Check if the FFC cable is solidly connected between CN401 and MD.
4) Check the MD.
If the tray motor is short-circuit or has any trouble, it can not open or close the tray.
Please check the function after changing another MD.
4-3-3. Service hint (Any picture/ Remark)

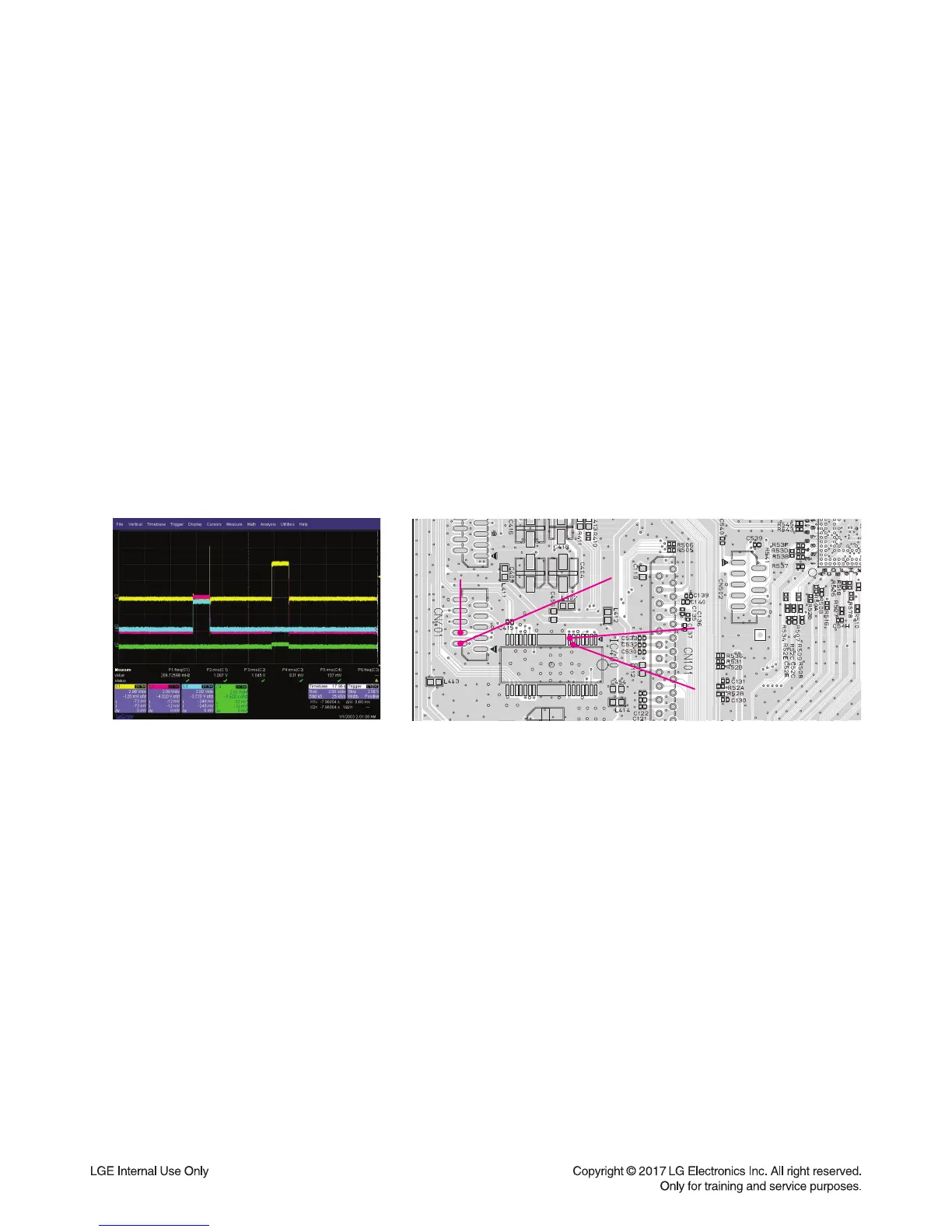

< Waveform
for driving tray open/ close motor >
< MAIN board top view >
tv{ js vz l
tv{vw lu
svROylkP
svT
