IC400
ONE POINT REPAIR GUIDE
NO OPERATION OF MD
When no sound output in the CD function, you can not listen to music reading data from a CD disc
if the servo motors in MD don’t work. This step is for checking the sled motor among them.
4-2. SLED MOTOR
4-2-1. Solution
Replace IC401 or IC400 on MAIN board.
4-2-2. How to troubleshoot (Countermeasure)
1) Check the SLDO signal from pin23 of IC401.
If no signal, check 3.3 V (RF) and X400.
2) Check the SLED+ & SLED- from IC400 to CN401 for driving SPINDLE motor. It is about 2.9 Vp-p.
If no signal, check +1.8 V and +5 V for IC400.
3) Check if the FFC cable is solidly connected between CN401 and MD.
4) Check the MD.
If the sled motor is sort-circuit or has any trouble, it can not move the pickup module.
Please check the function after changing another MD.
4-2-3. Service hint (Any picture/ Remark)

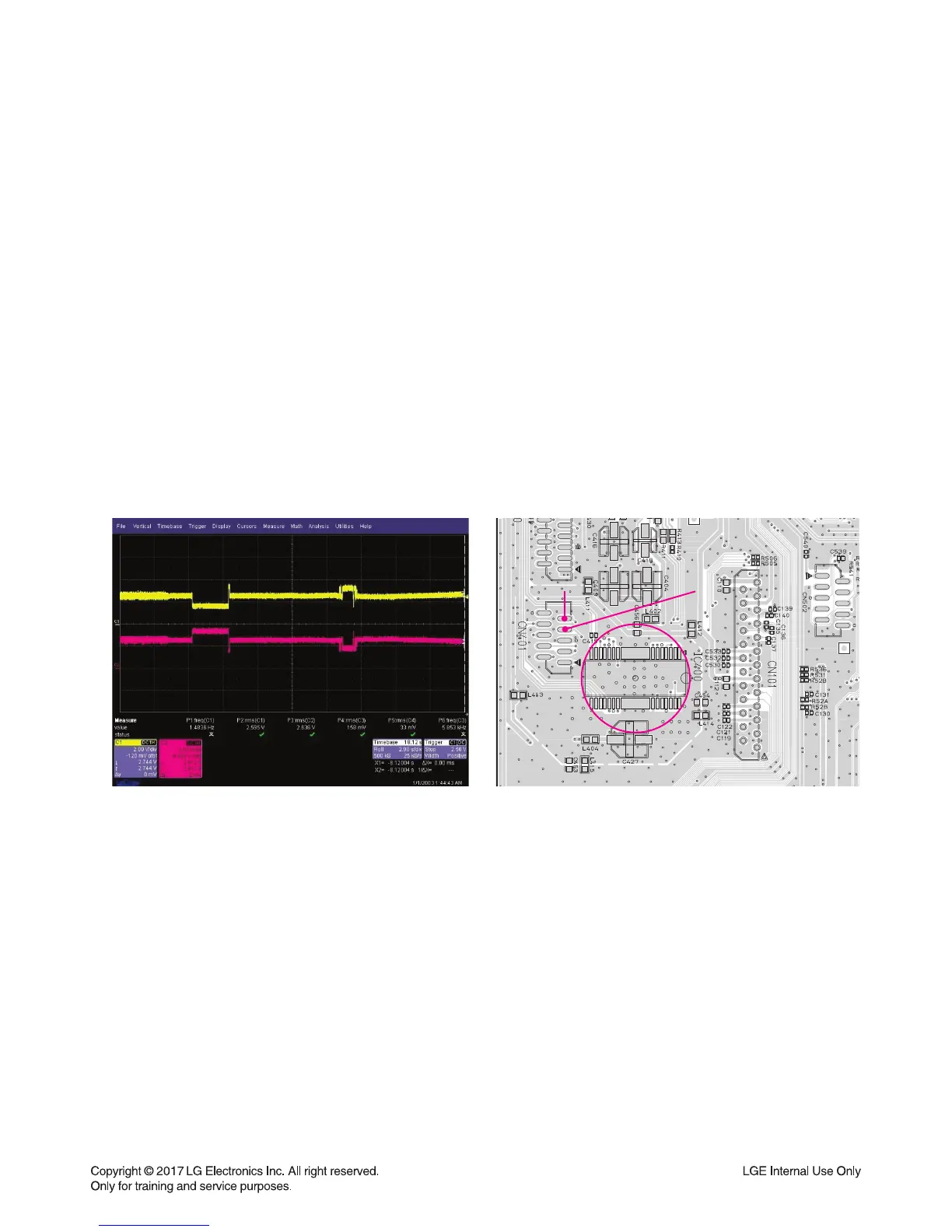

< Waveform of SL- & SL+
for driving SLED motor >
zsR
zsT
