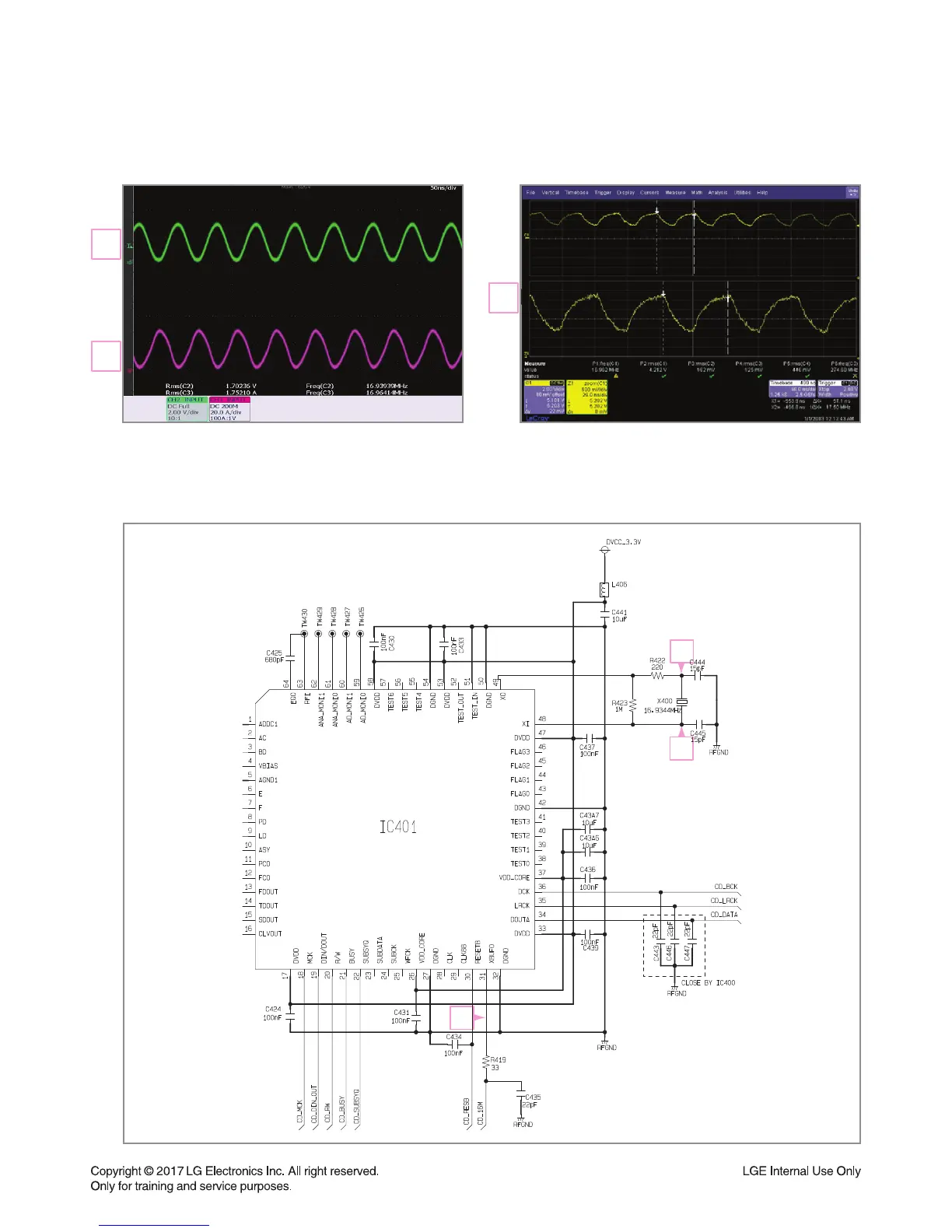

3. SERVO (IC401)
X
XI
XO
Fig 3-2. CD-16M
(IC401 pin31)
Fig 3-1. Crystal 16.9344 MHz
(X400)
11
10
12
10
11
12
