3-35

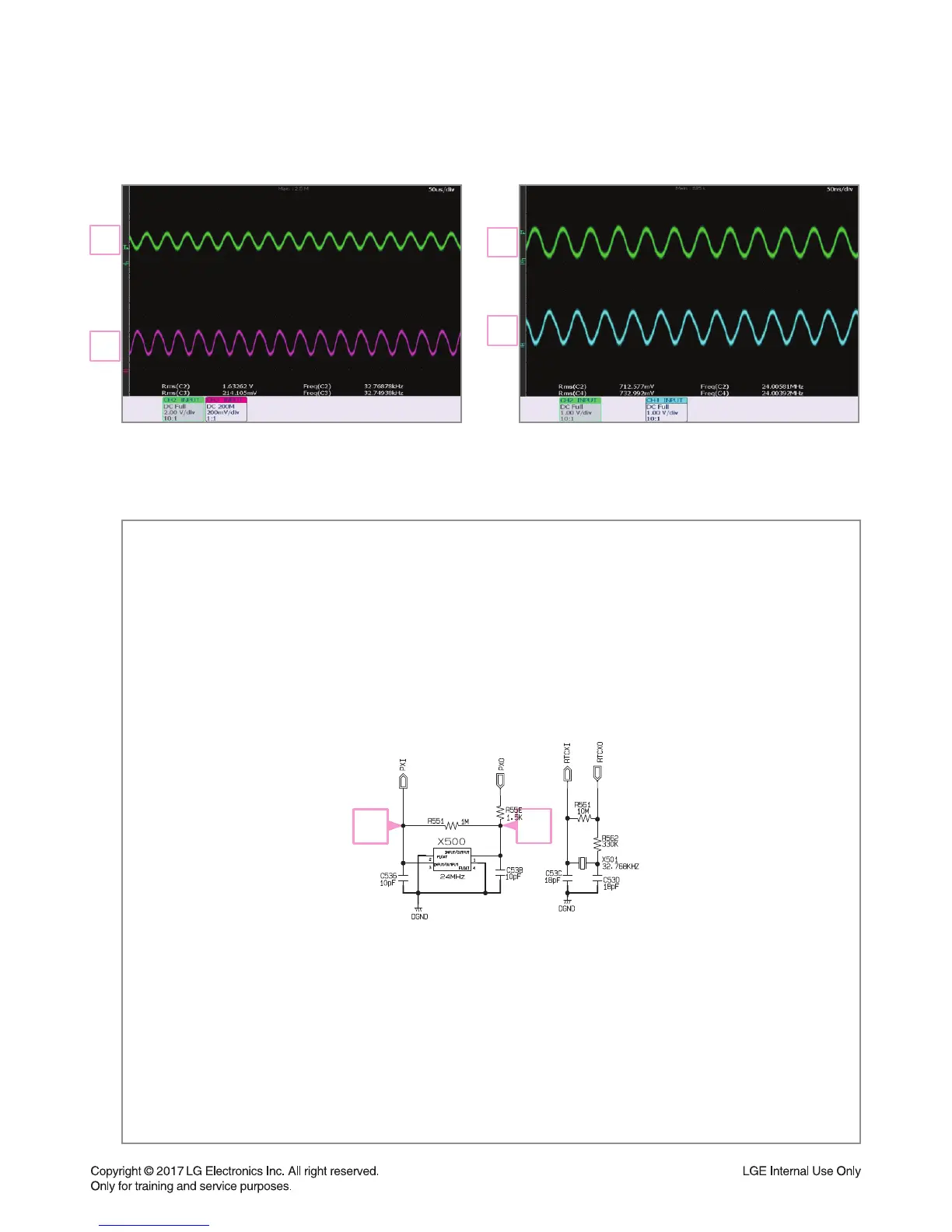

WAVEFORMS OF MAJOR CHECK POINT
1. DSP (IC501)
X
XI
XO
X
XI
XO
Fig 1-2. Crystal of system 24 MHz
( MAIN DSP : R551, C53B) X500
Fig 1-1. Crystal of RTC 32.768 MHz
(Both ends of R561) X501
This model is not used.
