3-14
ONE POINT REPAIR GUIDE
NO OPERATION OF MD
When no sound output in the CD function, you can not listen to music reading data from a CD disc
if the pickup module in MD doesn’t work. This step is for checking the laser focusing actuator.
4-5. LASER FOCUSING ACTUATOR
4-5-1. Solution
Replace IC401 or IC400 on MAIN board.
4-5-2. How to troubleshoot (Countermeasure)
The focusing actuator makes the laser beam keep a regular interval with the surface of a CD disc.
1) Check the FDO signal from pin21 of IC401.
 If no signal, check 3.3 V(RF) and X400.
2) Check F- & F+ from IC400 to CN400 for driving the focusing actuator.
 If no signal, check +1.8 V and +5 V for IC400.
3) Check if the FFC cable is solidly connected between CN400 and MD.
4) Check the MD.
 If the pick-up module has any trouble, it can not move the laser beam on the top or bottom side.
Please check the function after changing another MD.
4-5-3. Service hint (Any picture/ Remark)

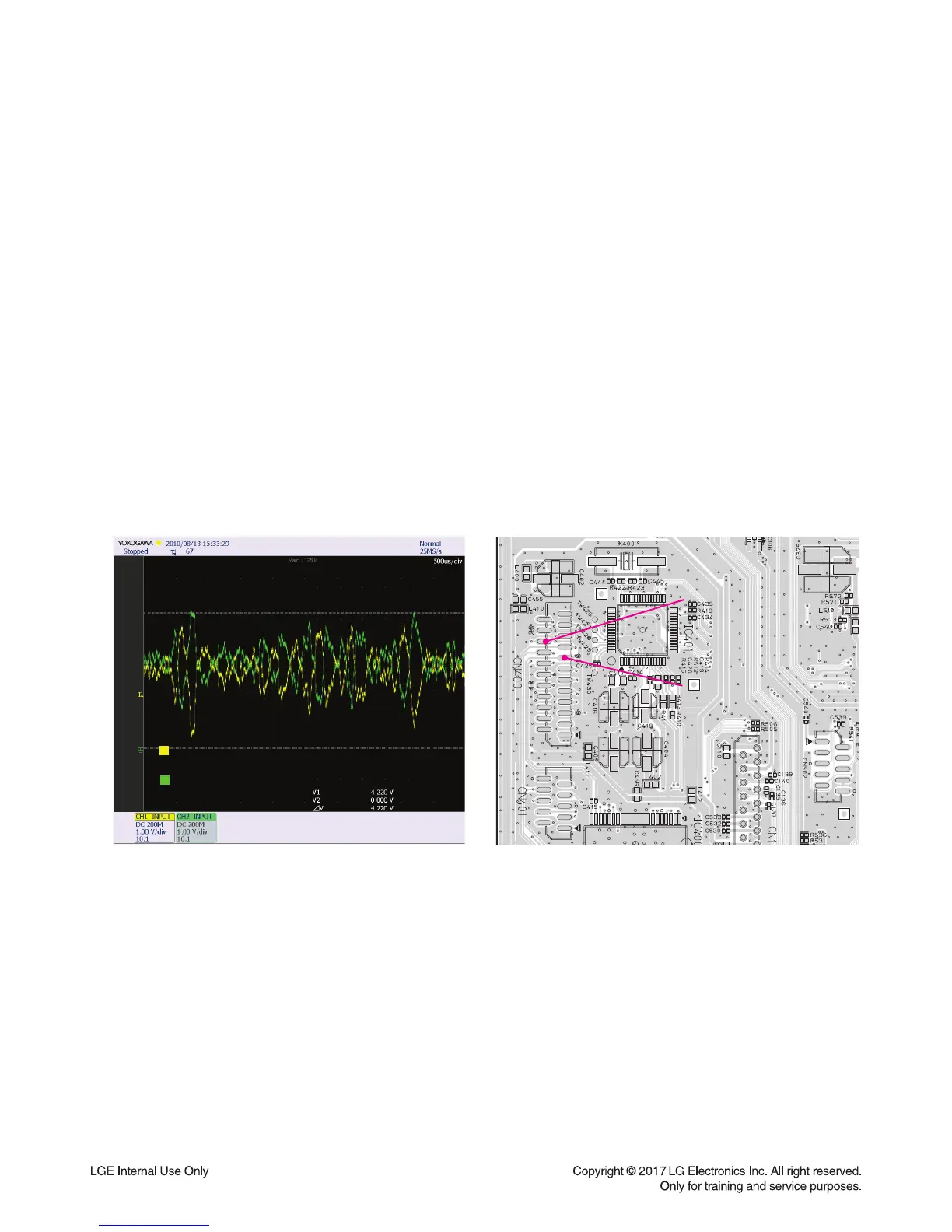

< Waveform of F±
for driving focusing actuator >
mT Gju[WW
mRGGju[WW
< MAIN board top view >
F-
F-
pin18 of CN400
pin18 of CN400
F+
F+
pin15 of CN400
pin15 of CN400
