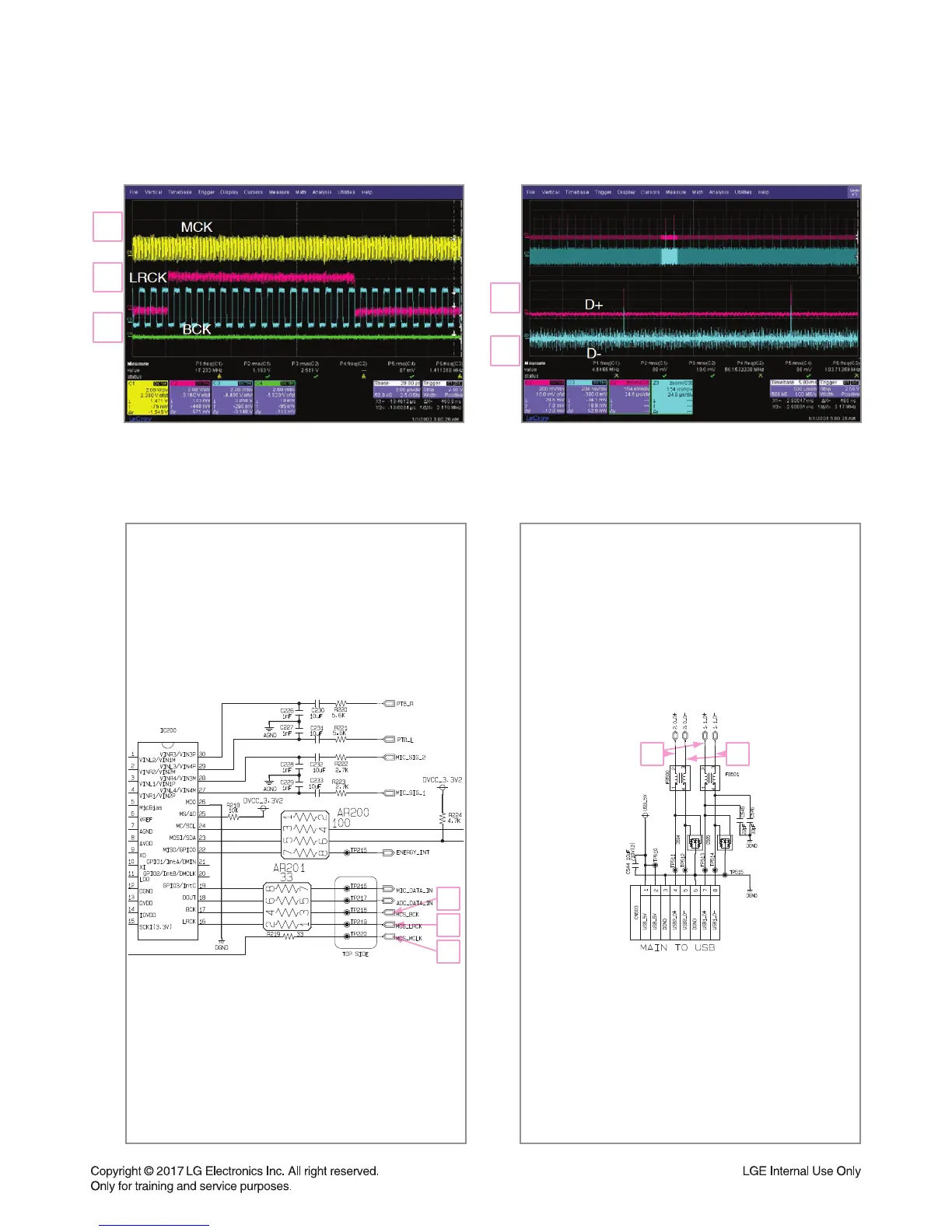

3-39
5. ADC 6. USB
Fig 6. USB D+/ D-
(CN503 pin4, pin5, pin7, pin8)
Fig 5. ADC I2S
(IC200 pin16, pin17, pin18)
23
21
22
24
25
2524
23
22
21
