Disassembly, assembly and repairing of main parts
Cautions for disassembling
▶ Make sure to remove the batteries before disassembling the product.
1. Most parts are screwed in or inserted mutually. Please refer to theexploded diagram to disassem
-
ble the product in the correctsequence.
2. Please refrain from disassembling parts other than main ones. Alsothere is no need to disassemble
the product in more details than theexploded diagram.
How disassemble main parts

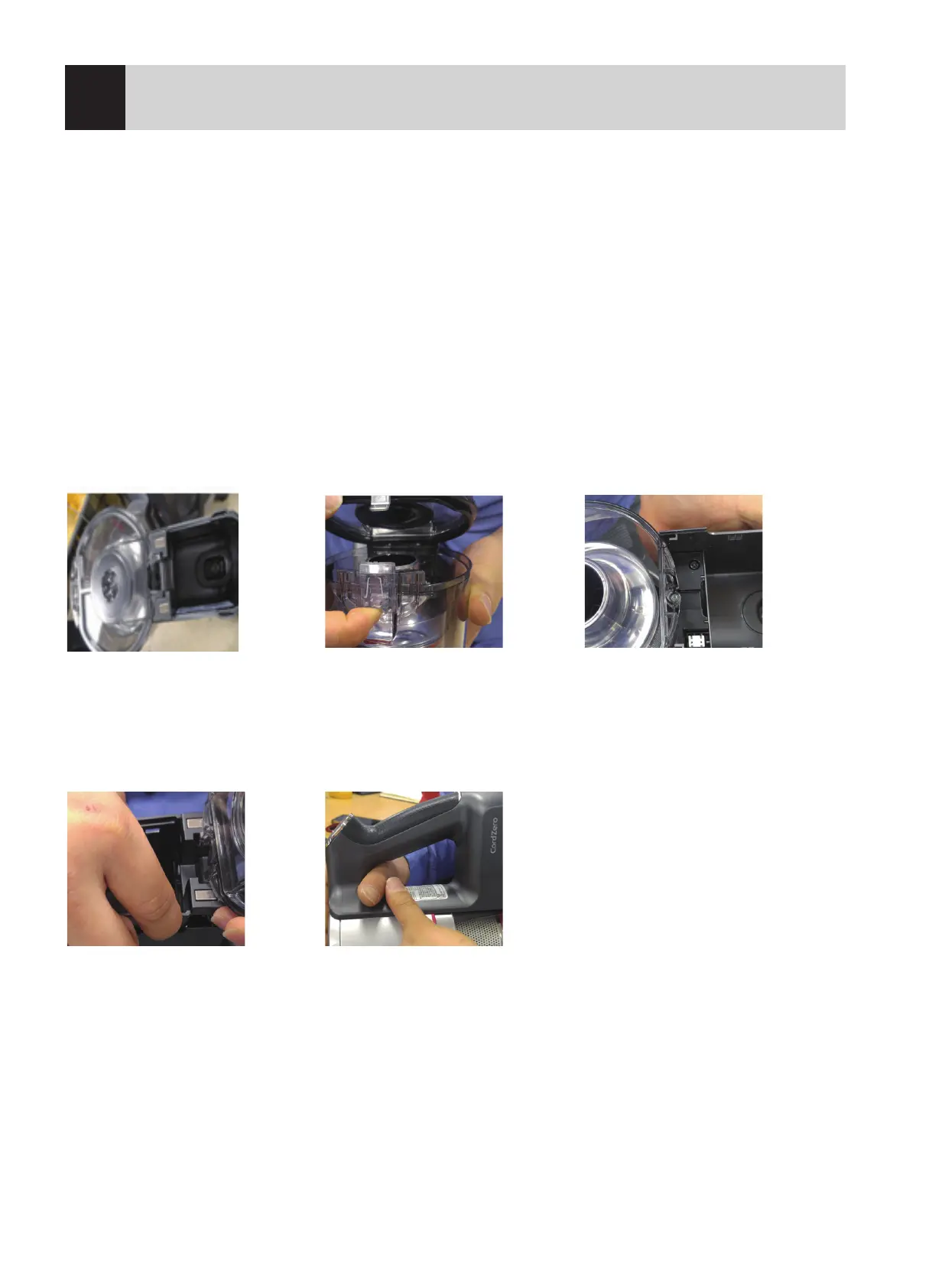

1. Replacing the handy part
(1) Remove the screws on the
bottom of the product.
(2) Push the lever upwards to
remove the plate.
(3) Remove the screws in the
lower part.
(4) Push and pull the
supporter cover as in the
figure to remove it.
(5) Push the handy part as
much as you can.
(6) Reassemble the whole part
in the reverse sequence.
