LG D1417 Series Service Manual

- 17 -

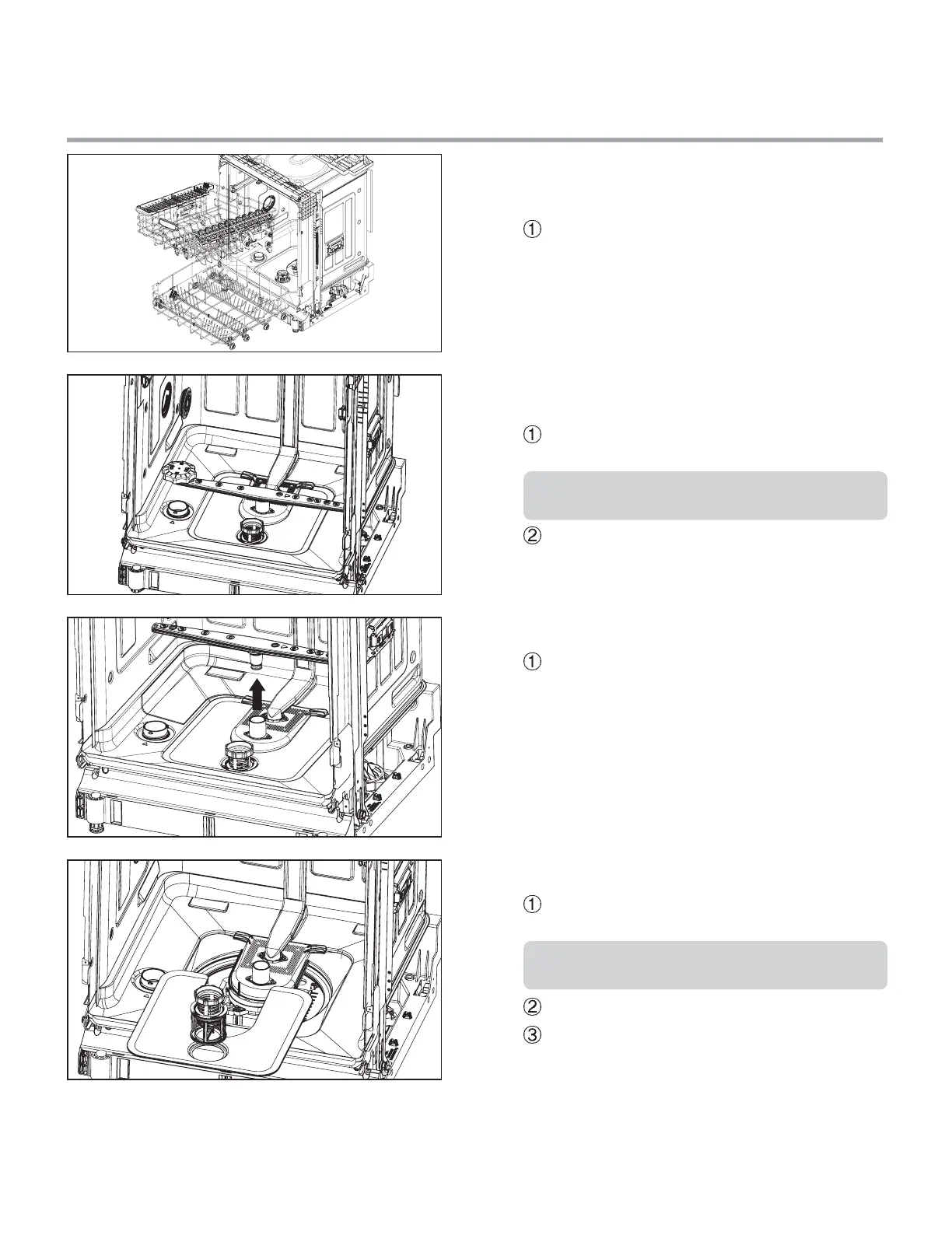

5. Tub assembly
1) Rack
Remove the Upper rack and Lower rack.
2)
Air guide Nut and Water softner Cap&Nut
Turn the Air guide Nut counterclockwise.
(Special tool might be needed.)
Be careful the rubber packing of air guide
assembly should not be lost.
Turn the Water softner Cap & Nut
counterclockwise.
4) Filter Assembly
Turn inner filter counterclockwise and lift
inner filter and middle filter.
You can disassemble inner filter and
middle filter by pulling opposite direction.
Lift up main filter.
Lift up micro filter.
3) Nozzle
Pull up the nozzle.
