- 18
-
8) T
ub sub Assembly
Remove side 4 screws.
Remove 3 Earth screw of right side.
Remove rear 4 screws.
- 18
-

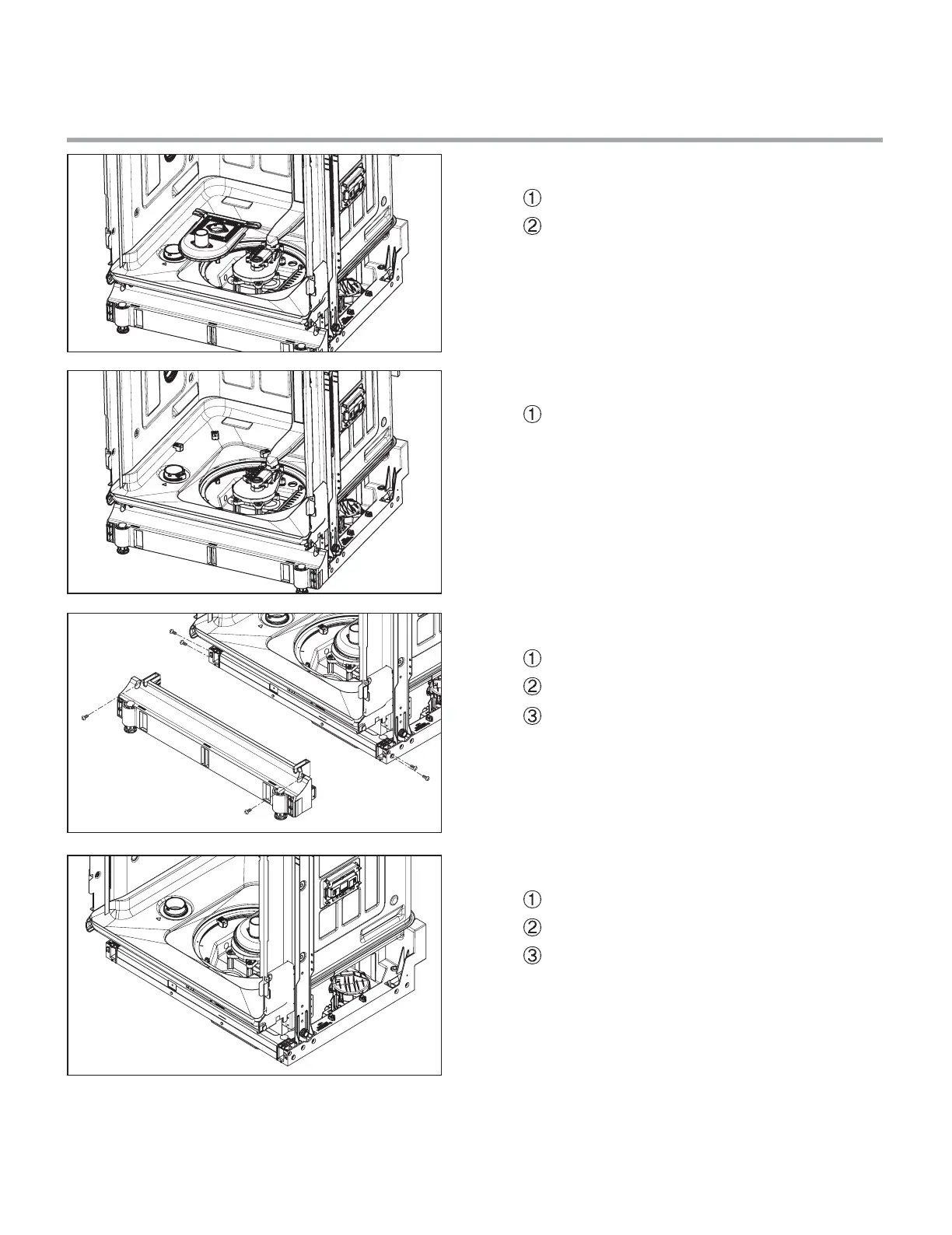

5) Nozzle Holder
Disconnect the water guide
Remove 4screws and lift it up
6) Sump Holder
Remove the Sump Holder(5EA).
7) Base spacer
Remove front 2 screws.
Remove side 4 screws.
Lift the front side of dishwasher and pull
the base spacer forward.
17
19
Table of Contents
Table of Contents
3
Caution
4
Specifications
5
Parts Name
6
Features & Technical Explanation
7
Wiring Diagram
12
Program Chart(Schematic Diagram)
13
How to Disassemble
14
Trouble Shooting Methods
26
Trouble Shooting According to Displayed Error Message
26
Trouble Diagnoses and Repair by Symptom
28
Installation Instruction
32
Exploded View
36
