9
1. If the end of drain hose does not fit to the
drain line, use a rubber connector(not
supplied) that is resistant to heat and
detergent.
2. This should be available from a plumbing
shop or DIY merchants.

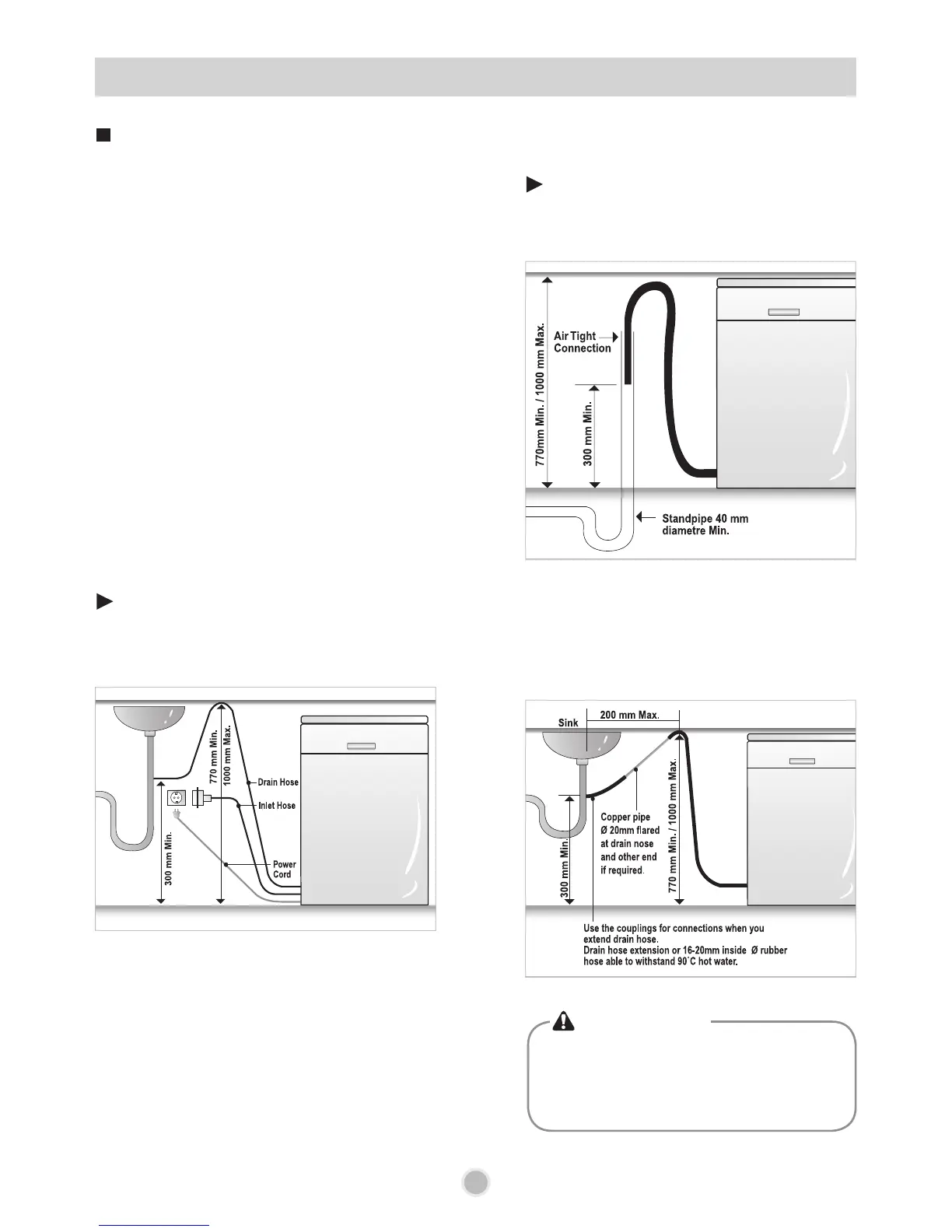

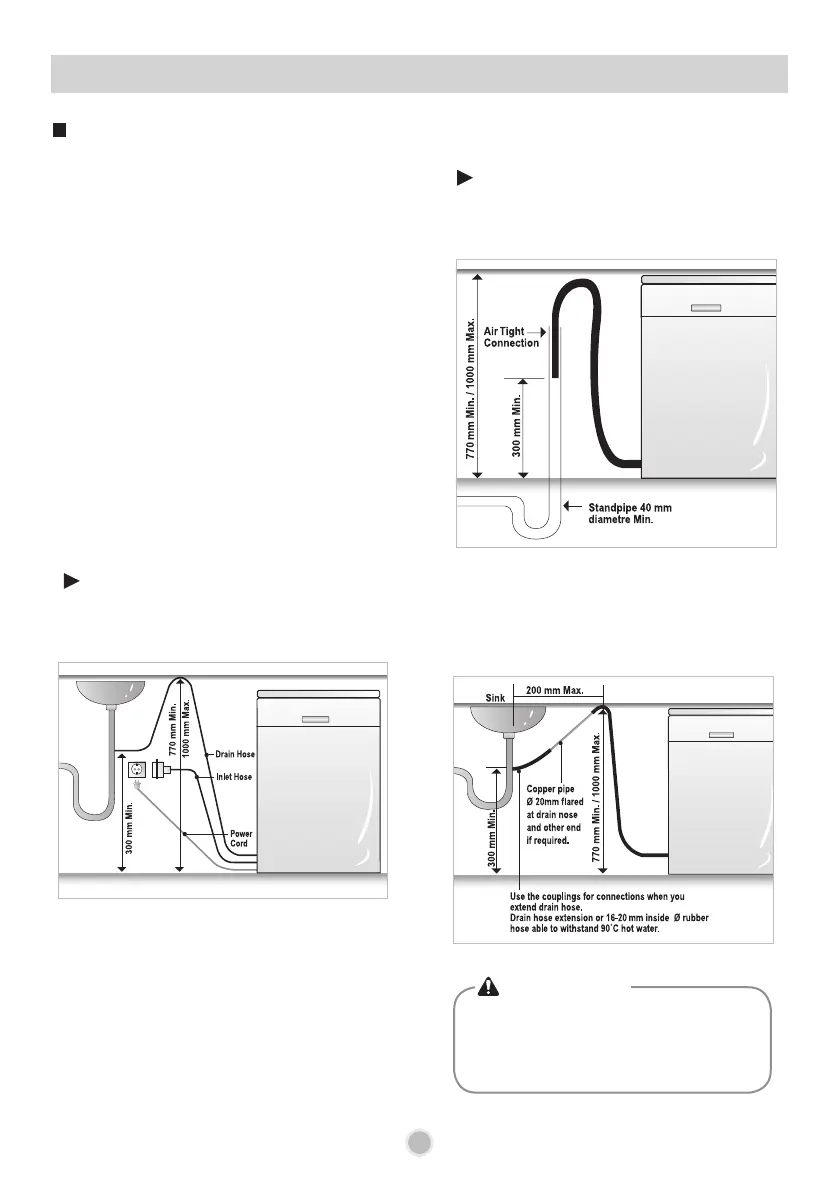

3. There are two typical connections as shown
in Figure A, B.
The S trap spigot must be drilled out cleanly
and free of obstruction to its maximum
internal diameter, if used for drainage.
To prevent siphoning, one of the following
methods must be used:
When the drain hose is connected to a sink
S trap or waste disposal unit, the hose must
be looped up to the underside of the bench
top and secured.
Fig. A
Drain hose Extension
Extend drain hose as shown below.
When the drain hose is connected to a
separate standpipe, it is essential that an
airtight connection be made.
Refer to Fig.B
Fig. B : Drainage connection - stand pipe.
INSTALLATION INSTRUCTIONS
Installation of drain hose
•
When you connect or extend drain hose,
make sure that drain hose is not
kinked.
(Bends should have a 40 mm radius.)
CAUTION
To Next Page
