Connecting to your TV
Connecting Video / Audio
Cable
Connect the VIDEO/AUDIO OUT on the unit to
VIDEO/AUDIO IN on TV with A/V cable, such as
VIDEO with yellow, AUDIO Left/Right with white/
red.
TV
Connecting Component Video
Cable
Connect the COMPONENT VIDEO OUT (Y P
B
P
R
)
jacks on the unit to the corresponding input jacks
on the TV using Component video cable, such as Y
with green, Pb with blue, and Pr with red.
y
If your TV accepts progressive format signals, you
must use this connection and set [Progressive
Scan] to [On] on the setup menu.(See page 12)
y
You should still connect the AUDIO cable
between the unit and TV.

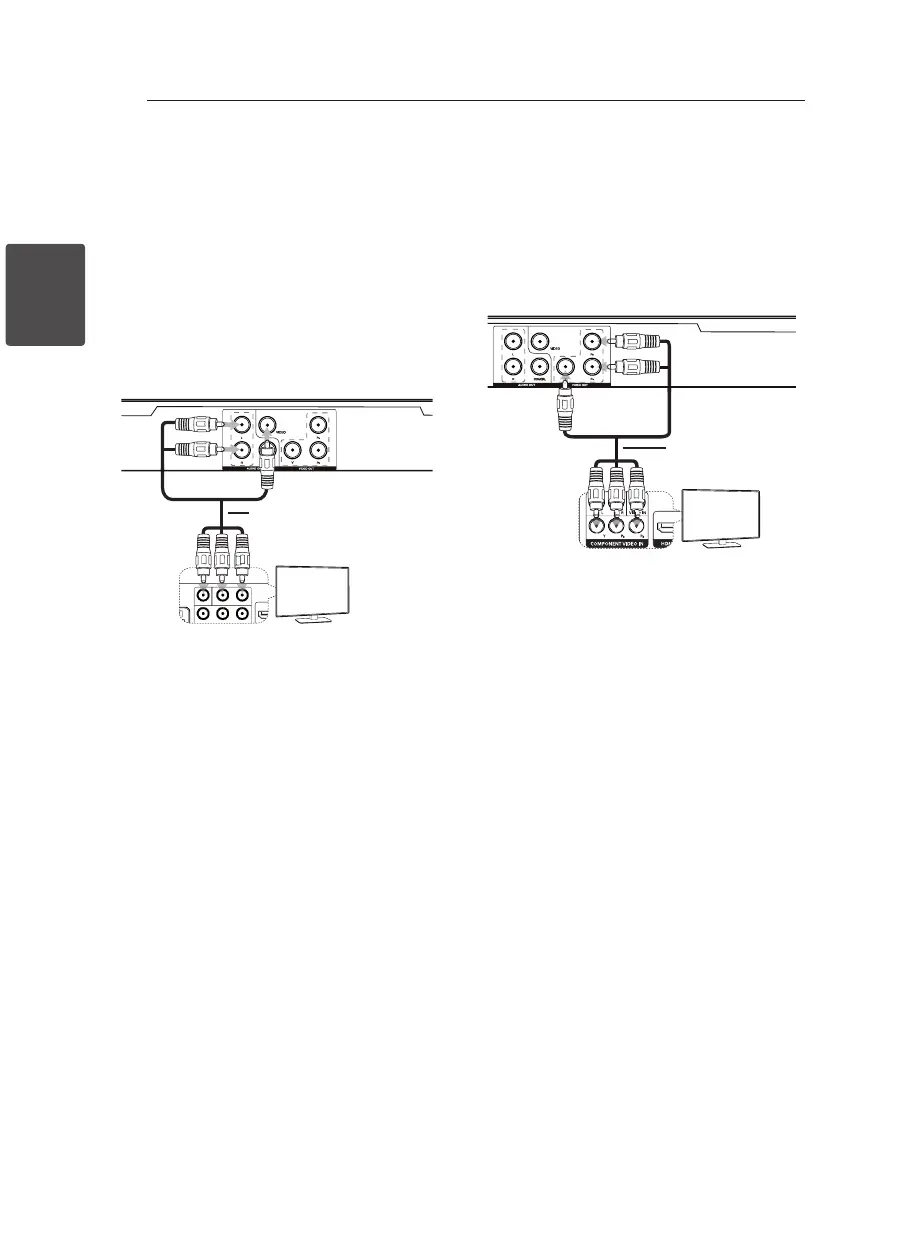

RCA A/V cable
Rear of the Unit
Rear of the Unit
Component Cable
To Next Page
