LG DP540H User Manual

Connecting10
Connecting
2

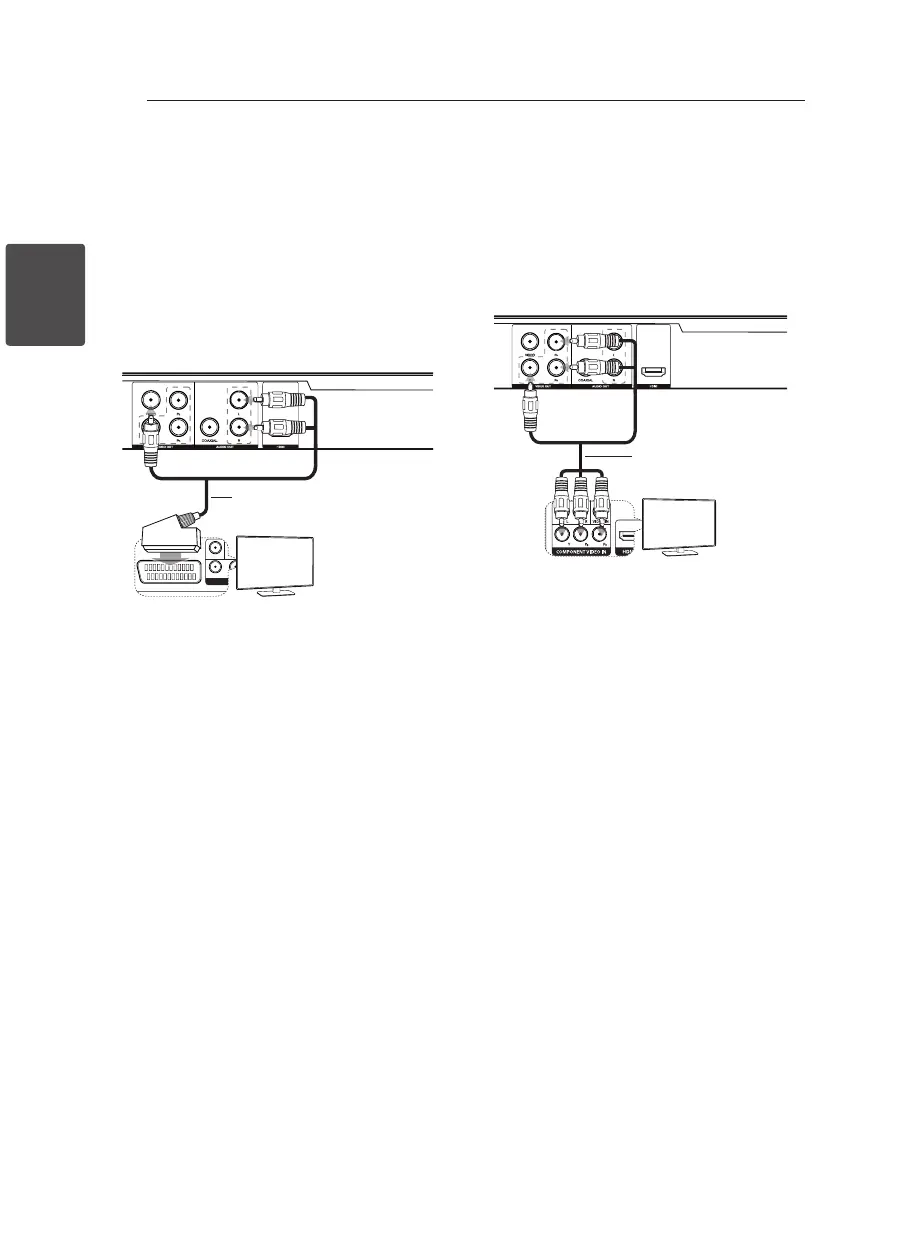

Connecting to your TV
Connecting RCA to SCART
Cable
Using the RCA to SCART cable, connect the RCA
cable ends to the corresponding VIDEO/AUDIO
OUTPUT jacks on the unit and connect the scart
cable to the scart socket on the TV.
COMPONENT VIDE
VIDEO IN L
P
B
Y
RCA to SCART cable
TV
Rear of the Unit
Connecting Component Video
Cable
Connect the COMPONENT/PROGRESSIVE SCAN
OUTPUT jacks on the unit to the corresponding
input jacks on the TV using Component video
cable, such as Y with green, Pb with blue, and Pr
with red.
Component
Cable
Rear of the Unit
TV
y
You should still connect the AUDIO cable
between the unit and TV.
