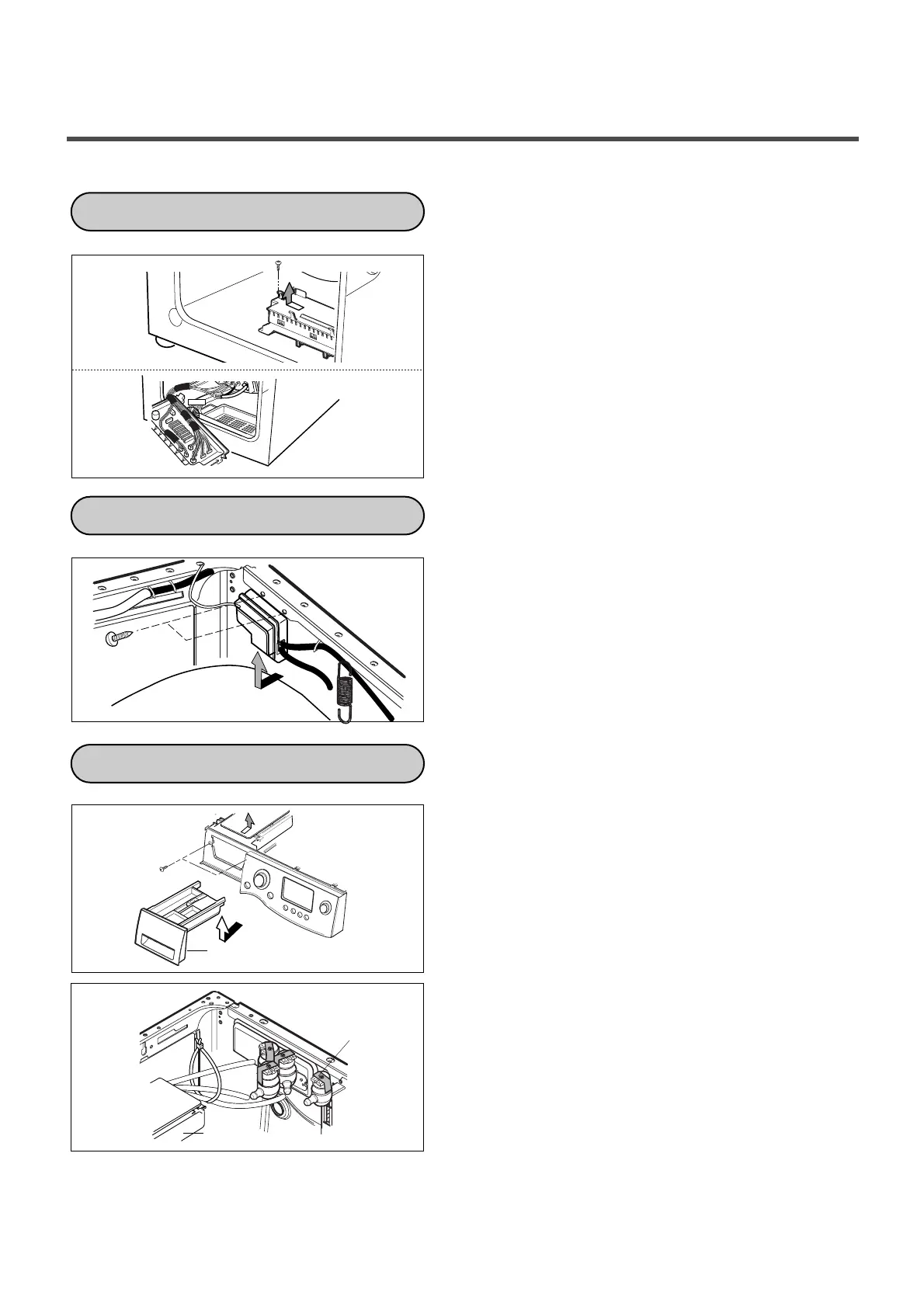

① The back cover is removed.
② One screw is unscrewed.
③ Pull the PWB assembly(Main) to arrow
direction
④ Two screws is unscrewed.
⑤ The cover of PWB assembly(Main) is
removed.
⑥ Disconnect connector from the wiring.
① The plate assembly(Top) disassembled.
② The cover of PWB assembly(Power) is
removed.
(Push the hook bellow.)
④ Disconnect connector from the PWB.
⑤ Two screw is unscrewed.
① The plate assembly(Top) are disassembled.
② Pull the drawer to arrow direction.
③ Two screws are unscrewed.
① The hose clamps and the hose are
disassembled.
② The ventilation bellows are disassembled on
the tub.
