3-12
ONE POINT REPAIR GUIDE
3. USB NO DETECT
When USB insert, USB no detect on the unit.
3-1. Solution
Replace IC350.
3-2. How to troubleshoot (Countermeasure)
1) Please check IC350.
Pin3 : 5 V
2) If it is not OK, replace IC350.

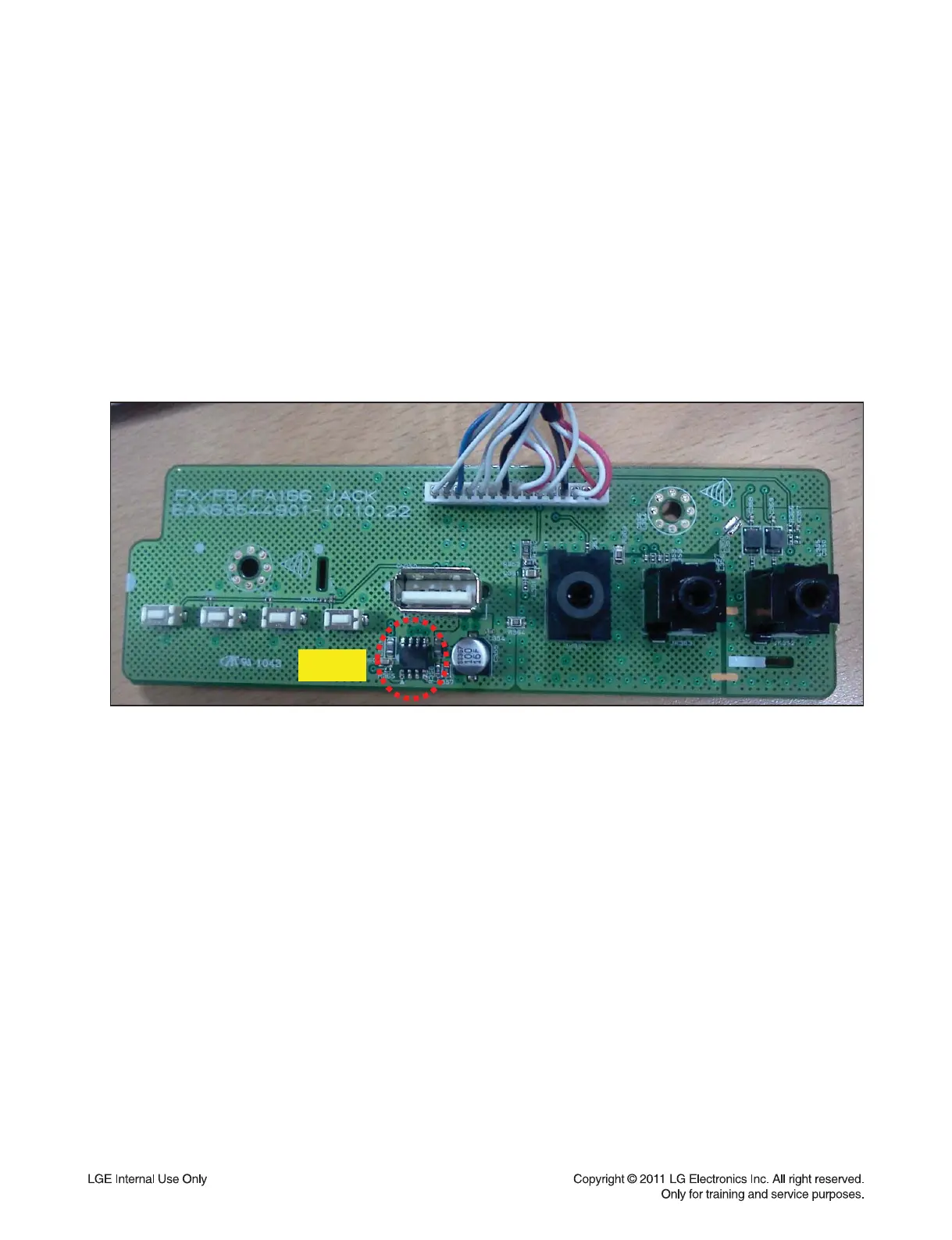

3-3. Service hint (Any picture / Remark)
IC
35
0
< JACK board top view >
28
30
Table of Contents
Section 1 Summary
3
Table of Contents
3
Servicing Precautions
4
Esd Precautions
6
Service Information for Eeprom
7
Program Download Guide
8
Specifications
11
Section 2 Cabinet & Main Chassis
12
Exploded Views
14
Cabinet and Main Frame Section (Fa166)
14
Deck Mechanism Section (Scp-03B)
15
Packing Accessory Section
16
Speaker Section (Fas166F)
17
Section 3 Electrical
18
Training Master
19
No Sound from Speakers
19
No Sound in Port. in Function
20
No Sound in Ipod Function
21
No Sound in Am/Fm Function
22
No Sound in CD Function
23
No Sound in Usb Function
25
No Power
26
One Point Repair Guide
27
No Power Problem
27
Speaker no Audio Output
28
Usb no Detect
29
No Booting
30
Electrical Troubleshooting Guide
31
Power (Smps)
31
P-Sens
32
Vkk Check
32
Μ-COM PART CHECK-1
33
Μ-COM PART CHECK-2
33
Fld Display Check
34
Touch Part Check
35
Pwm Modulation Check
36
Power Amp Part Check
37
Tuner Function Check
38
Usb Function Check
39
CD Function Check
40
Waveforms
41
Servo
41
Motor Drive
41
Audio Path
42
Adc
43
Ipod
43
Usb
44
Crystal
44
Wiring Diagram
46
Block Diagrams
47
Main Block Diagram
47
Smps Block Diagram
48
Circuit Diagrams
49
Smps Circuit Diagram
49
Main-Micom Circuit Diagram
50
Main-Adc/Ipod Circuit Diagram
51
Main-Mpeg(Dsp) Circuit Diagram
52
Main-Rf Servo Circuit Diagram
53
Main-Power Circuit Diagram
54
Amp Circuit Diagram
55
Front Circuit Diagram
56
Front Jack Circuit Diagram
57
Ipod Docking Circuit Diagram
58
Circuit Voltage Chart
59
Printed Circuit Board Diagrams
60
Main P.C.board
60
Smps P.C.board
61
Amp P.C.board
62
Front P.C.board
63
Front Jack P.C.board
64
Ipod Docking P.C.board
64
