LG FB163U - WAVEFORMS OF MAJOR CHECK POINTS

3-39
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

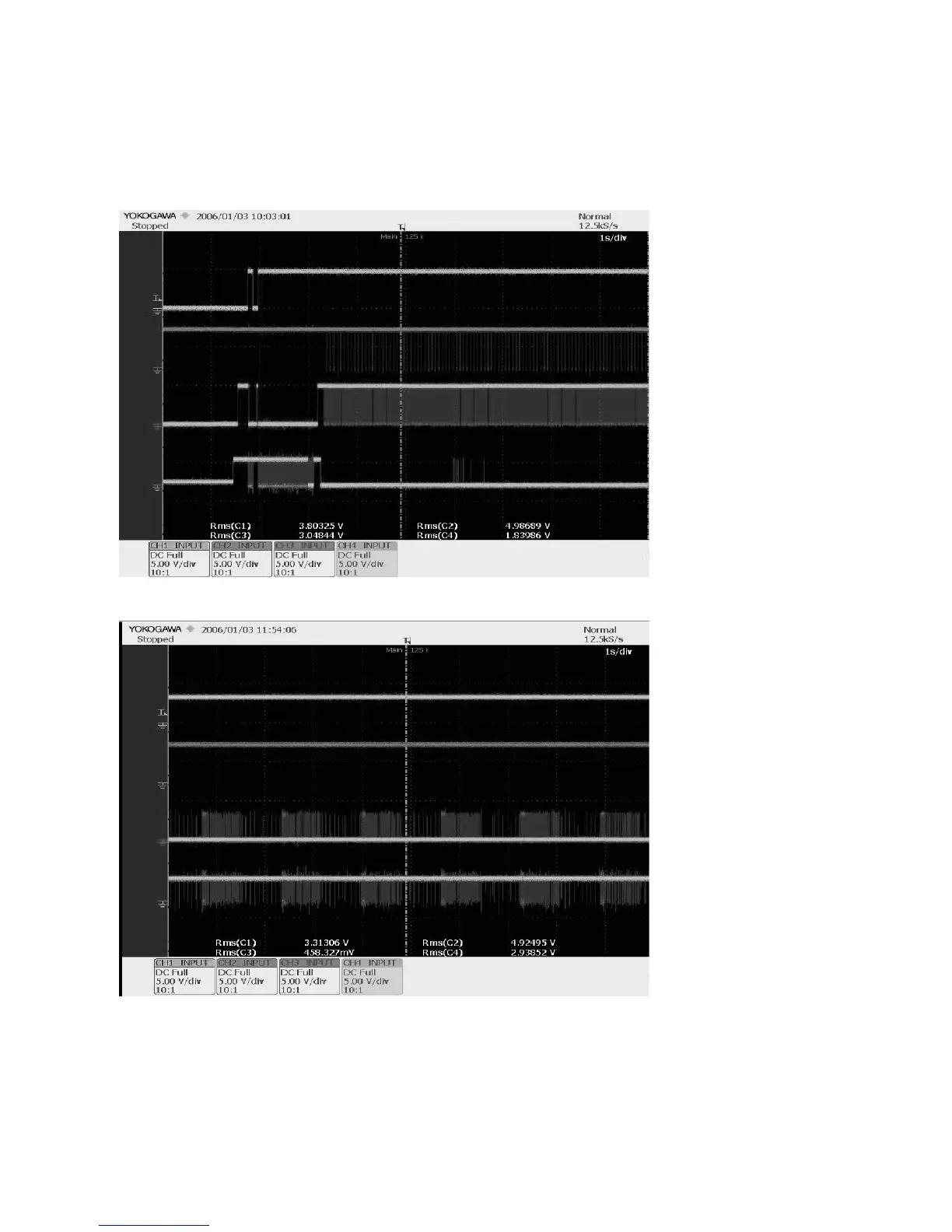

1. WHEN POWER ON, RESET & DATA ETC WAVEFORM
1.RESET(DVD)
2.RX
3.TX
4.LCS3#(FLASH)
Playing at USB
function
1.HRST#
2.5V
3.D-
4.D+
WAVEFORMS OF MAJOR CHECK POINT
