Copyright © 2010 LG Electronics. Inc. All right reserved. - 20 - LGE Internal Use Only
Only for training and service purposes

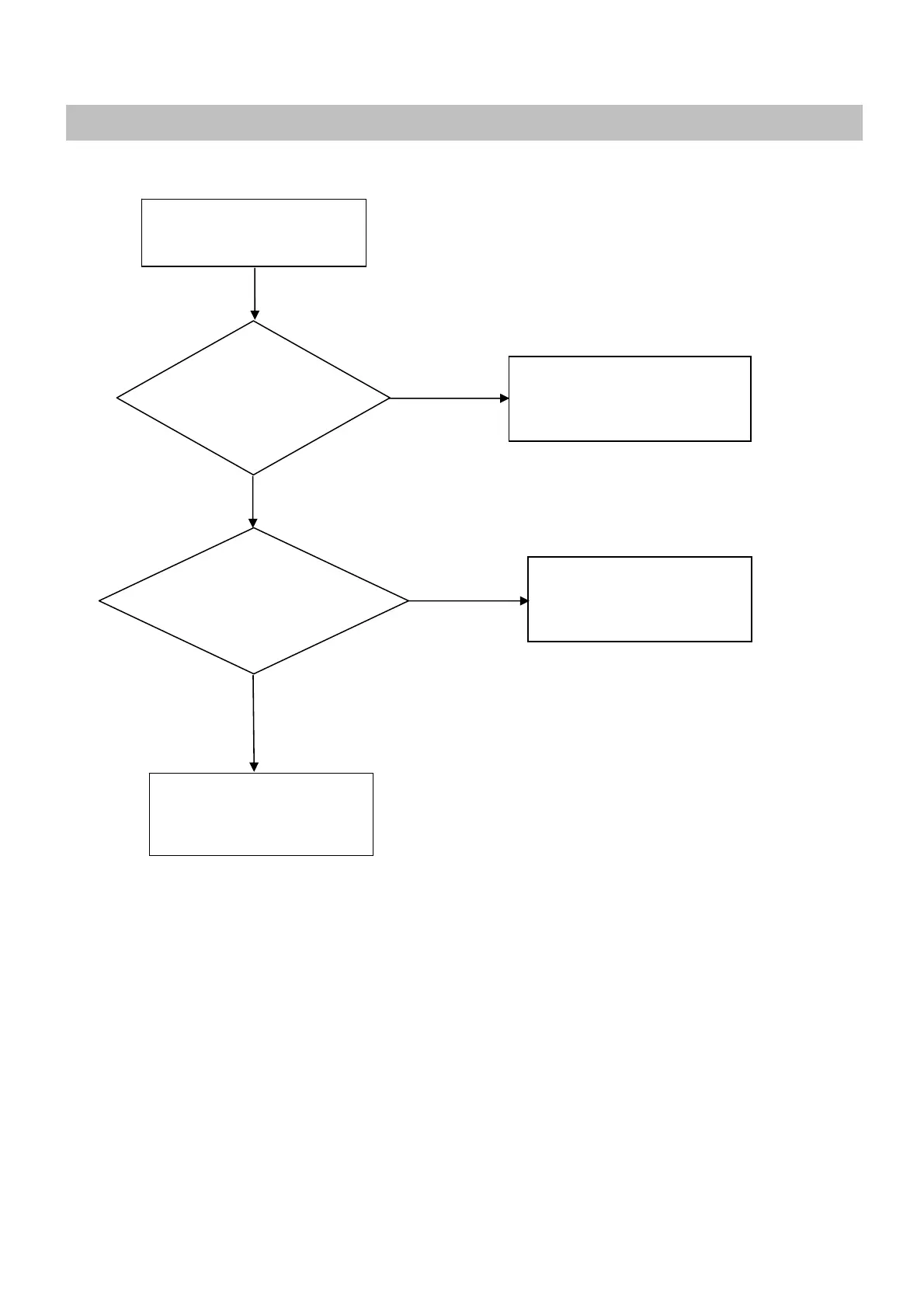

3. NO RASTER (OSD IS NOT DISPLAY)-MSTAR
1. Check C416 C417
2. Check X401
3. Trouble in Scaler IC
Scaler pin 63, 64
oscillates as
12MHz?
No Raster
(OSD Is Not Displayed)
Check connection line from
D-SUB to Scaler
Trouble in cable or LCD
module
NO
YES
YES
NO
Scaler IC
pin 14 H Sync ?
pin 15 V Sync?
