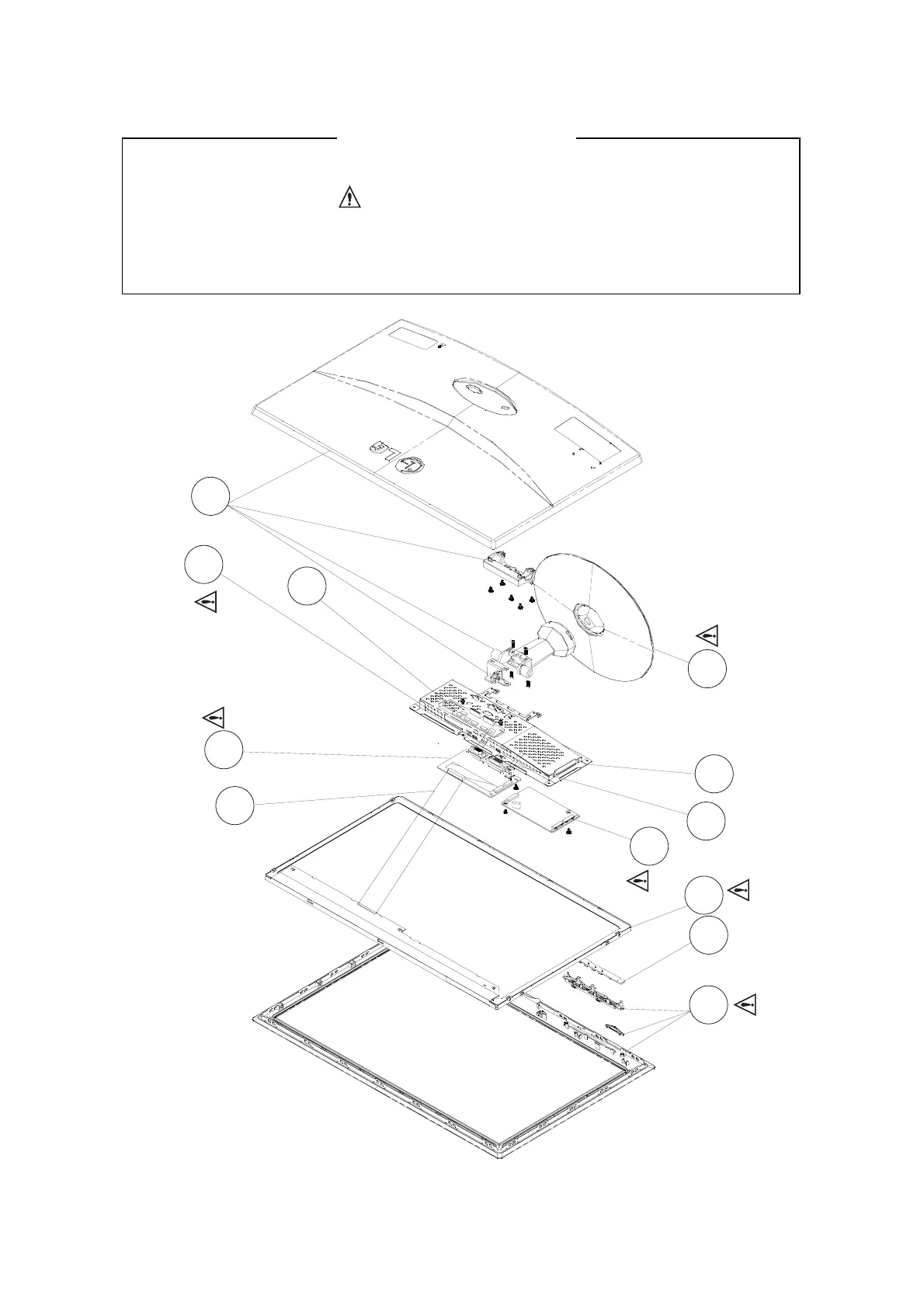

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics.
These parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
110
100
050
070
080
020
030
040
090
120
010
060
