LG FLATRON E2040S - INTERNAL COMPONENTS DISASSEMBLY; KEYBOARD AND CABLE DISCONNECTION; BOARD AND BEZEL REMOVAL


Copyright © 2010 LG Electronics. Inc. All right reserved. - 9 - LGE Internal Use Only
Only for training and service purposes
#7

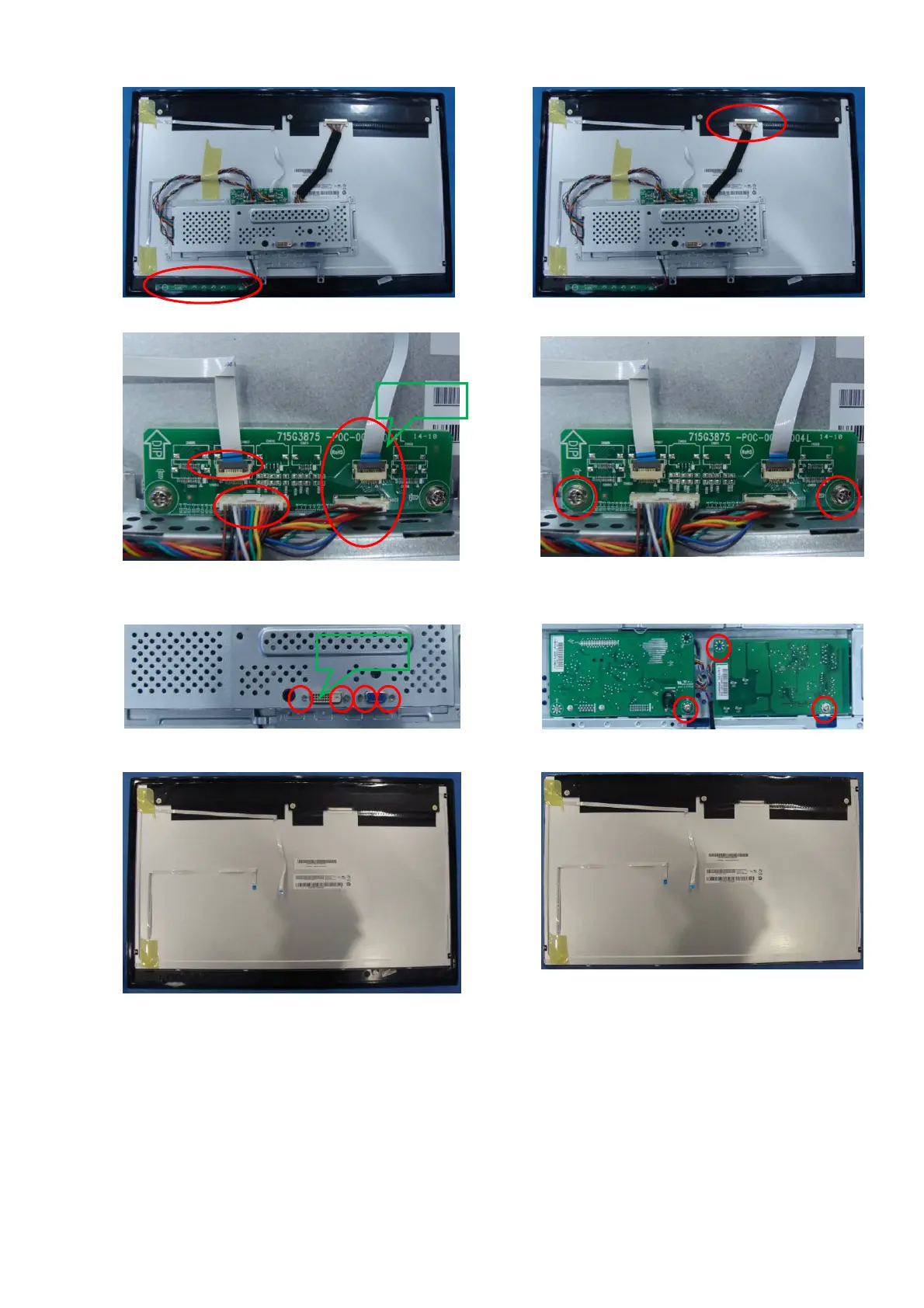

Pull the key board out of bezel.
#8
Disassembly the LVDS cable.
#9
Disassemble the FFC cable and converter board
to converter board cables.
#10
Unscrew the 2 screws on the converter board.
#11
Unscrew the 4 screws on the main board.
#12
Remove the main board and the power board.
#13
Removethebezel.
#14
Thepanel.
Optional
Optional
