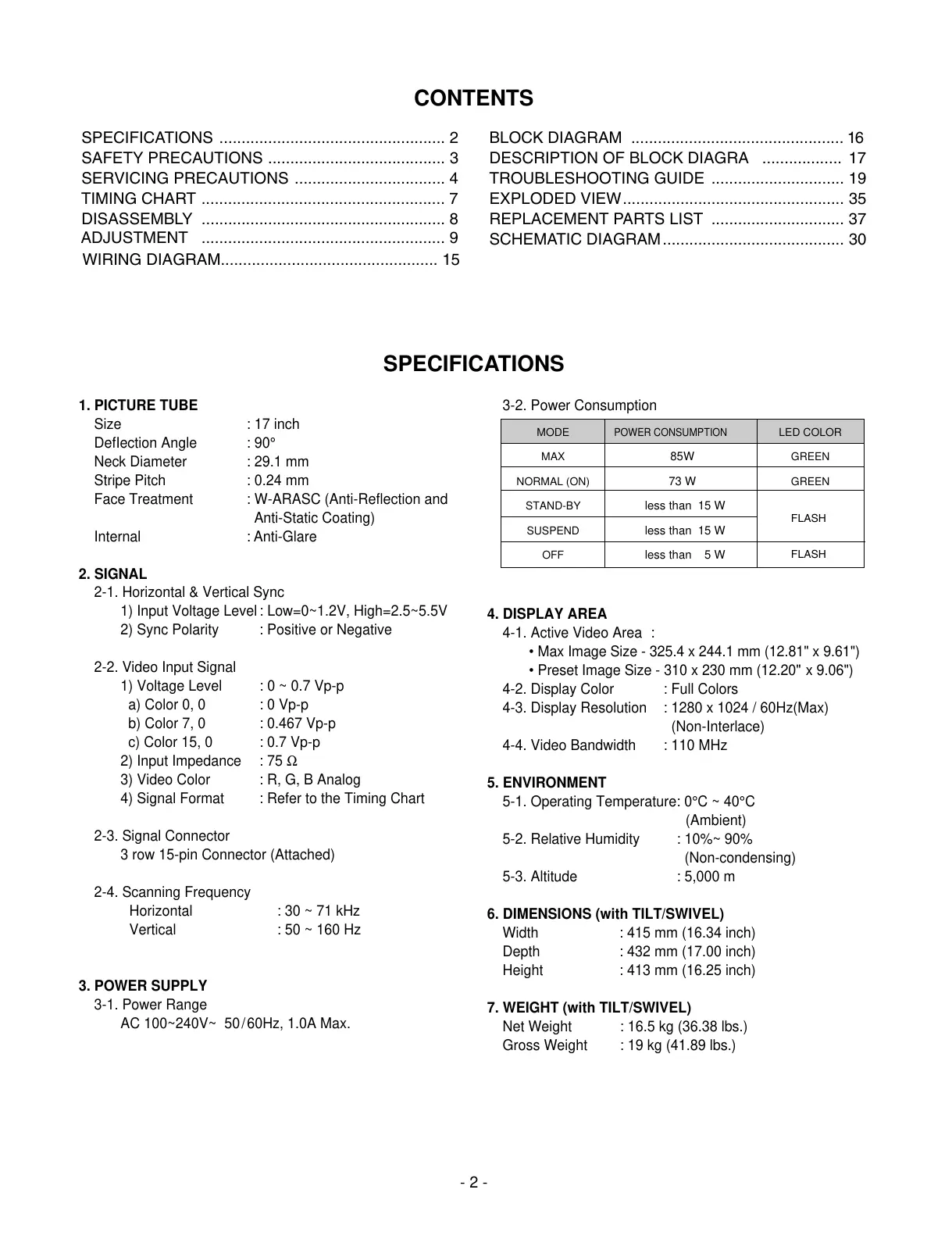

SPECIFICATIONS ................................................... 2
SAFETY PRECAUTIONS
........................................ 3
SERVICING PRECAUTIONS ..................................
4
DISASSEMB
LY ....................................................... 8
BLOCK DIAGRAM ...............................................
. 16
DESCRIPTION OF BLOCK DIAGRA .................. 17
TROUBLESHOOTING GUIDE
.............................. 19
EXPLODED VIE
W.................................................. 35
REPLACEMENT
PARTS LIST .............................. 37
SCHEM
ATIC DIAGRAM ......................................... 30
TIMING CHA
RT ....................................................... 7
ADJUSTMENT ......................................................
. 9
WIRING DIAGRAM................................................
. 15
1. PICTURE TUBE
Size : 17 inch
DefIection Angle : 90°
Neck Diameter : 29.1 mm
Stripe Pitch : 0.24 mm
Face Treatment : W-ARASC (Anti-Reflection and
Anti-Static Coating)
Internal : Anti-Glare
2. SIGNAL
2-1. Horizontal & Vertical Sync
1) Input Voltage Level: Low=0~1.2V, High=2.5~5.5V
2) Sync Polarity : Positive or Negative
2-2. Video Input Signal
1) Voltage Level : 0 ~ 0.7 Vp-p
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.7 Vp-p
2) Input Impedance : 75 Ω
3) Video Color : R, G, B Analog
4) Signal Format : Refer to the Timing Chart
2-3. Signal Connector
3 row 15-pin Connector (Attached)
2-4. Scanning Frequency
Horizontal : 30 ~ 71 kHz
Vertical : 50 ~ 160 Hz
3. POWER SUPPLY
3-1. Power Range
AC 100~240V~ 50/60Hz, 1.0A Max.
3-2. Power Consumption
4. DISPLAY AREA
4-1. Active Video Area :
• Max Image Size - 325.4 x 244.1 mm (12.81" x 9.61")
• Preset Image Size - 310 x 230 mm (12.20" x 9.06")
4-2. Display Color : Full Colors
4-3. Display Resolution : 1280 x 1024 / 60Hz(Max)
(Non-Interlace)
4-4. Video Bandwidth : 110 MHz
5. ENVIRONMENT
5-1. Operating Temperature: 0°C ~ 40°C
(Ambient)
5-2. Relative Humidity : 10%~ 90%
(Non-condensing)
5-3. Altitude : 5,000 m
6. DIMENSIONS (with TILT/SWIVEL)
Width : 415 mm (16.34 inch)
Depth : 432 mm (17.00 inch)
Height : 413 mm (16.25 inch)
7. WEIGHT (with TILT/SWIVEL)
Net Weight : 16.5 kg (36.38 lbs.)
Gross Weight : 19 kg (41.89 lbs.)
SPECIFICATIONS
MODE
MAX
NORMAL (ON)
STAND-BY
SUSPEND
OFF
LED COLOR
GREEN
GREEN
FLASH
FLASH
POWER CONSUMPTION
85W
73 W
less than 15 W
less than 15 W
less than 5 W
To Next Page
