- 7 -

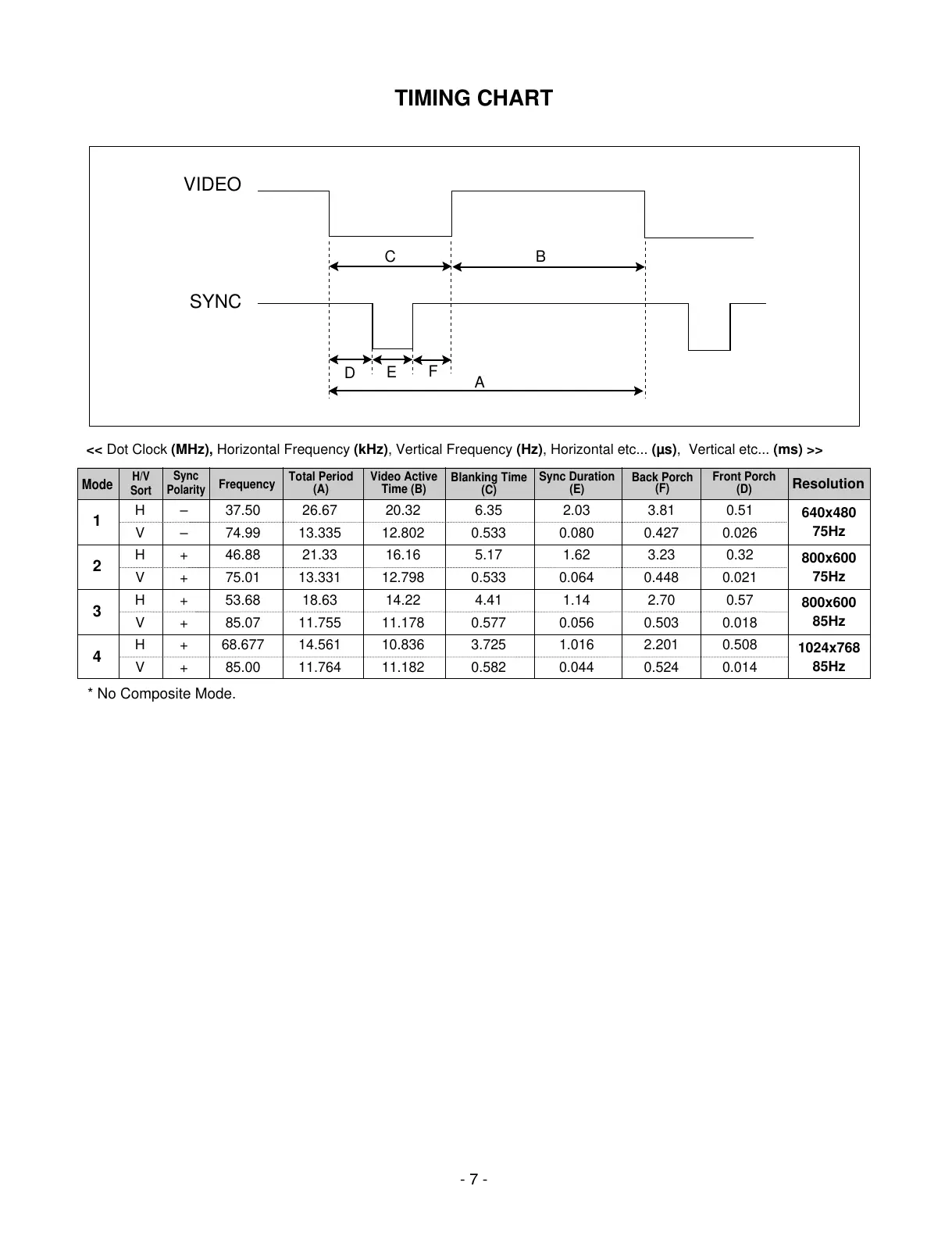

TIMING CHART
VIDEO
SYNC
C
E
D
F
A
B
* No Composite Mode.
H 37.50 26.67 20.32 6.35 2.03 3.81 0.51
V 74.99 13.335 12.802 0.533 0.080 0.427 0.026
H + 46.88 21.33 16.16 5.17 1.62 3.23 0.32
V + 75.01 13.331 12.798 0.533 0.064 0.448 0.021
H + 53.68 18.63 14.22 4.41 1.14 2.70 0.57
V + 85.07 11.755 11.178 0.577 0.056 0.503 0.018
H + 68.677 14.561 10.836 3.725 1.016 2.201 0.508
V + 85.00 11.764 11.182 0.582 0.044 0.524 0.014
Mode
H/V
Sort
1
2
3
4
640x480
75Hz
800x600
85Hz
1024x768
85Hz
800x600
75Hz
<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... s), Vertical etc... (ms) >>
Sync
Polarity
Frequency
Total Period
(A)
Video Active
Time (B)
Sync Duration
(E)
Blanking Time
(C)
Back Porch
(F)
Front Porch
(D)
Resolution
