- 8 -

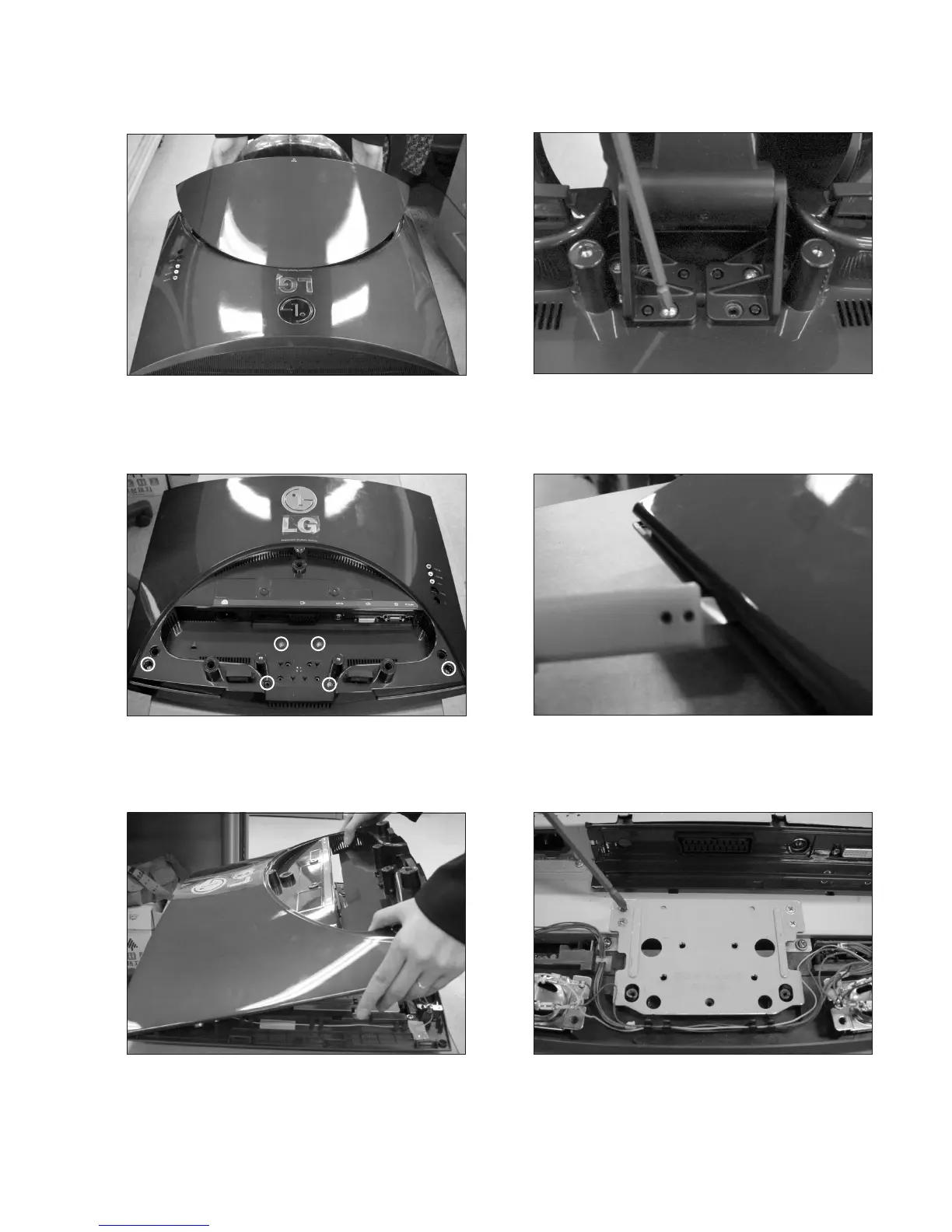

DISASSEMBLY
Disassembly Hinge Cover.
Open the Backcover's latch with Jig.
Disassemble back cover.
Remove the 4 screws of metal frame.
Remove the screws.
Remove the screws.
# 1
# 4
# 2
# 5
# 3
# 6
