ADJUSTMENT
Windows EDID V1.0 User Manual
Operating System: MS Windows 98, 2000, XP
Port Setup: Windows 98 => Don’t need setup
Windows 2000, XP => Need to Port Setup.
This program is available to LCD Monitor only.

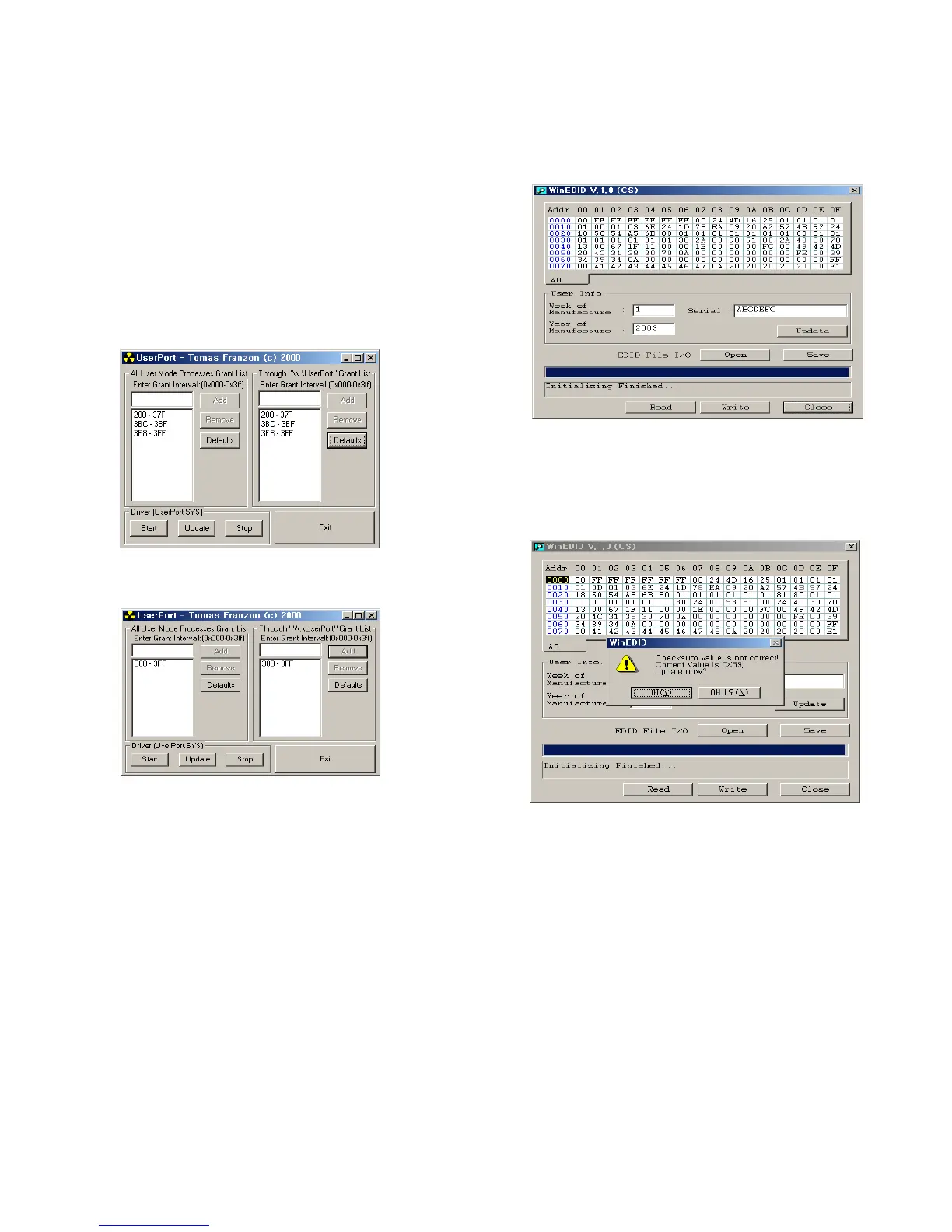

1. Port Setup
a) Copy “UserPort.sys” file to
“c:\WINNT\system32\drivers” folder
b) Run Userport.exe
c) Remove all default number
d) Add 300-3FF
e) Click Start button.
f) Click Exit button.
2. EDID Read & Write
1) Run WinEDID.exe
2) Edit Week of Manufacture, Year of Manufacture,
Serial Number
a) Input User Info Data
b) Click “Update” button
c) Click “ Write” button
EEPROM initialize : <COMMAND: 0xE4 0x00 0x00>
ADC adjustment(Black) : <COMMAND: 0xF1 0x00 0x00>
ADC adjustment(white) : <COMMAND: 0xF1 0x00 0x01>
AV Mode
ADC adjustment (Red) <COMMAND : 0x16 0x00 0x00(0x00~FF)>
ADC adjustment (Green) <COMMAND : 0x18 0x00 0x00(0x00~FF)>
ADC adjustment (Blue) <COMMAND : 0x1A 0x00 0x00(0x00~FF)>
Factory shipping condition
: <COMMAND: 0xE4 0x00 0x01> or Remotecontroller "MENU + 3 +0 +2 + 0"
=>SVC MENU => NVRAM initial => ON
Teletext language selection
: Remotecontroller "MENU + 3 +0 +2 + 0" or SVC Renote controller "INSTART" Key=>SVC MENU =>Teletext
Language => 0~16 (According to product spec or suffix)
