- 10 -

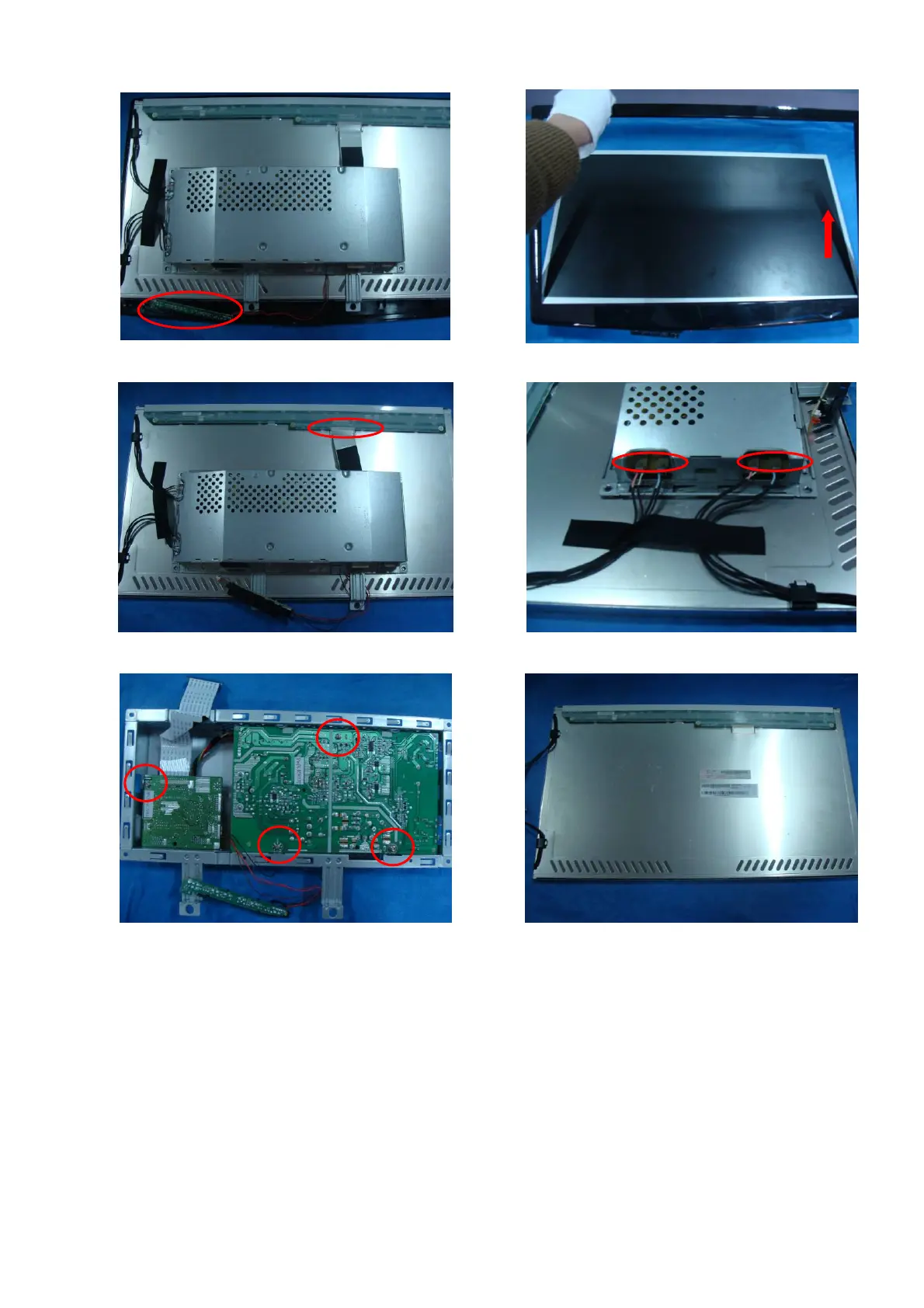

#7
Pull the key board out of bezel.
＃8
Disassembly the bezel.
#9
Disassembly the LVDS cable.
#10
Disassemble the connector.
#11
Main board and power board.
#12
The panel.
