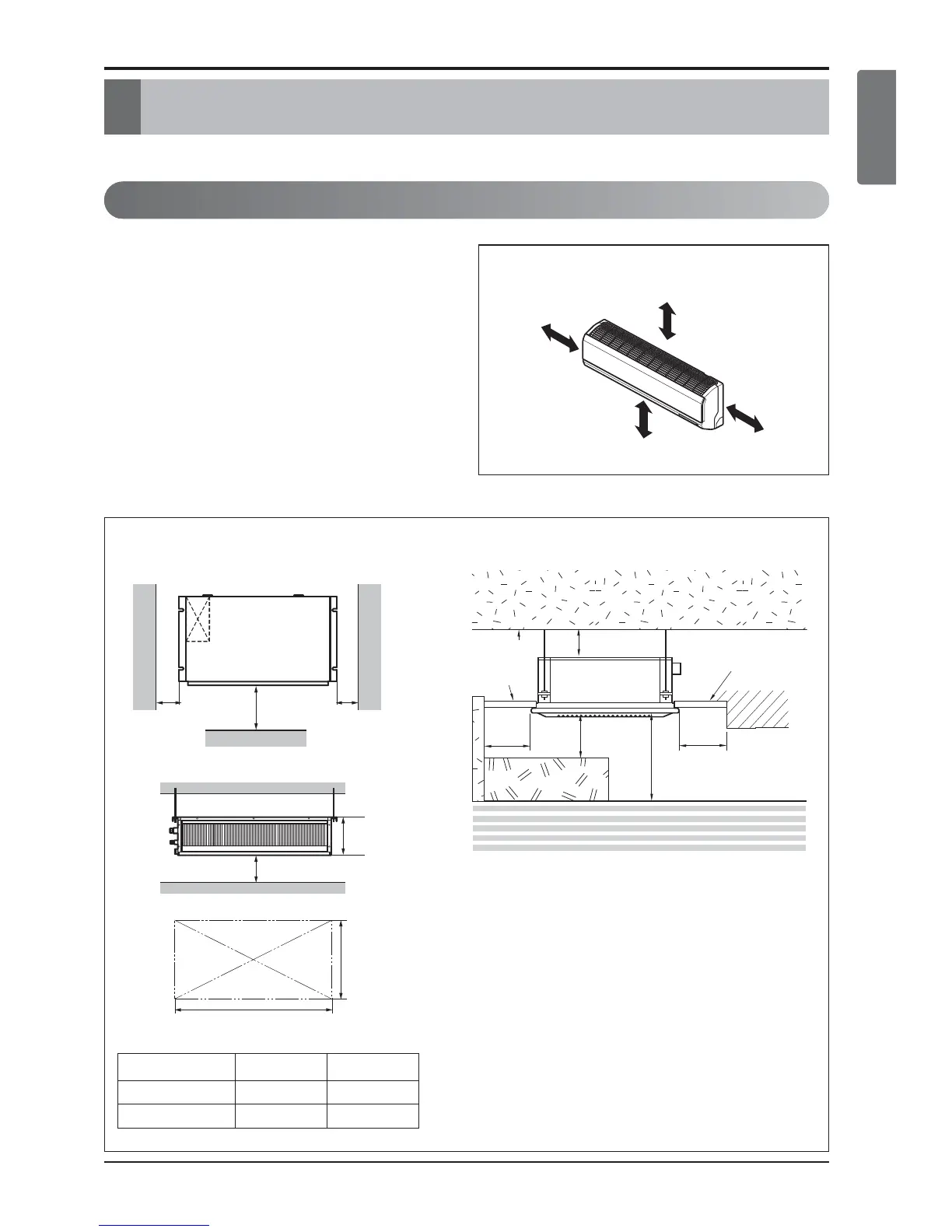

Installation of Indoor, Outdoor Unit
Installation of Indoor, Outdoor Unit
Read completely, then follow step by step.
Indoor unit
1. Do not have any heat or steam near the unit.
2. Select a place where there are no obstacles
in front of the unit.
3. Make sure that condensation drainage can be
conveniently routed away.
4. Do not install near a doorway.
5. Ensure the unit is unobstructed, allow proper
space on all sides according to the arrows
and distance measurements in the figures.
6. Use a Metal Detector or Metal Scanner to lo-
cate studs to prevent unnecessary damage to
the wall.
Select the best location
Top view
Front view
600(23 19/32)
600(23 19/32)
7 5/16
Front
1000(39 3/8)
H=13/16 or more
A
B
Capacity(Btu/h class) AB
9/12k 600(23 5/8) 900(35 15/32)
18k 600(23 5/8) 1100(43 5/16)
Unit:mm(inch)
Ceiling
False ceiling
False ceiling
20(13/16) or more
1500
(59 1/16)
or more
1500(59 1/16) or
more
Above 2500(98 7/16)
3300(129 15/16) or less
1500(59 1/16)or
more
Floor
[Ceiling Concealed Duct Type] [Ceiling Cassette Type]
More than 200(7 7/8)
More than
2300(90 9/16)
More than
100(3 15/16)
More than
100(3 15/16)
Unit:mm(inch)
[Standard/Standard Libero/Artcool Mirror/Artcool Libero Type]
