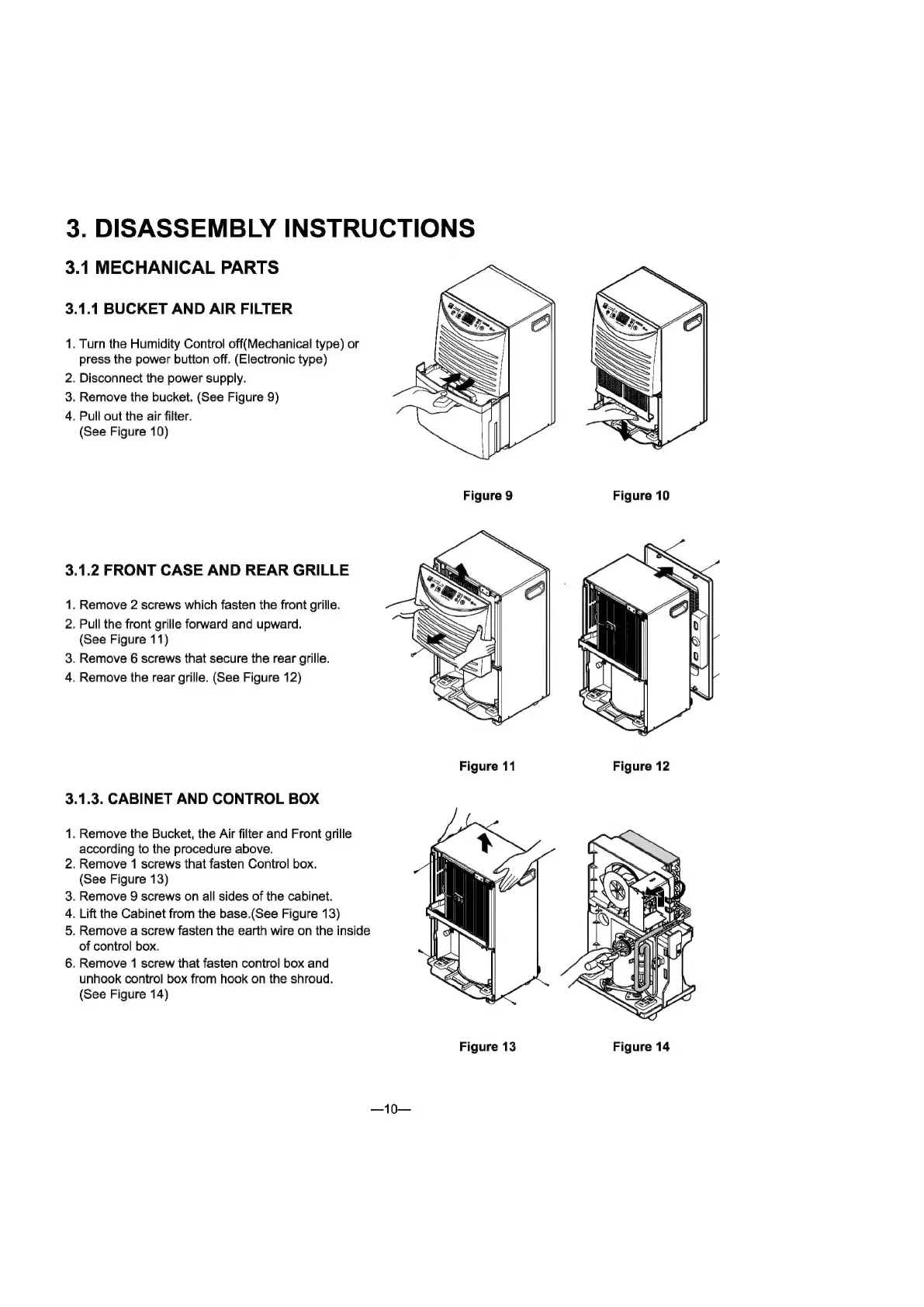

3. DISASSEMBLY INSTRUCTIONS
3.1 MECHANICAL PARTS
3.1.1 ВӘСКЕТ AND AIR FILTER
1.Turn the Humidity Control off(Mechanical type) or
press the power button off. (Electronic type)
2. Disconnect the power supply.
3. Remove the bucket. (See Figure 9)
4. Pull out the air filter.
(See Figure 10)
3.1.2 FRONT CASE AND REAR GRILLE
1. Remove 2 screws which fasten the front grille.
2. Pull the front grille forward and upward.
(See Figure 11)
3. Remove 6 screws that secure the rear grille.
4. Remove the rear grille. (See Figure 12)
Figure 11 Figure 12
3.1.3. CABINET AND CONTROL BOX
1. Remove the Bucket, the Air filter and Front grille
according to the procedure above.
2. Remove 1 screws that fasten Control box.
(See Figure 13)
3. Remove 9 screws on all sides of the cabinet.
4. Lift the Cabinet from the base.(See Figure 13)
5. Remove a screw fasten the earth wire on the inside
of control box.
6. Remove 1 screw that fasten control box and
unhook control box from hook on the shroud.
(See Figure 14)
Figure 13 Figure 14
