PLANNING THE INSTALLATION
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into
spaces between walls, crawl spaces, ceiling, attics or
garages.
All exhaust must be ducted to the outside, unless
using the recirculating option.
Use single wall rigid metal ductwork only.
Fasten all connections w/ sheet metal screws and
tape all joints with Silver Tape or Duct Tape.

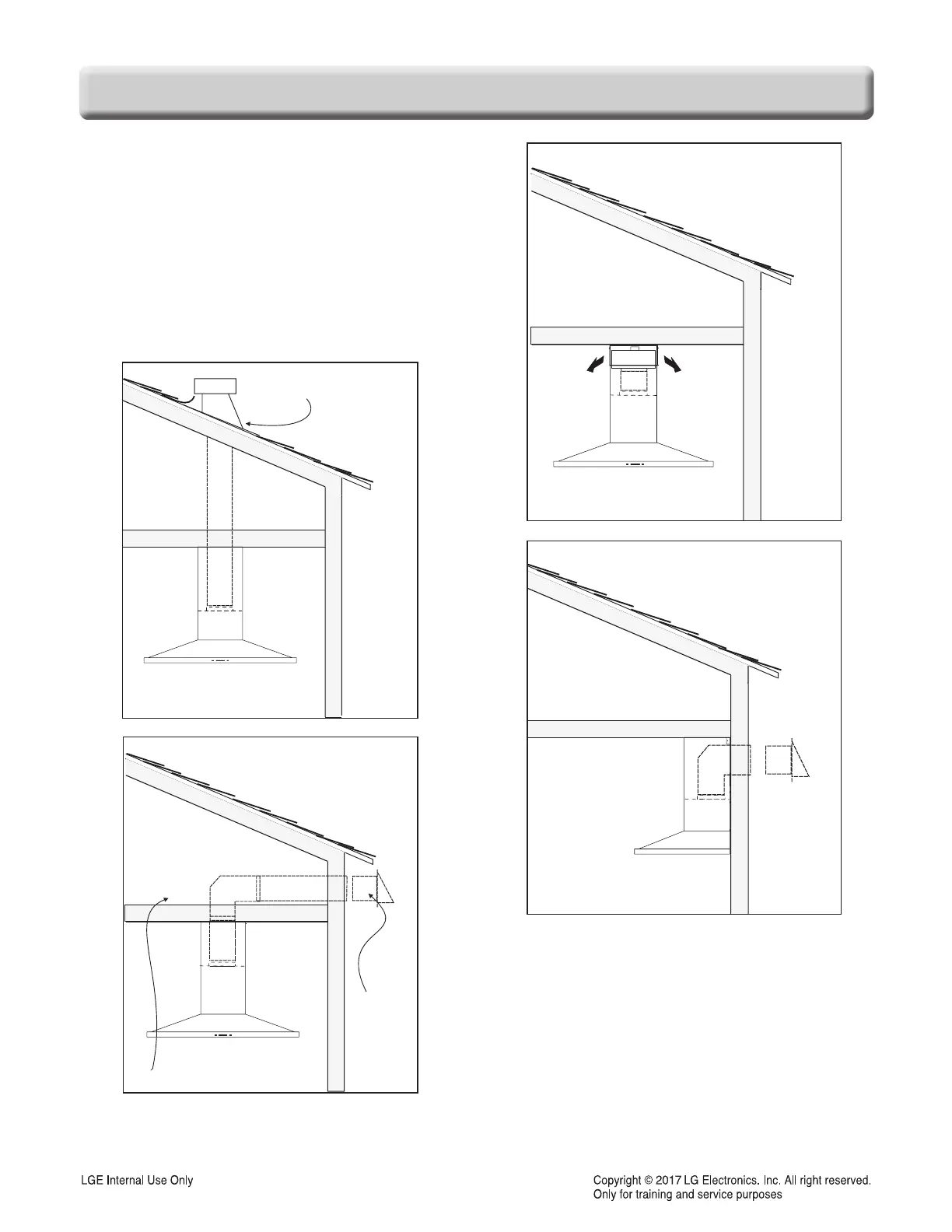

Some Ducting Options
Roof Pitch w/
Flashing & Cap
(blower
housing)
side wall cap
w/ gravity damper
Soffit or crawl space
(blower
housing)
ductless
recirculating
[QLM_ITTKIX
_OZI^Q\aLIUXMZ
(blower
housing)
(blower
housing)
Roof Pitch w/
Flashing & Cap
(blower
housing)
side wall cap
w/ gravity damper
Soffit or crawl space
(blower
housing)
ductless
recirculating
[QLM_ITTKIX
_OZI^Q\aLIUXMZ
(blower
housing)
(blower
housing)

LG HCED3615S Specifications

General

Color	stainless steel
Hood Type	wall
Venting Type	convertible
Temperature Sensor	no
Number of Fan Speeds	5
CFM	600 cubic feet per minute
Duct Diameter	6 inches
Filters	2
Sones	1 sones
Control Type	touch pad
Delay Start	yes
Interior Light	yes
Remote Control	no
Wi-Fi	wi-fi
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	22 1/16 inches
Height	48 1/2 inches
Width	35 7/16 inches
Net Weight	37 pounds
