-27-
COMPONENT REPLACEMENT
LED STRIP REMOVAL

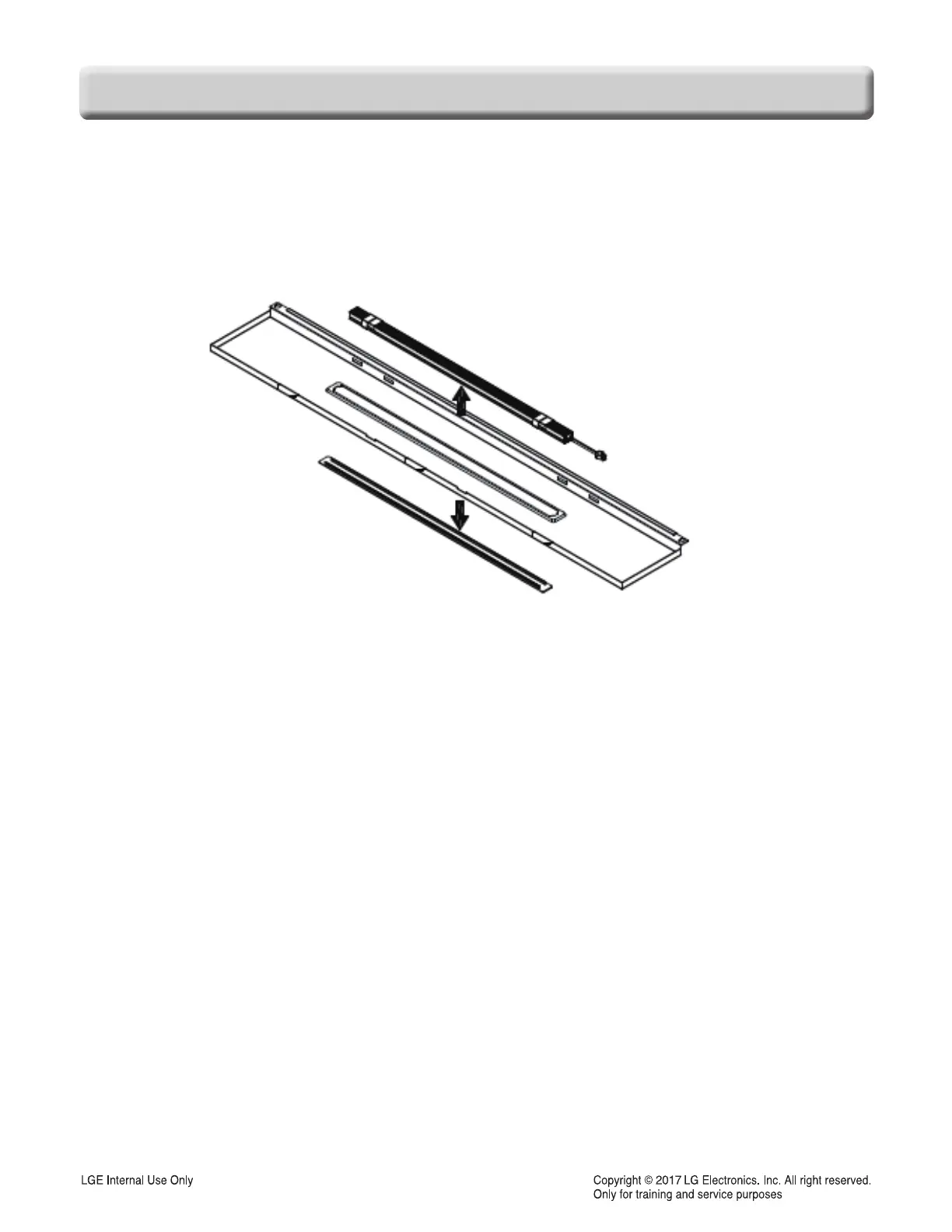

Step 1. Remove the mesh filter and light panel.
Step 2. Follow the below arrow direction to take out the cap of LED strip and push the LED strip toward inside
of light panel.
* Follow these steps in reverse to reassemble the part.
