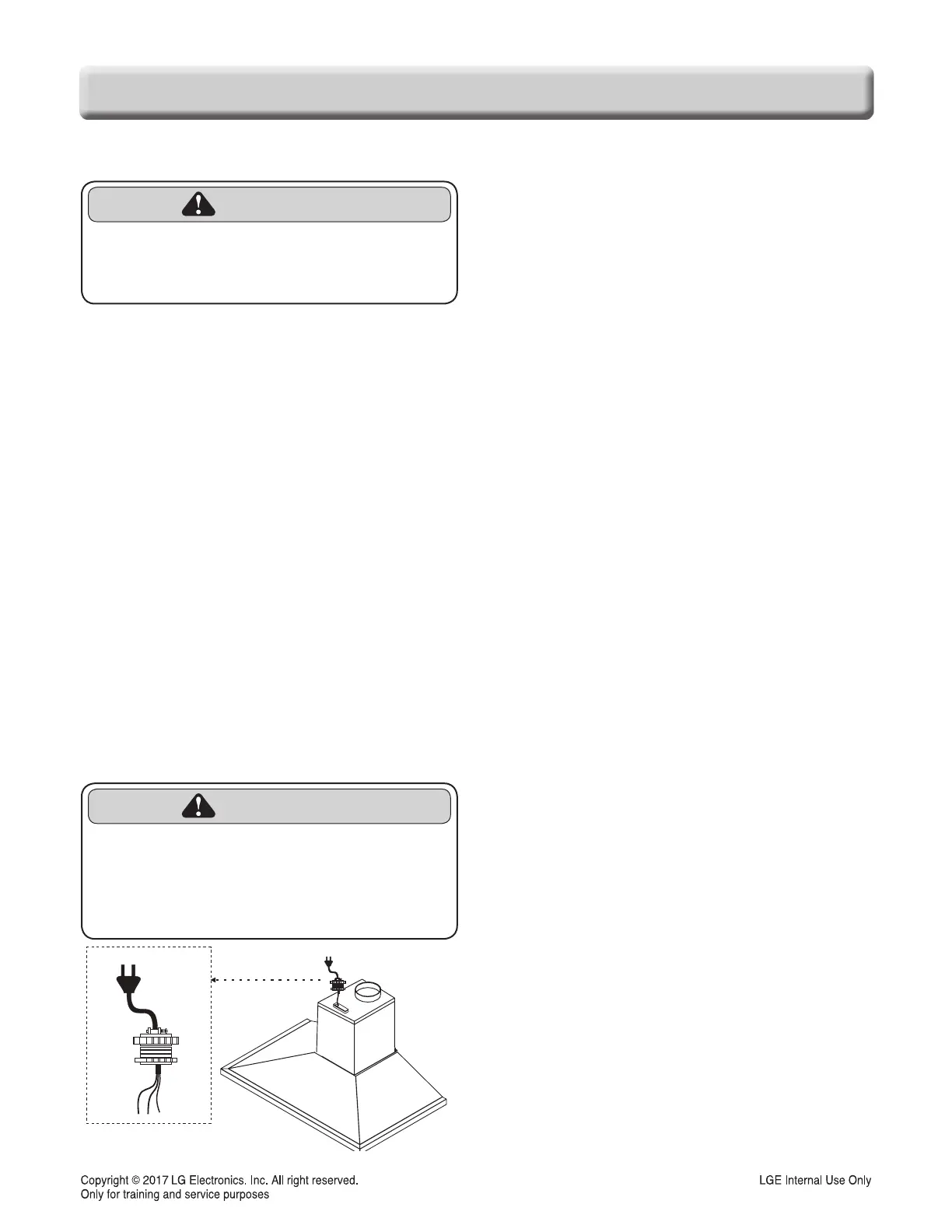

PLANNING THE INSTALLATION
ELECTRICAL
For personal safety, remove house fuse or open
circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this
appliance.
Follow national electrical codes or prevailing
local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical
supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20
ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer Electrical
Diagram labeled on product.
Cable Lock:
A cable locking connector (not supplied) might also
be required by local codes. Check with local
requirements and codes, purchase and install
appropriate connector if necessary.
Cable Lock
WARNING
All Electrical work must by performed by
qualified electrician or person with similar
technical know how and background.
WARNING
Electrical wiring must be done by a qualified
person(s) in accordance with all applicable
codes and standards. This range hood must
be properly grounded. Turn off electrical
power at service entrance before wiring.

LG HCED3615S Specifications

General

Color	stainless steel
Hood Type	wall
Venting Type	convertible
Temperature Sensor	no
Number of Fan Speeds	5
CFM	600 cubic feet per minute
Duct Diameter	6 inches
Filters	2
Sones	1 sones
Control Type	touch pad
Delay Start	yes
Interior Light	yes
Remote Control	no
Wi-Fi	wi-fi
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	22 1/16 inches
Height	48 1/2 inches
Width	35 7/16 inches
Net Weight	37 pounds
