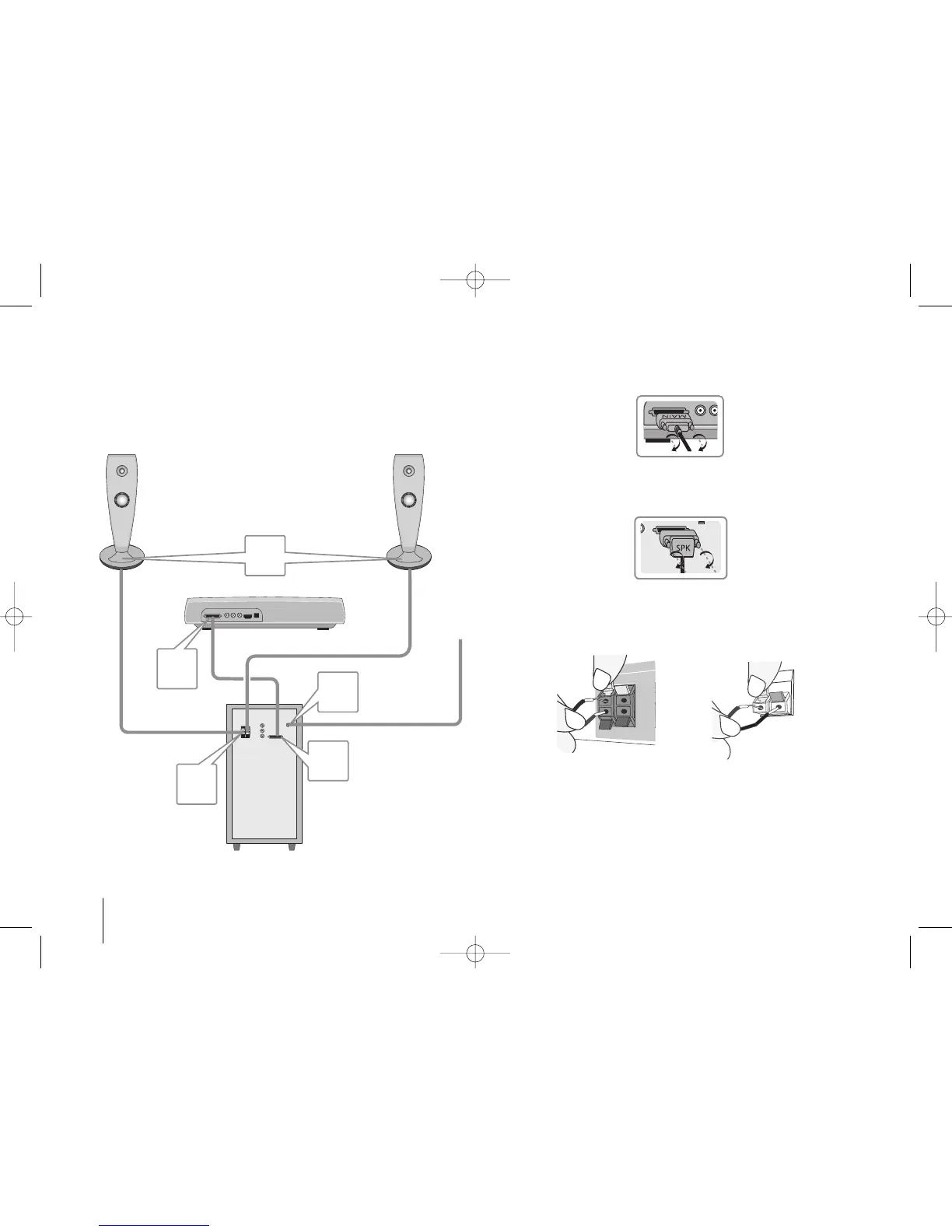

Connecting the main unit, speakers, and FM
antenna to the active subwoofer.
a Connect the system jack marked MAIN to the main unit (SYSTEM).
Secure the jack by tightening the two screws.
b Connect the system jack marked SPK to the active subwoofer (SYSTEM).
Secure the jack by tightening the two screws.
cd Connect the speakers to the active subwoofer (SPEAKERS).
Connect the red end of each wire to the terminals marked+ (plus) and
black end to the terminals maked - (minus).
Active subwoofer The bottom of the speaker
e Connect the FM antenna for listening to the radio.
• Be sure to fully extend the FM antenna.
• After connecting the FM antenna, keep it as horizontal as possible.
c
a
e
b
d
Making system connections
Front speaker (R)
Front speaker (L)
6
